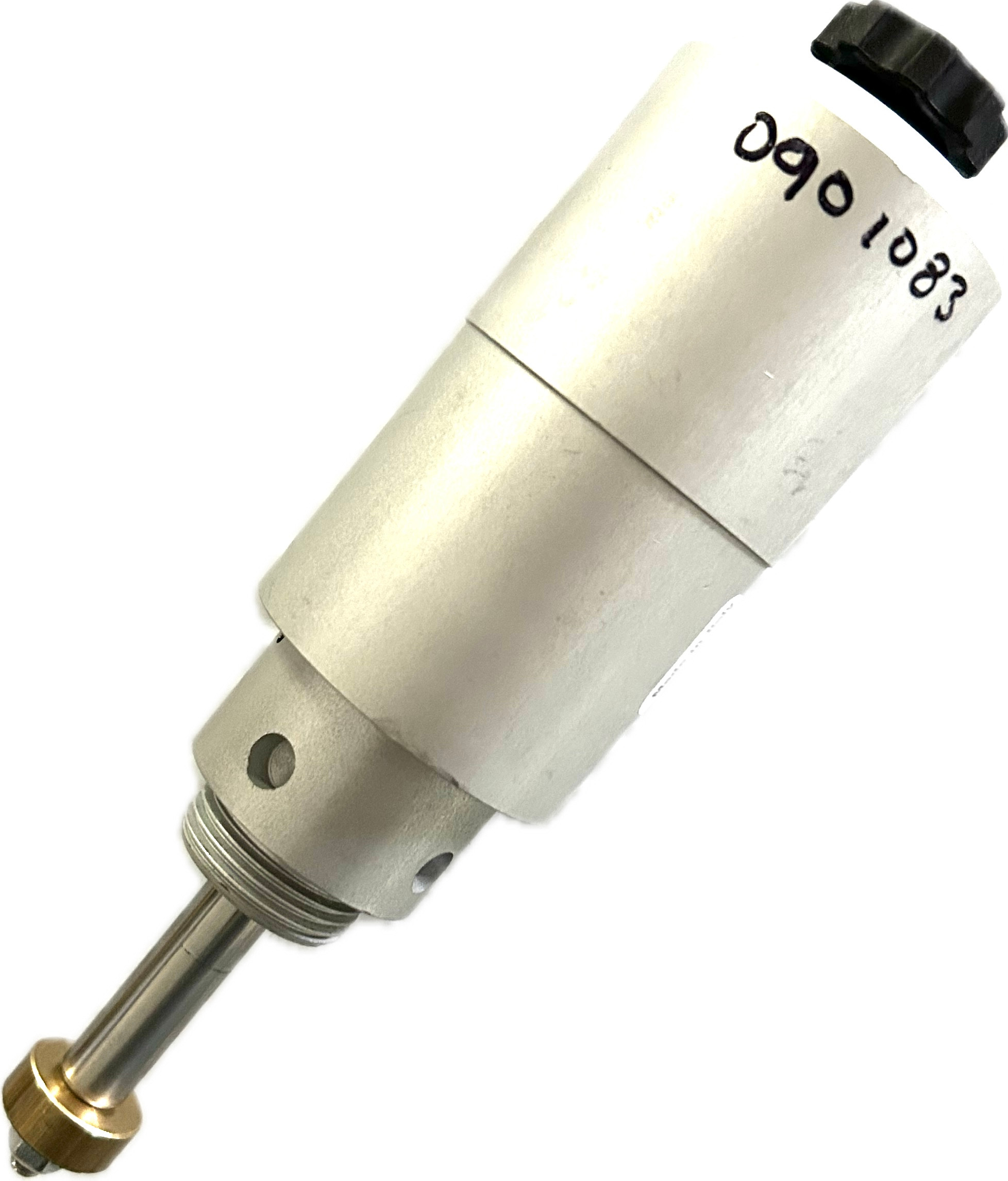

This Rovel 1/2 inch normally closed air-operated valve, part 0901083, is used as a pneumatic and fluid-control valve on compatible FMB / Firbimatic, Union, and Realstar dry cleaning machines.
The valve is a single-acting normally closed gate-style valve. In the rest position the valve remains closed; when actuated by air pressure it opens to allow the machine circuit to flow.
The product label identifies the component as VALVOLA VATAL 130 1/2", Cod. 1616, Comm. n° 255999, Made in Italy. Use this listing when the installed valve, machine manual, and service records match FMB / Firbimatic 0901083, Union PU0901083, or Realstar 0901083.
Technical Specifications
Component type: 1/2 inch normally closed air-operated gate valve / pneumatic-fluid control valve.
Brand / manufacturer marking: Rovel.
Product label description: VALVOLA VATAL 130 1/2".
Product label code: Cod. 1616.
Product label commission/order marking: Comm. n° 255999.
Barcode / label code: 1616255999. This is a 10-digit label barcode and is recorded as a barcode/reference code, not as a verified standard GTIN.
Country of origin label: Made in Italy.
Additional label marking: 93.
Primary function: valve stays closed in the rest position and opens when actuated by compressed air.
Valve family: single-acting normally closed gate-valve family.
Nominal port size: 1/2 inch. Verify installed thread, fittings, actuator orientation, and valve body before ordering.
Threading reference: GAS cylindrical 55 degrees UNI-ISO 228, where applicable to the installed valve body.
Actuator type: single acting, normally closed.
Actuator working pressure reference: minimum 5 bar, maximum 10 bar.
Room temperature reference: 0 degrees C to 100 degrees C maximum.
Shutter style: plates on conical seat.
Material references: anodized aluminum 2011 alloy cylinder, AISI 303 stainless shaft, OT-58 brass valve body and shutter, and NBR sealing/contact material.
Installation notes: avoid excessive thread stress, use proper thread sealing, lubricate through the pneumatic system, avoid knob-down mounting, and inspect seals/O-rings through the safety hole after heavy operating cycles.
Size-specific dimensions must be verified from the installed part.
Part Numbers & Cross References
Use this section to separate direct brand part numbers from cross-reference and legacy references. Always verify the installed valve, port size, actuator configuration, fittings, machine model, and service manual before ordering.
Part Numbers
FMB / Firbimatic
0901083
221966
Union
PU0901083
Realstar
0901083
Rovel Component Marking
VALVOLA VATAL 130 1/2"
Cod. 1616
Comm. n° 255999
Barcode / label code 1616255999
Cross References
FMB / Firbimatic
Legacy reference: COD 11012.
Legacy reference: COD 1868.
Commercial reference: COMM 221966.
Union
FMB / Firbimatic cross-reference: 0901083.
Old / legacy reference: V18003 appears in Union/Firbimatic cross-reference evidence for this valve path.
Realstar
FMB / Firbimatic cross-reference: 0901083.
Union cross-reference: PU0901083.
Realstar application note: verify against the installed valve, Realstar machine model, manual table, and shared FMB / Union / Realstar lineage before ordering.
Rovel
Label match: VALVOLA VATAL 130 1/2", Cod. 1616, Comm. n° 255999, barcode / label code 1616255999.
Related Valve Family References
0901080 and 0901165 appear in nearby 1/2 inch N.C. valve family evidence. Treat them as related-family verification references, not automatic substitutes.
Machine Fitment
Machine fitment for 1/2 in NC Air Operated Valve | FMB 0901083 / Union PU0901083 / Realstar 0901083 is organized through Corbett Equipment master manufacturer and model-lineage evidence. Use this section as a fitment-reference map, then verify the installed component, machine data plate, service manual, dimensions, voltage or pressure ratings where applicable, mounting, fittings, and part-number path before ordering.
Master manufacturer / model lineage
Corbett Equipment and FXT Factory records treat FMB / Firbimatic as the master machine-model lineage for this catalog family. Union, Realstar, and Sovrana references are derivative-reference families that must be matched through the installed component, manual table, and machine-specific service record.
FMB / Firbimatic machine models and master families
EcoPro / ECOPRO family: ECOPRO 915, ECOPRO 915S, ECOPRO 918, ECOPRO 918S, ECOPRO AM, ECOPRO AM918.
Saver family: SAVER 35, SAVER 350, SAVER 35P, SAVER 350P, SAVER 40, SAVER 40P, SAVER 80SM, SAVER HYDROCARBON.
F-series / 18 kg family: F AS 18 LT2, F AS 18 ST2, F18 LT2, F18 LT3, F18 ST2.
EcoGreen family: EcoGreen 35, EcoGreen 40 / L2118, EcoGreen 50 / L2120, EcoGreen 60 / L2125, EcoGreen 80 / L2132, EcoGreen 95, EcoGreen 95SM, EcoGreen DC, EcoGreen S50 / S2120, EcoGreen Advance.
EcoGreen SM / AM-prefix soft-mount family: AM918, AM925, AM940, AM2118, S2118, EcoGreen 40SM, EcoGreen 60SM, EcoPro 40SM, EcoPro 60SM.
EcoLine family: EcoLine 35, ECOLINE, ECOLINE 16.
Vortex family: VORTEX 40, VORTEX 50, VORTEX 80, VORTEX 95, VORTEX L2018, VORTEX S2018, VORTEX PRIMARY, Vortex 40 Plus, Vortex 50 Plus, Vortex 80 Plus, Vortex 50 Plus Tandem.
Axial family: AXIAL 40, AXIAL 918, AXIAL 925, AXIAL-918.
System and feature lineage: Hydro-Vac, Hydro-Chill, Tri-Flow, Smart-10, SecureLock, and related recovery, filtration, distillation, cooling, and control-system records.
Other recovered FMB reference families: Eco-15LT3, Eco-15LT-3, L 18, L-250, L750, L2118, P16, P1567, P1705, P6241, T1838.
Recovered numeric model set: 035, 05, 068, 08, 09, 10, 100, 12, 120, 13, 130, 14, 15, 153, 16, 20, 208, 220, 23, 24, 25, 30, 306, 310, 32, 338, 340, 35, 36, 37, 40, 410, 45, 465, 473, 50, 520, 60, 600, 63, 70, 71, 724, 765, 80, 895, 896, 918, 95.
Factory/model-code references observed in recovered Corbett lineage records: HC7-18-CL, HC7-18-CLM, HC7-18-CS, HC8-18-CL, HC8-18-CLM, HC8-18-CS.
Union machine models and derivative families
Core Union derivative references: HXP8018C, L840, P840.
HL / HP / HXL family references: HL-780, HL780, HL-840, HL840K, HP840K, HXL8018K, HL-850, HL850K, HP850K, HL-860, HL860K, HP860K, HXL8025K, HL-880, HL880K, HXL8032K, HL-890, HL890K.
L / RS family references: L740S, L740, HL740, L750, RS-102, RS-122, RS-152.
Verify Union fitment by matching the installed part, Union manual table, FMB / Firbimatic master-model relationship, connection details, and service location.
Realstar machine models and derivative families
KM / KT derivative references: KM315, KM315-K4, KT215, KT215-K4, KM343, KM343-K4, KT343, KT343-K4.
Larger KM / KT references: KM403, KM403-K4, KT403, KT403-K4, KM503, KM503-K4, KT503, KM703, KM703-K4, KM803, KM803-K4.
RKM references: KM-36 / RKM36, KM-340 / RKM340, KM-400 / RKM400.
Verify Realstar fitment by matching the installed part, Realstar manual table, FMB / Firbimatic master-model relationship, connection details, and service location.
Sovrana and other derivative references
Sovrana and other derivative-model references may appear in Corbett lineage records. Treat them as research clues only unless the installed component, machine manual, and part-number path confirm the application.
Ordering Verification
Confirm the installed valve is a 1/2 inch normally closed air-operated valve before ordering.
Match the part number path against FMB / Firbimatic 0901083 or 221966, Union PU0901083, Realstar 0901083, and legacy references such as COD 11012, COD 1868, COMM 221966, or V18003.
Compare the physical valve body, port size, thread/fitting arrangement, actuator and knob configuration, pneumatic air supply, machine model, and service manual before replacing the part.
Contact Corbett Equipment if you need help matching the valve to a FMB / Firbimatic, Union, Realstar, or related FMB-lineage dry cleaning machine.
