FMB / Firbimatic 0807011 is the short, straight water-discharge sensor probe used in compatible FMB / Firbimatic, Union, and Realstar dry-cleaning machine separator systems.
The probe senses liquid level for the separator discharge control function. This listing includes one short probe only.
Use this listing when the installed probe shape, threads, terminal, separator arrangement, machine model, and service information match 0807011.
Technical Specifications
Component type: short, straight water-discharge separator sensor probe.
Function: senses liquid level for the separator water-discharge control function.
Configuration: threaded metal probe with electrical terminal.

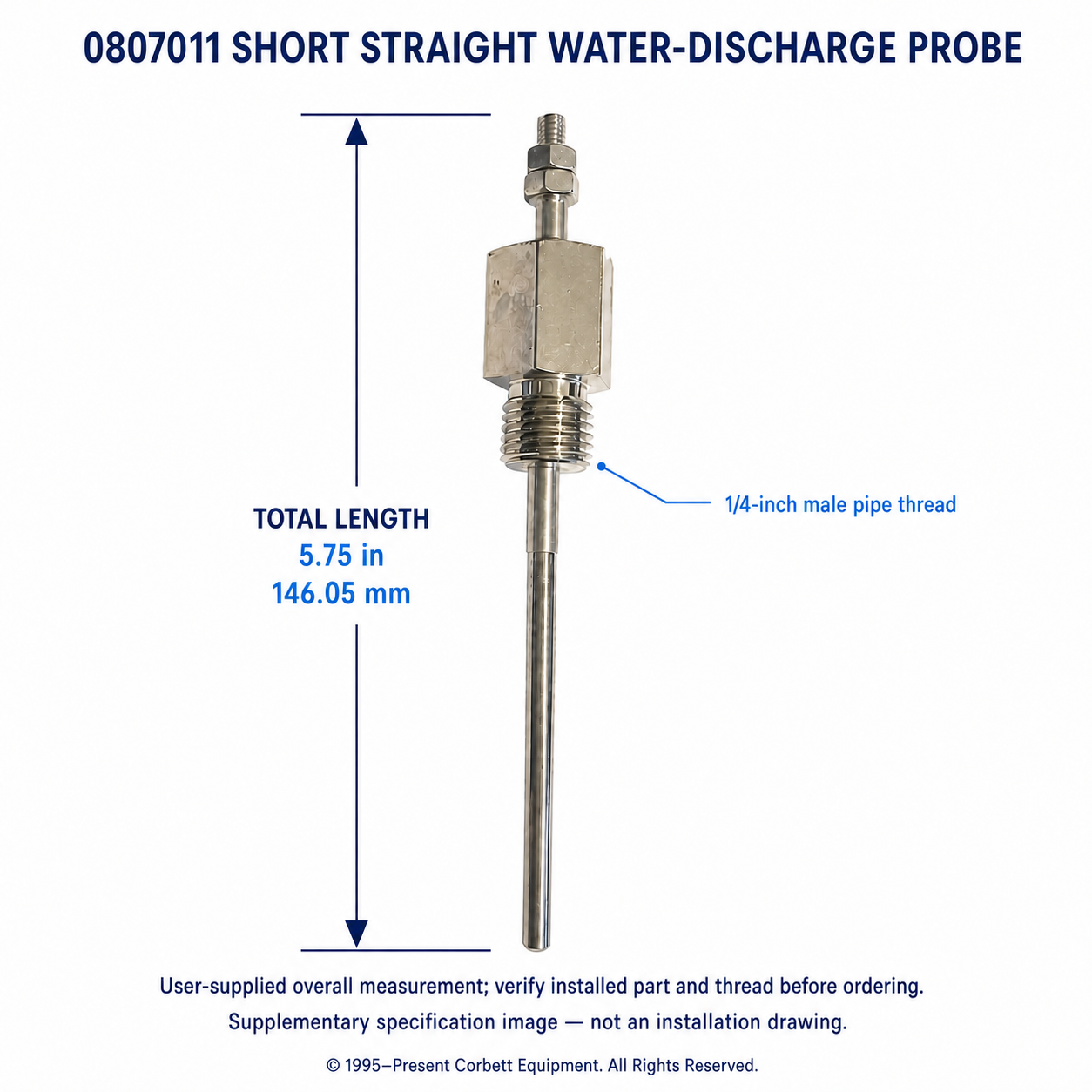

Overall length: 5.75 in (146.05 mm), top to bottom. Mounting thread: 1/4-inch male pipe thread. Verify the installed part before ordering.
Included: one 0807011 short probe only.
Installation and testing should be performed by qualified service personnel.

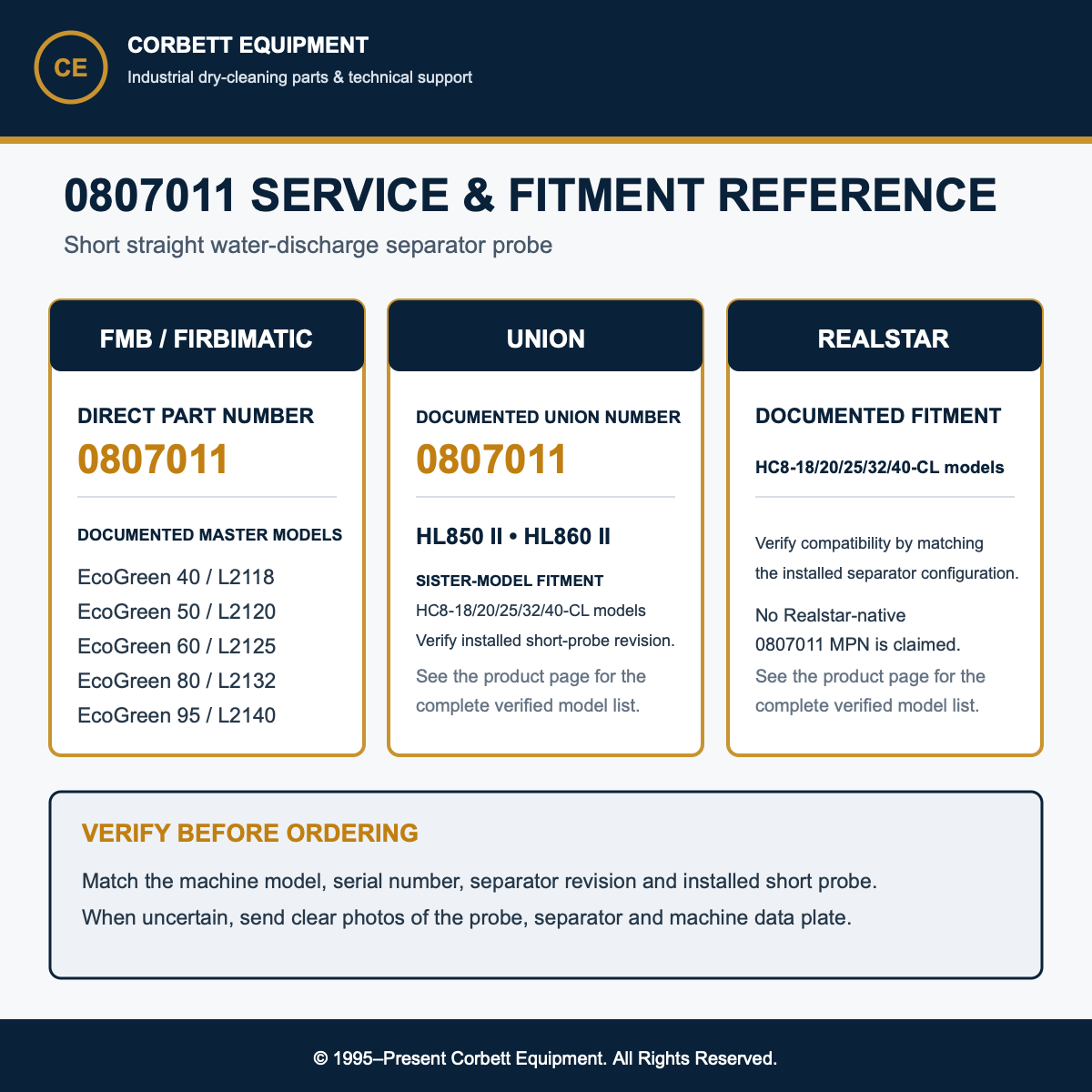

Part Numbers & Cross References
Direct part numbers and related legacy components are separated below. Verify the installed component and service manual before ordering.
Part Numbers
FMB / Firbimatic
0807011
Union
0807011 — documented Union number for HL850 II and HL860 II.
Cross References
0322019 is a different older cabled / black-head water switch and is not included.
The S / Petite long-probe configuration is different and is not included in this listing.
Machine Fitment

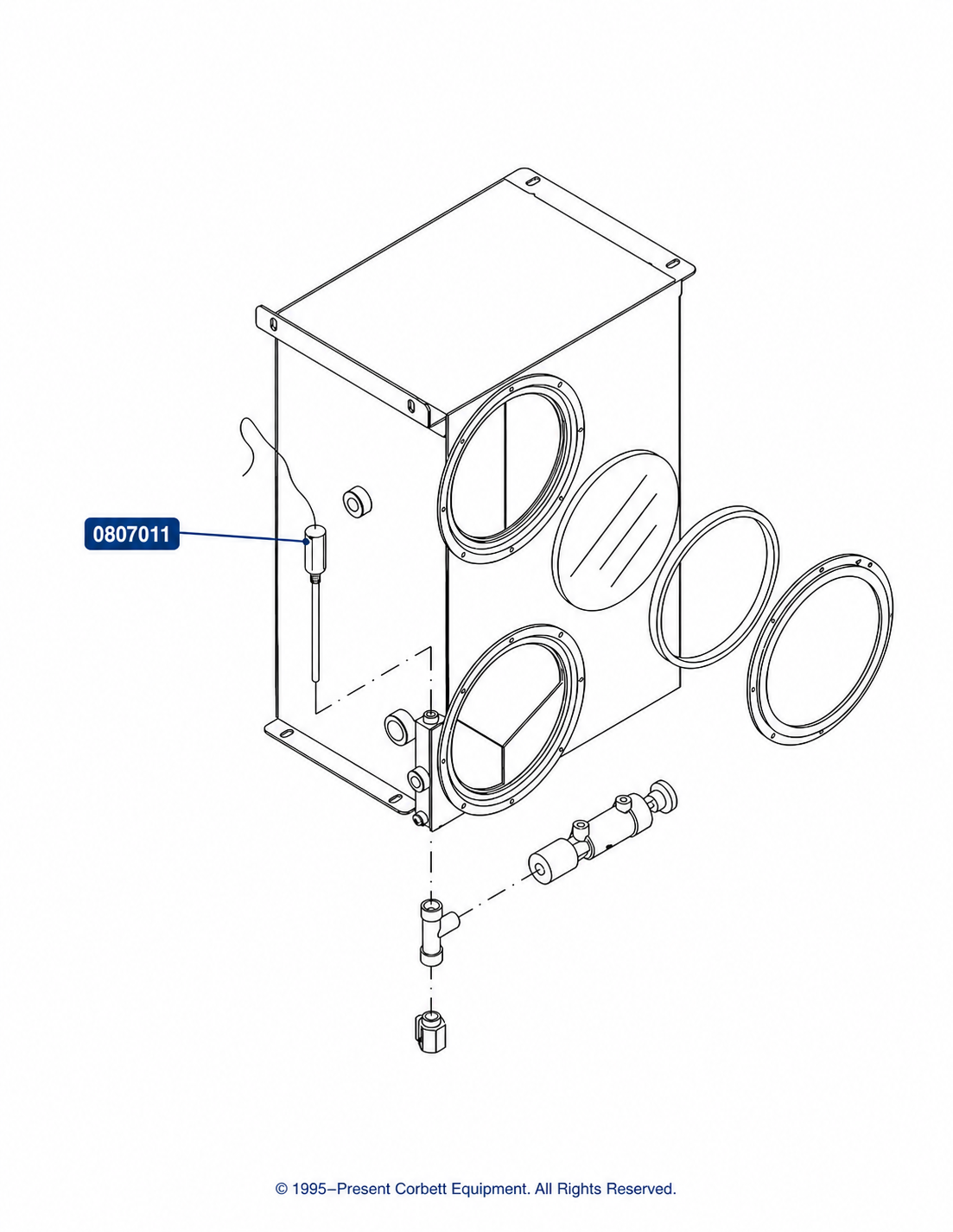

Short, straight 0807011 probe fitment starts with the documented FMB / Firbimatic mother-manufacturer models below, then follows only the matching EcoGreen configuration lineage to the listed Union and Realstar sister models. Verify the installed short-probe separator revision before ordering.
FMB / Firbimatic Models
EcoGreen 40 / L2118; EcoGreen 50 / L2120; EcoGreen 60 / L2125; EcoGreen 80 / L2132; EcoGreen 95 / L2140.
Later or installed 0807011 short-probe separator configuration only. Earlier EcoGreen drawings show the different 0322019 cabled probe; confirm the installed part and separator revision.
Union Models
HC8-18: HL840; HL840-K; HP840; HP840-K.
HC8-20: HL850; HL850-K; HP850; HP850-K.
HC8-25: HL860; HL860-K; HP860; HP860-K.
HC8-32/40: HL880; HL880-K; HL890; HL890-K.
Direct manual applications: HL850 II and HL860 II with the RC0762_B short-probe separator. Other retained HL / HP / K labels require the matching later short-probe configuration and installed-part verification.
Realstar Models
HC8-18: KM-K218; KM-K318; KM343; KM343-K4; KT343; KT343-K4.
HC8-20: KM403; KM403-K4; KT403.
HC8-25: KM-K225; KM-K325; KM503; KM503-K4; KT503.
HC8-32/40: KM703; KM703-K4; KM803; KM803-K4.
Part-number boundary: 0807011 is the FMB / Firbimatic part number. The Union and Realstar names above are configuration-qualified sister-model fitment; no Realstar-issued 0807011 number is claimed.
Configuration Exclusions
Not for earlier HL850 or HL860 separator configurations using 031508, 0807002, or 0322019.
Nova is not an EcoGreen sister-model connection and is excluded. Vortex uses a different separator probe line.
Not for Cloud, HLM / soft-mount, HXL / HXP, P / L, XP / XL, Atmos, HSK, KM / KT-C, M / T, R-series, Vision, S / Petite, AM, long-probe, or 0807026 curved-probe configurations.
Verify the exact model suffix, separator drawing and configuration, installed probe shape, part number, and serial or revision before ordering.
Ordering Verification
Verify part number 0807011, probe length and shape, mounting threads, electrical terminal, separator location, machine model, and serial number.
If uncertain, send Corbett Equipment clear photos of the installed probe, separator, and machine data plate before ordering.
