Reman. Diaphragm Vacuum Pump | FMB 0719015/Union PU0719015/RS 0719015

Remanufactured diaphragm vacuum pump 0719015 for FMB / Firbimatic, Union, and Realstar dry-cleaning machine distillation systems. This vacuum pump is used in the machine distillation circuit to create the vacuum needed for proper distillation and solvent recovery. Vacuum leaks, worn vacuum seals, incorrect pump configuration, or a weak pump/motor assembly can reduce recovery rate, make the system work harder, and eventually lead to pump or motor failure.

Back to catalog

In stock Available in Wix Stores

Product image viewer

Image 1 of 5

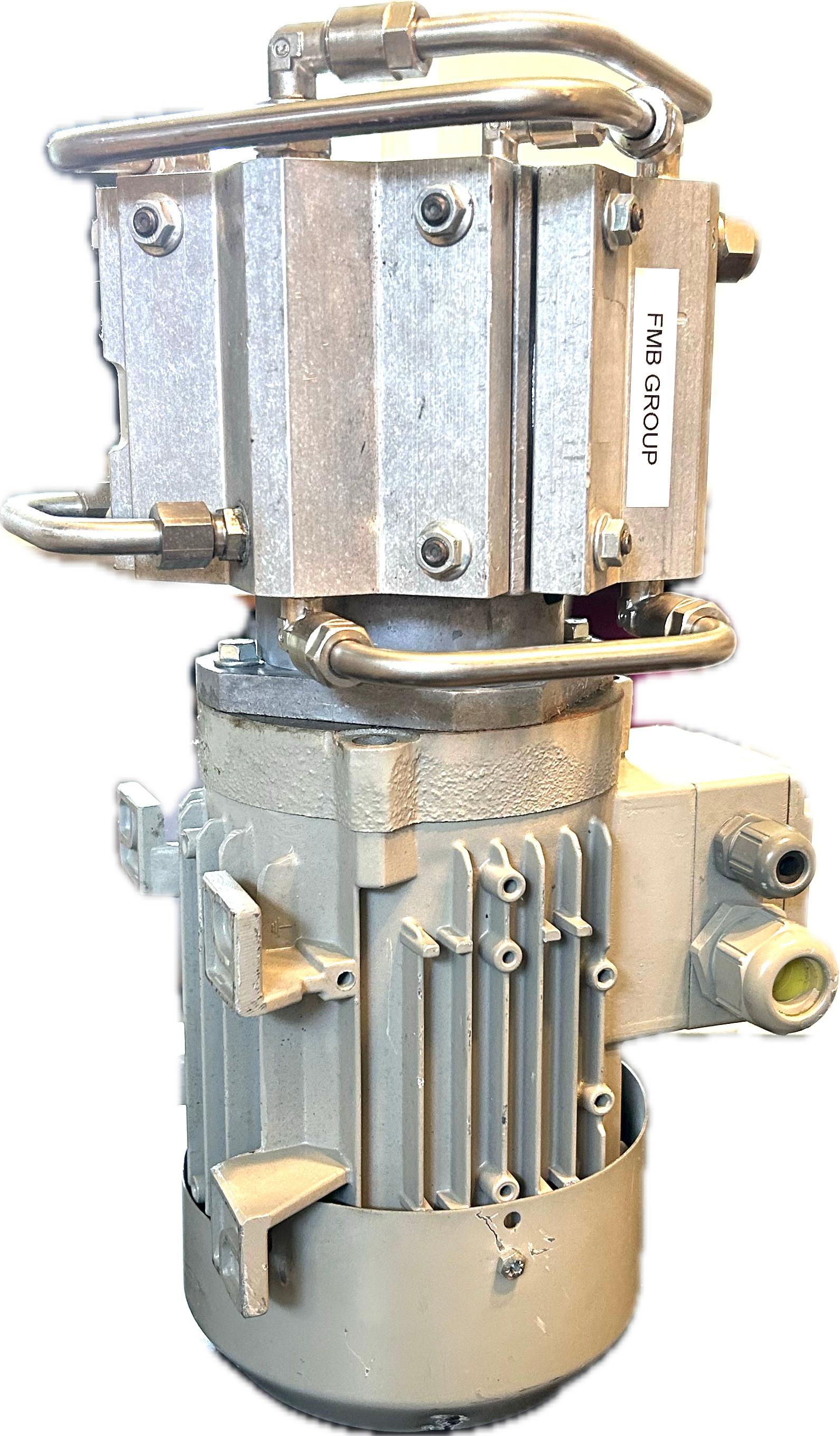

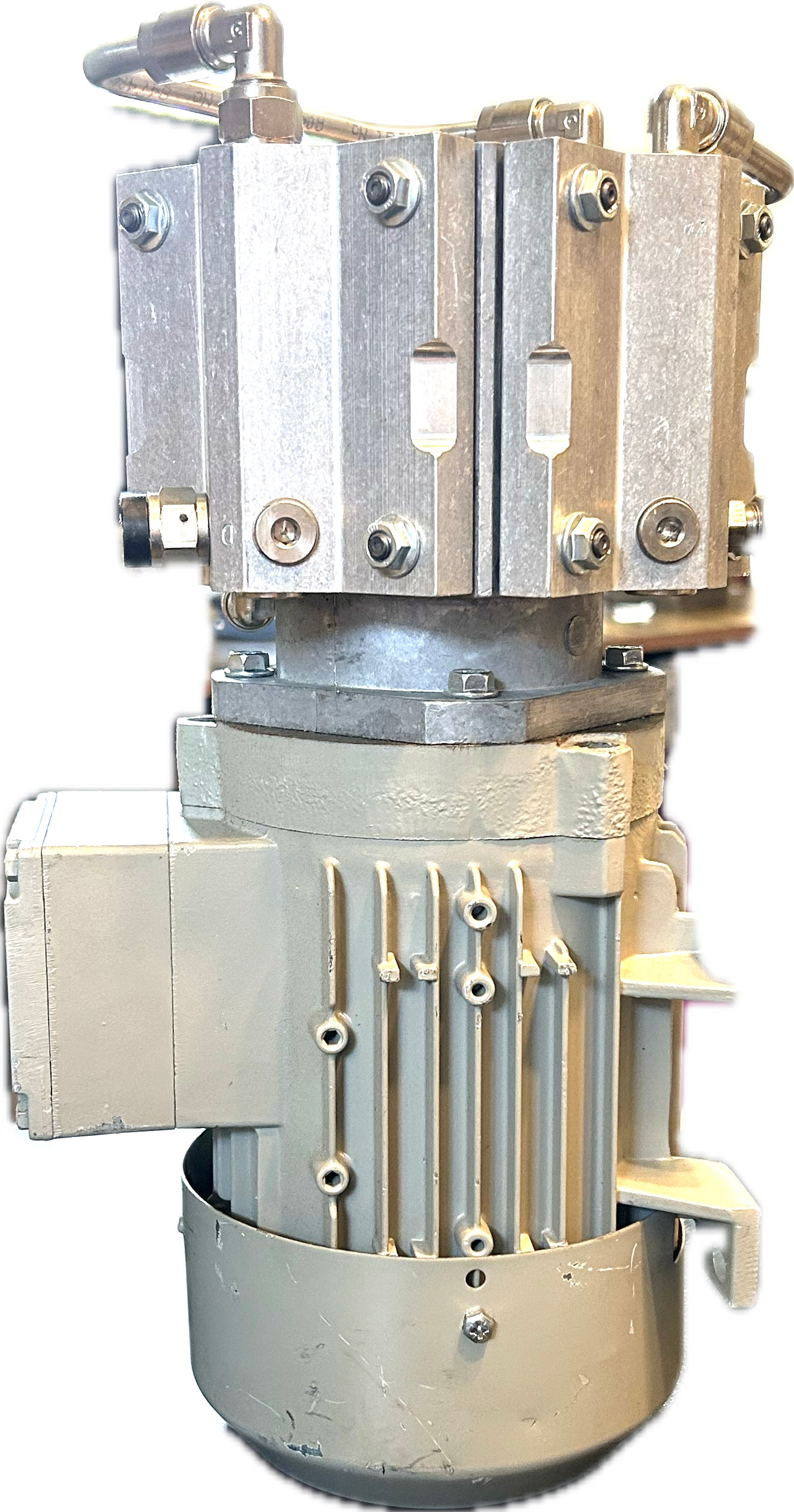

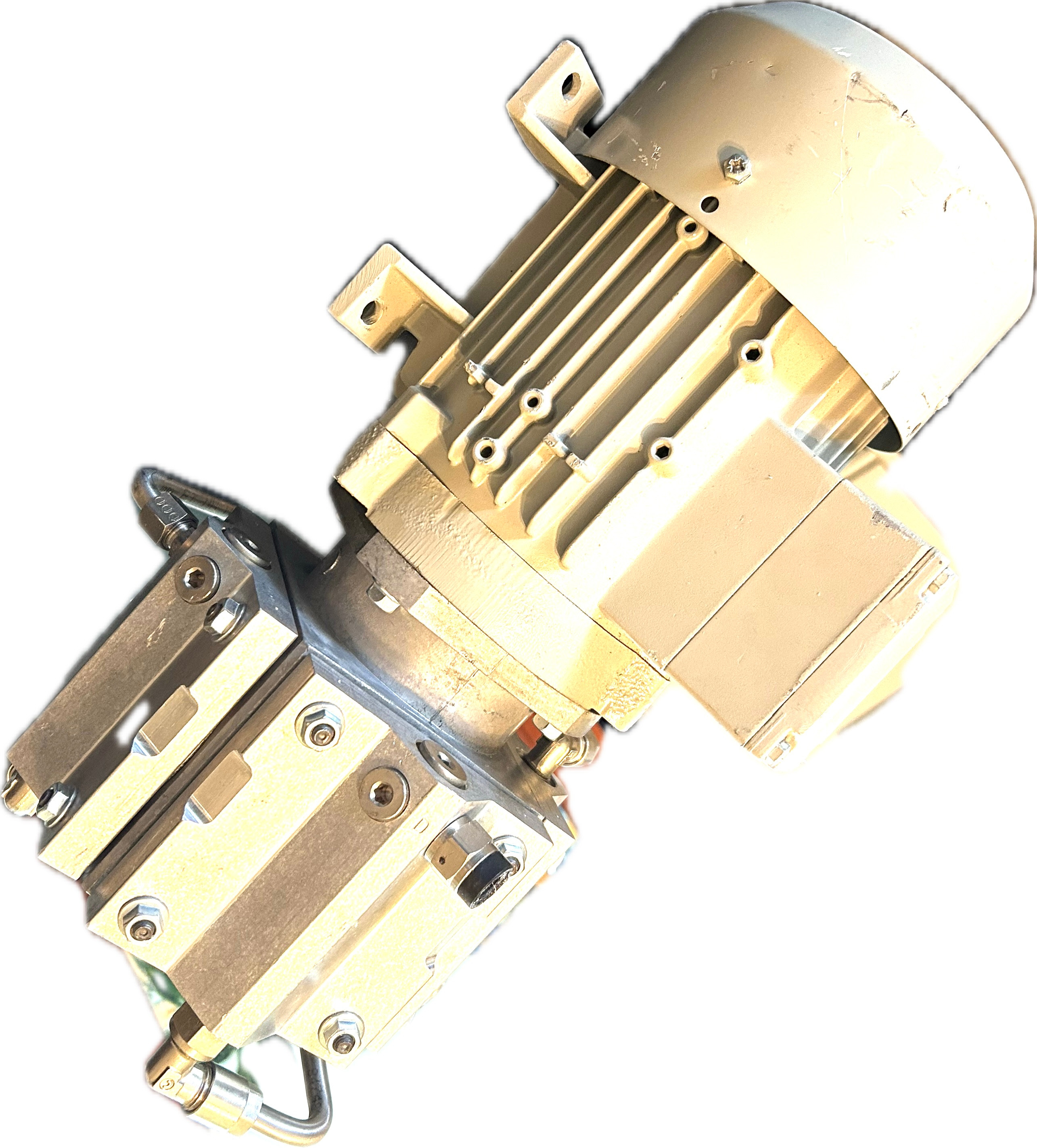

0719015 Reman. Diaphragm Vacuum Pump | FMB 0719015/Union PU0719015/RS 0719015 primary product photo for dry cleaning machine service
0719015 Reman. Diaphragm Vacuum Pump | FMB 0719015/Union PU0719015/RS 0719015 primary product photo for dry cleaning machine service

Status

Available in Wix Stores

Availability

In stock

System / Type

Pumps / vacuum / Motor / pump

Fitment

Firbimatic / FMB, Union, Realstar

Quote Basis

$1,500.00

Technical listing

Description, specifications, cross references, and fitment

Remanufactured diaphragm vacuum pump 0719015 for FMB / Firbimatic, Union, and Realstar dry-cleaning machine distillation systems.

This vacuum pump is used in the machine distillation circuit to create the vacuum needed for proper distillation and solvent recovery. Vacuum leaks, worn vacuum seals, incorrect pump configuration, or a weak pump/motor assembly can reduce recovery rate, make the system work harder, and eventually lead to pump or motor failure.

Use this listing when the installed pump, motor plate, machine manual, and service records match the FMB / Firbimatic, Union, or Realstar references below. Before ordering, compare the part numbers, motor voltage/phase/frequency, pump plate, mounting, plumbing orientation, and machine model.

Technical Specifications

Remanufactured air-cooled diaphragm vacuum pump assembly for dry cleaning machine service applications. Verify fitment against the installed component, machine data plate, and service manual before ordering.

  • Manual-backed FMB / Firbimatic reference: 0719015; vacuum pump PAV71S400; 0.37 kW; 50/60 Hz; air-cooled.

  • Observed pump-head marking from supplied photo: hyco ML-348-D37-SA; type P-173/2; Trumpf Id.-Nr. 352561.

  • Observed motor marking from supplied photo: hyco 3-phase motor; Type 7AA71M-4 B34; IP55; IEC 38 / EN 60034.

  • Motor rating: 0.37/0.43 kW, approximately 1/2 HP class; S1 duty; insulation class F.

  • Speed: 1370/1670 1/min for 50/60 Hz operation.

  • Voltage: 230/400V delta/wye at 50 Hz; 460V wye at 60 Hz.

  • Current: 1.78/1.03A at 50 Hz; 1.02A at 60 Hz.

  • Power factor: cos phi 0.80/0.78.

  • Motor manufacturer reference: made by Siemens/CZ; Type 1LA7; UL File No. E227216.

  • Direction arrow is present on the motor housing. Confirm rotation, voltage, phase, mounting, pump-head marking, and plumbing orientation before ordering.

  • Observed pump serial field is present but not used for fitment confirmation because the handwritten marking is not legible from the supplied photo.

Part Numbers & Cross References

Use this section to separate direct brand part numbers from cross-reference and verification references for this remanufactured diaphragm vacuum pump. Always verify the installed pump, motor plate, machine model, voltage, phase, frequency, mounting, plumbing orientation, and service manual before ordering.

Part Numbers

FMB / Firbimatic

  • 0719015

  • 071-9015

  • PAV.71.S4.00

  • 0719142

  • 0719005

  • 0719053

  • 0719070

  • 32-50

  • M17726

Union

  • PU0719015

  • PU071905

  • 071905

  • 0719005

  • 0719142

  • M17726

Realstar

  • 0719005

  • 071905

Cross References

FMB / Firbimatic

  • Union cross-reference: PU0719015.

  • Realstar comparison references: 0719005 and 071905 should be compared against FMB / Firbimatic 0719015 / 071-9015 through the machine model, installed pump, and service manual.

  • Air-cooled vacuum pump motor reference: 0719142.

  • Observed old-site listing context: FMB / Firbimatic air-cooled vacuum pump motor, 220V, 3 phase, 60 Hz.

  • Manufacturer / pump assembly references: PAV.71.S4.00, Bermar Air Cooled, Bonora, Due Effe PV75, hyco ML-348-D37-SA, hyco P-173/2.

  • Related vacuum-pump family references for verification only: 0719005, 0719053, 0719070, M17726, and 32-50 appear in nearby vacuum-pump/motor family evidence. Do not treat these as direct substitutes unless the installed pump, motor, cooling style, voltage, and manual match.

Union

  • FMB / Firbimatic cross-reference: 0719015.

  • Formatted cross-reference: 071-9015.

  • Realstar comparison references: 0719005 and 071905.

  • Air-cooled pump motor cross-reference: 0719142.

  • Union old-site listing context: air-cooled vacuum pump motor covering 0719142 / PU0719015 / 0719015, 220V, 3 phase, 60 Hz.

  • Related Union family reference for verification only: PU071905 appears in the liquid-cooled vacuum pump motor family and should not be used as a direct substitute without confirming the installed assembly.

Realstar

  • FMB / Firbimatic cross-reference: 0719015.

  • Formatted FMB / Firbimatic cross-reference: 071-9015.

  • Union cross-reference: PU0719015.

  • Air-cooled pump motor cross-reference: 0719142.

  • Realstar application note: use the Realstar machine model, installed component markings, horsepower, voltage, pump/motor plate, and service manual to confirm the correct pump before ordering.

Component Markings For Verification

These markings are listed for identification and verification. They are not presented as separate brand part numbers.

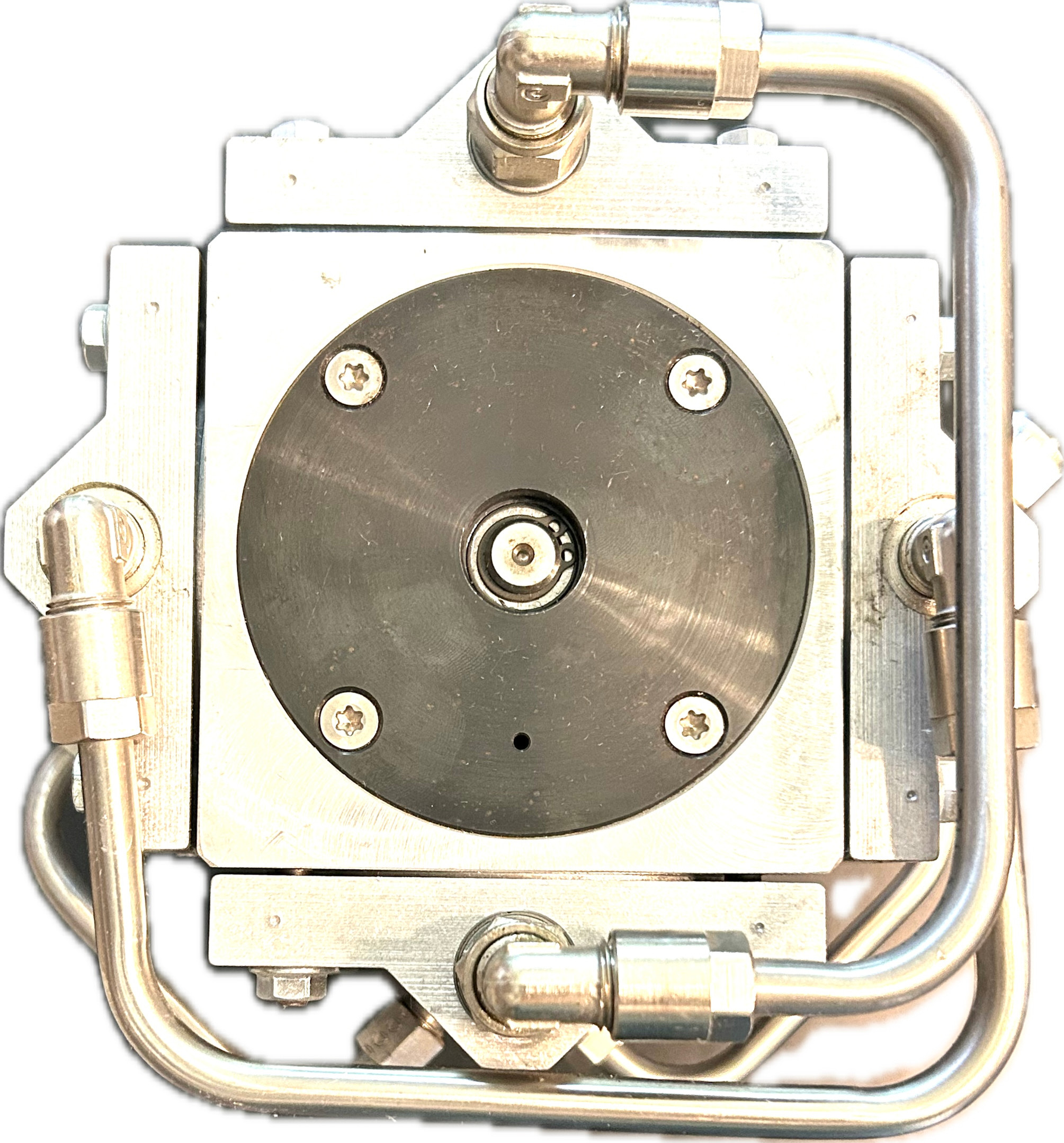

  • Pump head: hyco ML-348-D37-SA.

  • Pump type: P-173/2.

  • Trumpf Id.-Nr.: 352561.

  • Motor: hyco 7AA71M-4 B34.

  • Motor manufacturer/reference: Siemens/CZ Type 1LA7; UL File No. E227216.

  • Observed motor service context: 0.37/0.43 kW, 50/60 Hz, 230/400V at 50 Hz and 460V at 60 Hz.

Machine Fitment

Machine fitment for Reman. Diaphragm Vacuum Pump | FMB 0719015/Union PU0719015/RS 0719015 is organized through Corbett Equipment master manufacturer and model-lineage evidence. Use this section as a fitment-reference map, then verify the installed component, machine data plate, service manual, dimensions, voltage or pressure ratings where applicable, mounting, fittings, and part-number path before ordering.

Master manufacturer / model lineage

Corbett Equipment and FXT Factory records treat FMB / Firbimatic as the master machine-model lineage for this catalog family. Union, Realstar, and Sovrana references are derivative-reference families that must be matched through the installed component, manual table, and machine-specific service record.

FMB / Firbimatic machine models and master families

  • EcoPro / ECOPRO family: ECOPRO 915, ECOPRO 915S, ECOPRO 918, ECOPRO 918S, ECOPRO AM, ECOPRO AM918.

  • Saver family: SAVER 35, SAVER 350, SAVER 35P, SAVER 350P, SAVER 40, SAVER 40P, SAVER 80SM, SAVER HYDROCARBON.

  • F-series / 18 kg family: F AS 18 LT2, F AS 18 ST2, F18 LT2, F18 LT3, F18 ST2.

  • EcoGreen family: EcoGreen 35, EcoGreen 40 / L2118, EcoGreen 50 / L2120, EcoGreen 60 / L2125, EcoGreen 80 / L2132, EcoGreen 95, EcoGreen 95SM, EcoGreen DC, EcoGreen S50 / S2120, EcoGreen Advance.

  • EcoGreen SM / AM-prefix soft-mount family: AM918, AM925, AM940, AM2118, S2118, EcoGreen 40SM, EcoGreen 60SM, EcoPro 40SM, EcoPro 60SM.

  • EcoLine family: EcoLine 35, ECOLINE, ECOLINE 16.

  • Vortex family: VORTEX 40, VORTEX 50, VORTEX 80, VORTEX 95, VORTEX L2018, VORTEX S2018, VORTEX PRIMARY, Vortex 40 Plus, Vortex 50 Plus, Vortex 80 Plus, Vortex 50 Plus Tandem.

  • Axial family: AXIAL 40, AXIAL 918, AXIAL 925, AXIAL-918.

  • System and feature lineage: Hydro-Vac, Hydro-Chill, Tri-Flow, Smart-10, SecureLock, and related recovery, filtration, distillation, cooling, and control-system records.

  • Other recovered FMB reference families: Eco-15LT3, Eco-15LT-3, L 18, L-250, L750, L2118, P16, P1567, P1705, P6241, T1838.

  • Recovered numeric model set: 035, 05, 068, 08, 09, 10, 100, 12, 120, 13, 130, 14, 15, 153, 16, 20, 208, 220, 23, 24, 25, 30, 306, 310, 32, 338, 340, 35, 36, 37, 40, 410, 45, 465, 473, 50, 520, 60, 600, 63, 70, 71, 724, 765, 80, 895, 896, 918, 95.

  • Factory/model-code references observed in recovered Corbett lineage records: HC7-18-CL, HC7-18-CLM, HC7-18-CS, HC8-18-CL, HC8-18-CLM, HC8-18-CS.

Union machine models and derivative families

  • Core Union derivative references: HXP8018C, L840, P840.

  • HL / HP / HXL family references: HL-780, HL780, HL-840, HL840K, HP840K, HXL8018K, HL-850, HL850K, HP850K, HL-860, HL860K, HP860K, HXL8025K, HL-880, HL880K, HXL8032K, HL-890, HL890K.

  • L / RS family references: L740S, L740, HL740, L750, RS-102, RS-122, RS-152.

  • Verify Union fitment by matching the installed part, Union manual table, FMB / Firbimatic master-model relationship, connection details, and service location.

Realstar machine models and derivative families

  • KM / KT derivative references: KM315, KM315-K4, KT215, KT215-K4, KM343, KM343-K4, KT343, KT343-K4.

  • Larger KM / KT references: KM403, KM403-K4, KT403, KT403-K4, KM503, KM503-K4, KT503, KM703, KM703-K4, KM803, KM803-K4.

  • RKM references: KM-36 / RKM36, KM-340 / RKM340, KM-400 / RKM400.

  • Verify Realstar fitment by matching the installed part, Realstar manual table, FMB / Firbimatic master-model relationship, connection details, and service location.

Sovrana and other derivative references

Sovrana and other derivative-model references may appear in Corbett lineage records. Treat them as research clues only unless the installed component, machine manual, and part-number path confirm the application.

Ordering Verification

Confirm the part number, installed component markings, voltage or pressure rating where applicable, connection size, mounting style, and machine model before ordering.

Contact Corbett Equipment if you need help matching the part to a Firbimatic, Union, Realstar, or related FMB machine.
