FBN75 Due Effe Pump Motor for Perc Machines | FMB / Union / Realstar 0702035

FBN75 Due Effe Pump Motor for Perc Machines | FMB / Union / Realstar 0702035 is a Due Effe FBN75 pump motor used in compatible perc dry-cleaning machine pump service. Use this listing when the installed pump/motor assembly, motor plate, machine manual, or service record matches part number 0702035 or legacy reference M5237. Do not substitute this listing for FBN100, FBN150, KWL, or other pump-motor versions without confirming the installed motor and pump specifications.

Back to catalog

In stock Available in Wix Stores

Product image viewer

Image 1 of 1

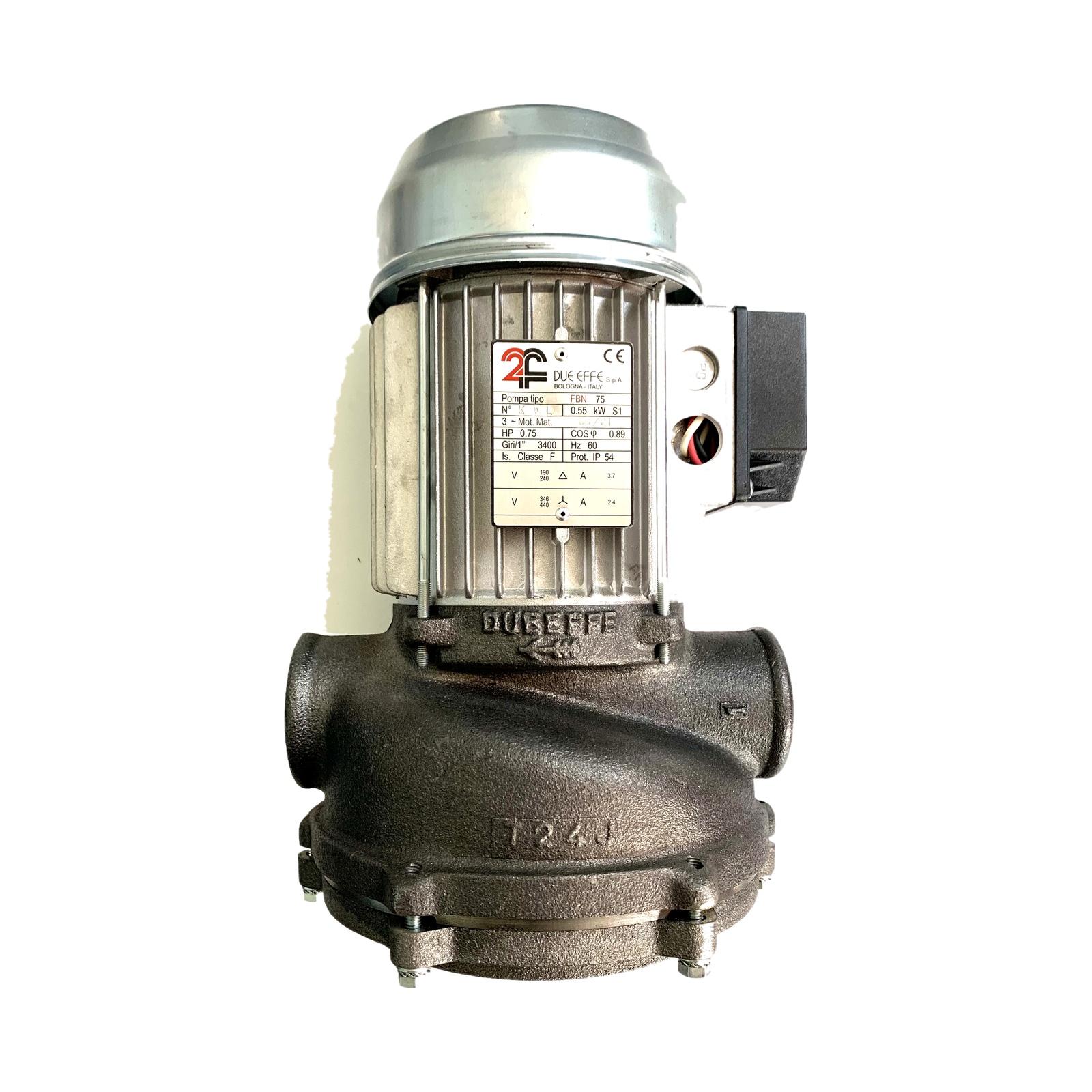

0702035 FBN75 Due Effe Pump Motor for Perc Machines | FMB / Union / Realstar 0702035 primary product photo for dry cleaning machine service
0702035 FBN75 Due Effe Pump Motor for Perc Machines | FMB / Union / Realstar 0702035 primary product photo for dry cleaning machine service

Status

Available in Wix Stores

Availability

In stock

System / Type

Pumps / vacuum / Motor / pump

Fitment

Firbimatic / FMB, Union, Realstar

Quote Basis

$818.00

Technical listing

Description, specifications, cross references, and fitment

FBN75 Due Effe Pump Motor for Perc Machines | FMB / Union / Realstar 0702035 is a Due Effe FBN75 pump motor used in compatible perc dry-cleaning machine pump service.

Use this listing when the installed pump/motor assembly, motor plate, machine manual, or service record matches part number 0702035 or legacy reference M5237. Do not substitute this listing for FBN100, FBN150, KWL, or other pump-motor versions without confirming the installed motor and pump specifications.

Technical Specifications

  • Component type: Due Effe FBN75 pump motor.

  • Primary system: pump / solvent-circulation service.

  • Part number: 0702035.

  • Legacy reference: M5237.

  • Application evidence: FBN75 pump motor for perc-machine service.

  • Verification points: motor plate, voltage, phase, frequency, horsepower, pump body, inlet/outlet arrangement, mounting, and rotation/service orientation.

Part Numbers & Cross References

Part Numbers

  • FMB / Firbimatic: 0702035.

  • Union: verify by installed pump/motor assembly and machine manual.

  • Realstar: verify by installed pump/motor assembly and machine manual.

Cross References

  • Legacy / old FMB reference: M5237.

  • Old Corbett/Wix reference: FBN75 Due Effe Pump Motor for Perc Machines 0702035.

Machine Fitment

Machine fitment for FBN75 Due Effe Pump Motor for Perc Machines | FMB / Union / Realstar 0702035 is organized through Corbett Equipment master manufacturer and model-lineage evidence. Use this section as a fitment-reference map, then verify the installed component, machine data plate, service manual, dimensions, voltage or pressure ratings where applicable, mounting, fittings, and part-number path before ordering.

Master manufacturer / model lineage

Corbett Equipment and FXT Factory records treat FMB / Firbimatic as the master machine-model lineage for this catalog family. Union, Realstar, and Sovrana references are derivative-reference families that must be matched through the installed component, manual table, and machine-specific service record.

FMB / Firbimatic machine models and master families

  • EcoPro / ECOPRO family: ECOPRO 915, ECOPRO 915S, ECOPRO 918, ECOPRO 918S, ECOPRO AM, ECOPRO AM918.

  • Saver family: SAVER 35, SAVER 350, SAVER 35P, SAVER 350P, SAVER 40, SAVER 40P, SAVER 80SM, SAVER HYDROCARBON.

  • F-series / 18 kg family: F AS 18 LT2, F AS 18 ST2, F18 LT2, F18 LT3, F18 ST2.

  • EcoGreen family: EcoGreen 35, EcoGreen 40 / L2118, EcoGreen 50 / L2120, EcoGreen 60 / L2125, EcoGreen 80 / L2132, EcoGreen 95, EcoGreen 95SM, EcoGreen DC, EcoGreen S50 / S2120, EcoGreen Advance.

  • EcoGreen SM / AM-prefix soft-mount family: AM918, AM925, AM940, AM2118, S2118, EcoGreen 40SM, EcoGreen 60SM, EcoPro 40SM, EcoPro 60SM.

  • EcoLine family: EcoLine 35, ECOLINE, ECOLINE 16.

  • Vortex family: VORTEX 40, VORTEX 50, VORTEX 80, VORTEX 95, VORTEX L2018, VORTEX S2018, VORTEX PRIMARY, Vortex 40 Plus, Vortex 50 Plus, Vortex 80 Plus, Vortex 50 Plus Tandem.

  • Axial family: AXIAL 40, AXIAL 918, AXIAL 925, AXIAL-918.

  • System and feature lineage: Hydro-Vac, Hydro-Chill, Tri-Flow, Smart-10, SecureLock, and related recovery, filtration, distillation, cooling, and control-system records.

  • Other recovered FMB reference families: Eco-15LT3, Eco-15LT-3, L 18, L-250, L750, L2118, P16, P1567, P1705, P6241, T1838.

  • Recovered numeric model set: 035, 05, 068, 08, 09, 10, 100, 12, 120, 13, 130, 14, 15, 153, 16, 20, 208, 220, 23, 24, 25, 30, 306, 310, 32, 338, 340, 35, 36, 37, 40, 410, 45, 465, 473, 50, 520, 60, 600, 63, 70, 71, 724, 765, 80, 895, 896, 918, 95.

  • Factory/model-code references observed in recovered Corbett lineage records: HC7-18-CL, HC7-18-CLM, HC7-18-CS, HC8-18-CL, HC8-18-CLM, HC8-18-CS.

Union machine models and derivative families

  • Core Union derivative references: HXP8018C, L840, P840.

  • HL / HP / HXL family references: HL-780, HL780, HL-840, HL840K, HP840K, HXL8018K, HL-850, HL850K, HP850K, HL-860, HL860K, HP860K, HXL8025K, HL-880, HL880K, HXL8032K, HL-890, HL890K.

  • L / RS family references: L740S, L740, HL740, L750, RS-102, RS-122, RS-152.

  • Verify Union fitment by matching the installed part, Union manual table, FMB / Firbimatic master-model relationship, connection details, and service location.

Realstar machine models and derivative families

  • KM / KT derivative references: KM315, KM315-K4, KT215, KT215-K4, KM343, KM343-K4, KT343, KT343-K4.

  • Larger KM / KT references: KM403, KM403-K4, KT403, KT403-K4, KM503, KM503-K4, KT503, KM703, KM703-K4, KM803, KM803-K4.

  • RKM references: KM-36 / RKM36, KM-340 / RKM340, KM-400 / RKM400.

  • Verify Realstar fitment by matching the installed part, Realstar manual table, FMB / Firbimatic master-model relationship, connection details, and service location.

Sovrana and other derivative references

Sovrana and other derivative-model references may appear in Corbett lineage records. Treat them as research clues only unless the installed component, machine manual, and part-number path confirm the application.

Installation & Ordering Verification

  • Disconnect power and follow solvent-system service procedures before replacing pump motors.

  • Confirm part number 0702035 / M5237 and verify the installed pump is the FBN75 Due Effe perc-machine path.

  • Compare voltage, phase, frequency, horsepower, mounting, and inlet/outlet arrangement.

  • After installation, verify rotation, leak-free plumbing, and proper pump operation before returning the machine to service.

Product information

Technical product details

Ordering Verification & Support

For dry-cleaning machine parts, confirm the machine brand, model, serial or data plate, installed component markings, part number, voltage, pressure, thread or fitting size, and available manual references before ordering. When uncertain, send photos and machine information so Corbett Equipment can help verify FMB/Firbimatic, Union, Realstar, EcoGreen, and related model-lineage fitment before shipment.

Warranty & Condition

Condition is stated in each listing. New, used, remanufactured, rebuilt, and special-order parts may carry different coverage. Any warranty applies to the part supplied only and does not cover labor, diagnosis, installation, downtime, lost production, contamination, incorrect installation, incorrect voltage, incorrect pressure, incorrect fittings, or consequential damages.

Returns & Fitment Policy

Contact Corbett Equipment before returning any part. Returns require approval and must be unused, uninstalled, complete, and in resalable condition unless otherwise agreed in writing. Electrical parts, installed parts, special-order items, used or remanufactured parts, and incorrectly ordered parts may be limited or non-returnable. Fitment must be verified before purchase.

Shipping & Delivery

Most Corbett Equipment replacement parts ship after order review and fitment verification. Shipping method, handling time, packaging, insurance, freight requirements, and delivery cost vary by part size, weight, destination, inventory status, and carrier availability. Heavy, oversized, international, special-order, or supplier-sourced items may require a separate freight quote before shipment.
