3-Way Shuttle Air Valve | FMB 0402001 / Union PU040201 / Realstar 0402001

3-Way Shuttle Air Valve | FMB 0402001 / Union PU040201 / Realstar 0402001 is a pneumatic shuttle / air valve used on compatible FMB / Firbimatic, Union, and Realstar dry-cleaning machines. Use this listing when the installed valve, machine manual, or service record matches FMB / Firbimatic 0402001, 338-035, Union PU040201, Realstar 0402001, or legacy reference P11536. Before ordering, compare the valve body, port count, mounting, pneumatic line locations, component markings, and machine circuit.

Back to catalog

In stock Available in Wix Stores

Product image viewer

Image 1 of 5

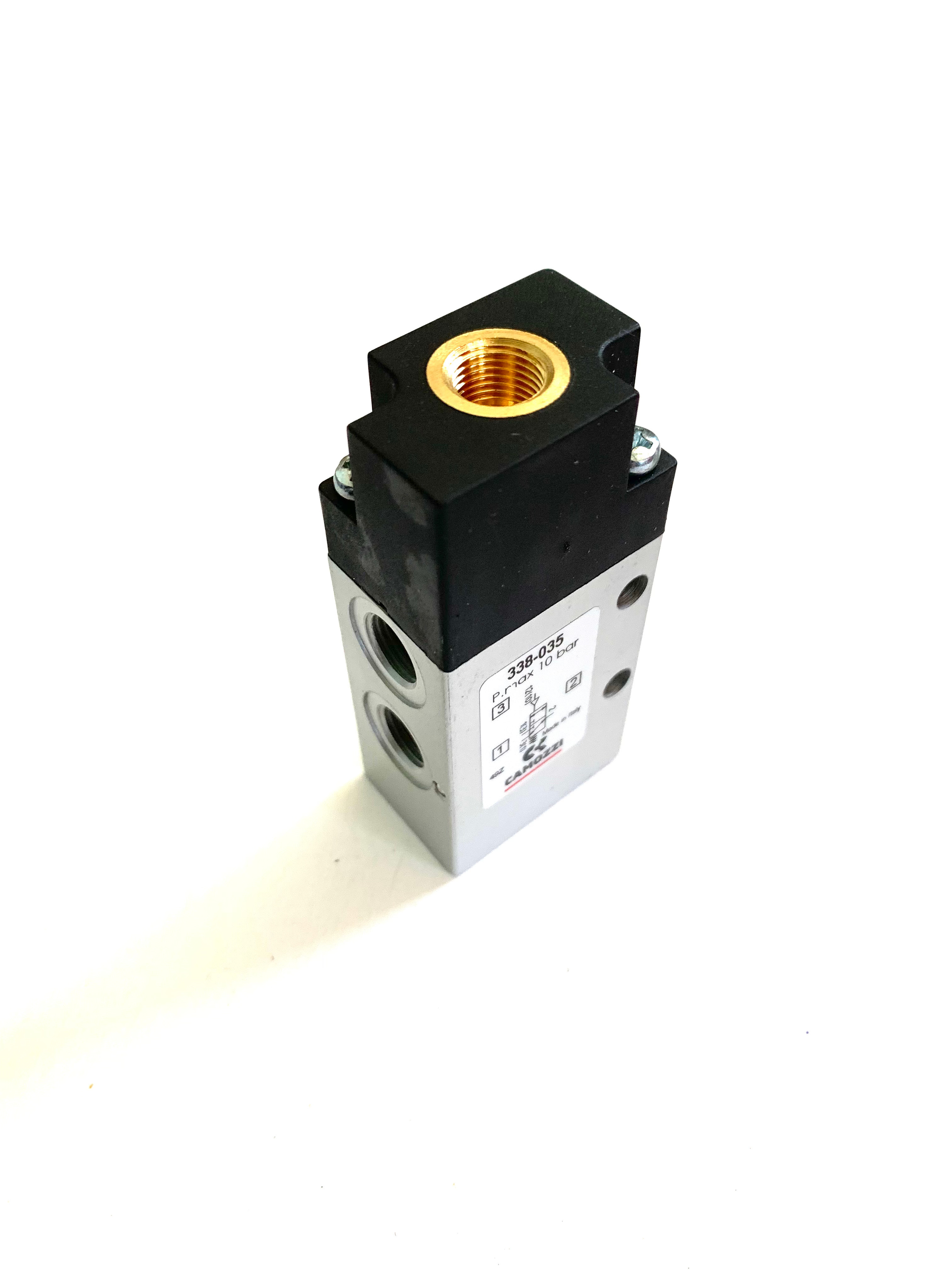

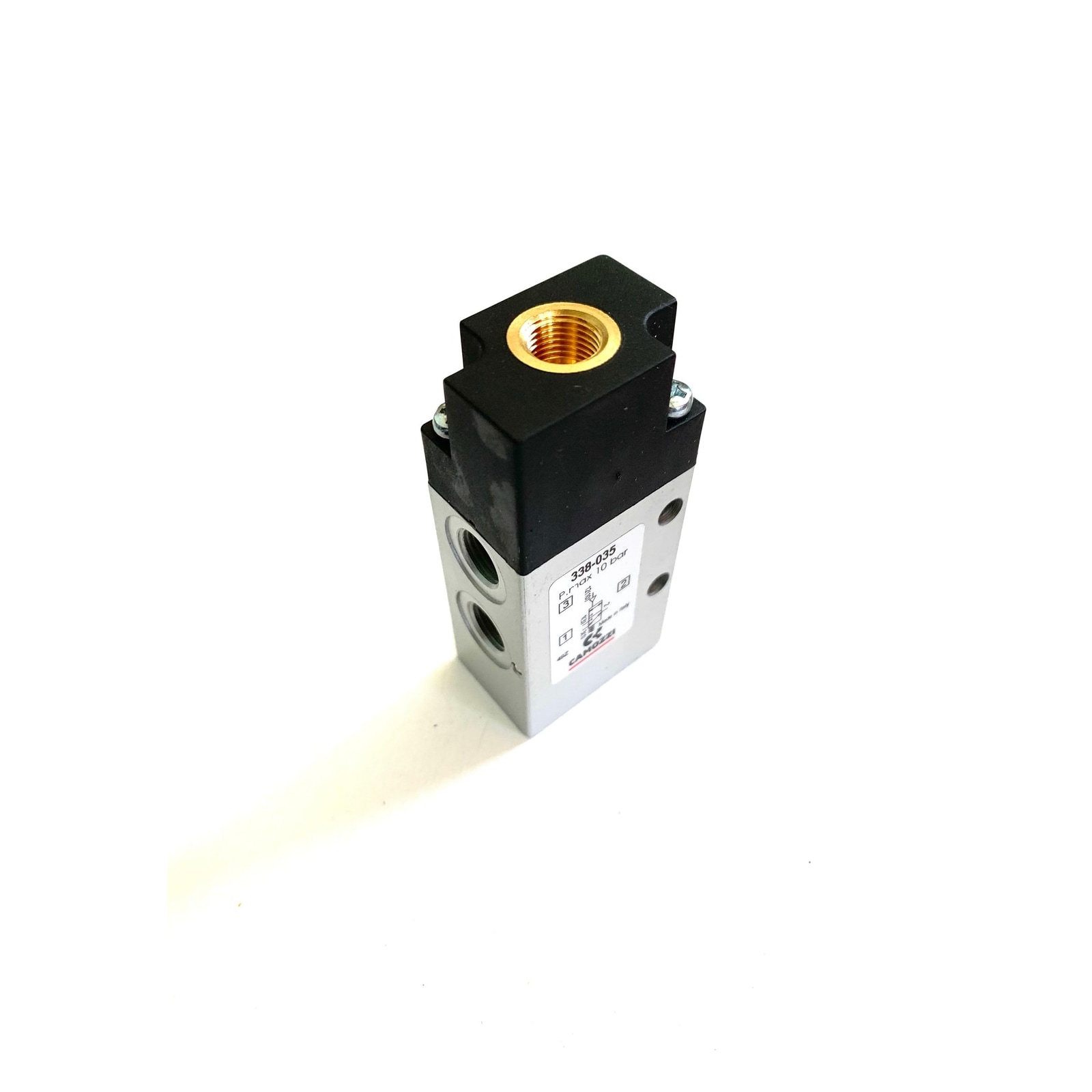

0402001 3-Way Valve Shuttle Type | FMB 0402001 / Union PU040201 / Realstar 0402001 primary product photo for dry cleaning machine service
0402001 3-Way Valve Shuttle Type | FMB 0402001 / Union PU040201 / Realstar 0402001 primary product photo for dry cleaning machine service

Status

Available in Wix Stores

Availability

In stock

System / Type

Pneumatic / valves / Valve

Fitment

Firbimatic / FMB, Union, Realstar

Quote Basis

$59.95

Technical listing

Description, specifications, cross references, and fitment

3-Way Shuttle Air Valve | FMB 0402001 / Union PU040201 / Realstar 0402001 is a pneumatic shuttle / air valve used on compatible FMB / Firbimatic, Union, and Realstar dry-cleaning machines.

Use this listing when the installed valve, machine manual, or service record matches FMB / Firbimatic 0402001, 338-035, Union PU040201, Realstar 0402001, or legacy reference P11536. Before ordering, compare the valve body, port count, mounting, pneumatic line locations, component markings, and machine circuit.

Technical Specifications

  • Component type: 3-way shuttle / pneumatic air valve.

  • Primary system: pneumatic air-control circuit.

  • Part-number family: 0402001 / PU040201 / 338-035.

  • Legacy reference: P11536.

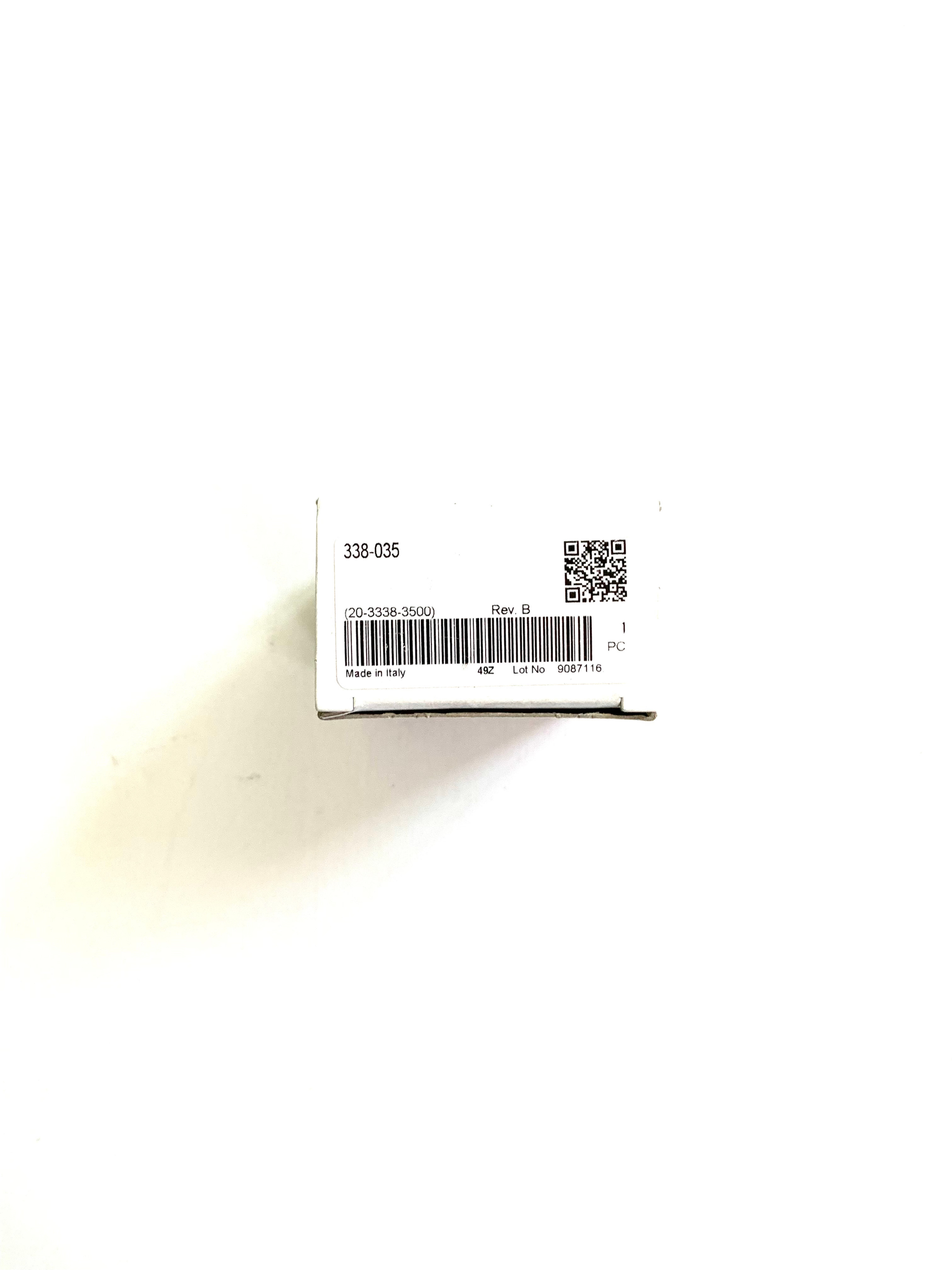

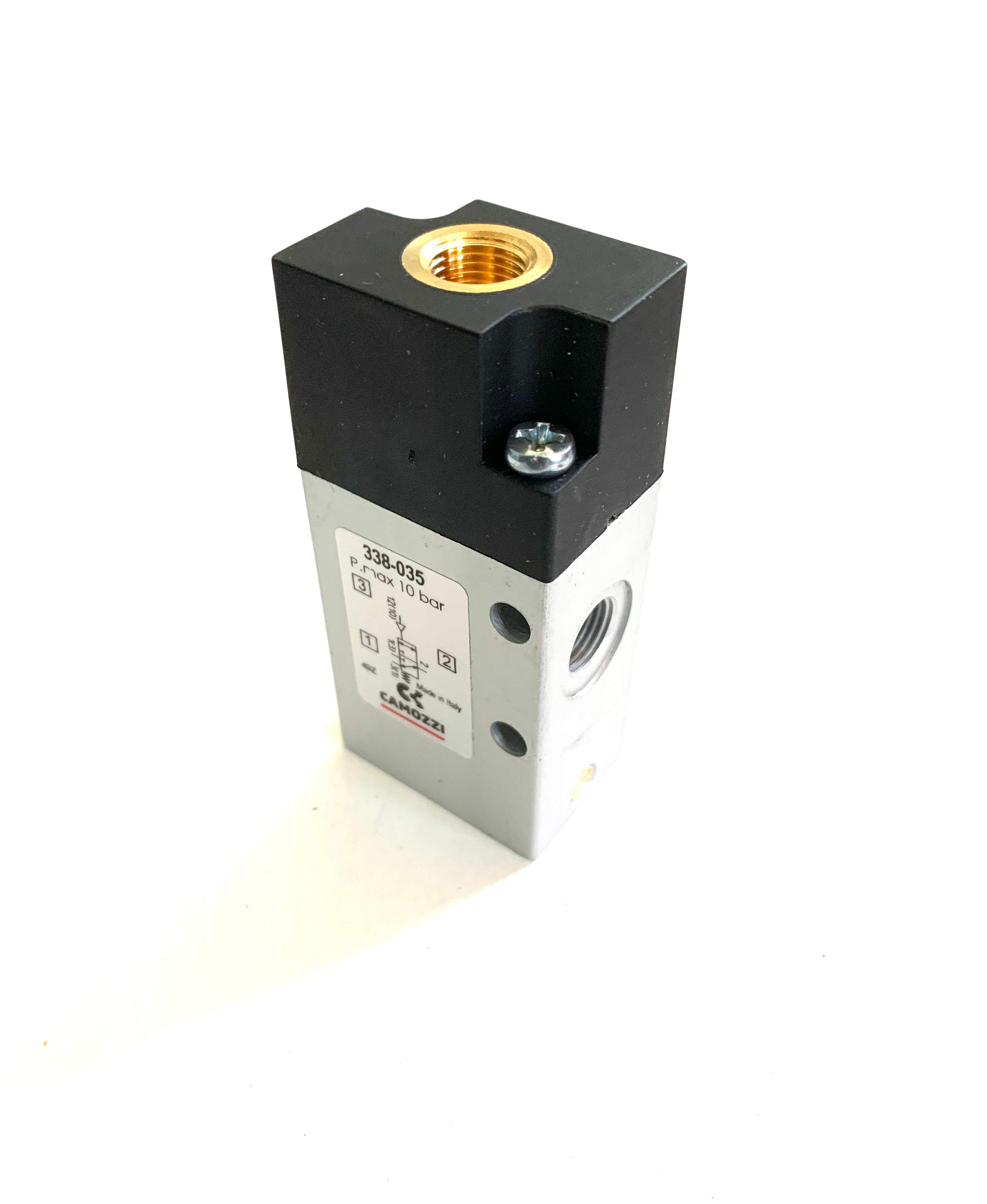

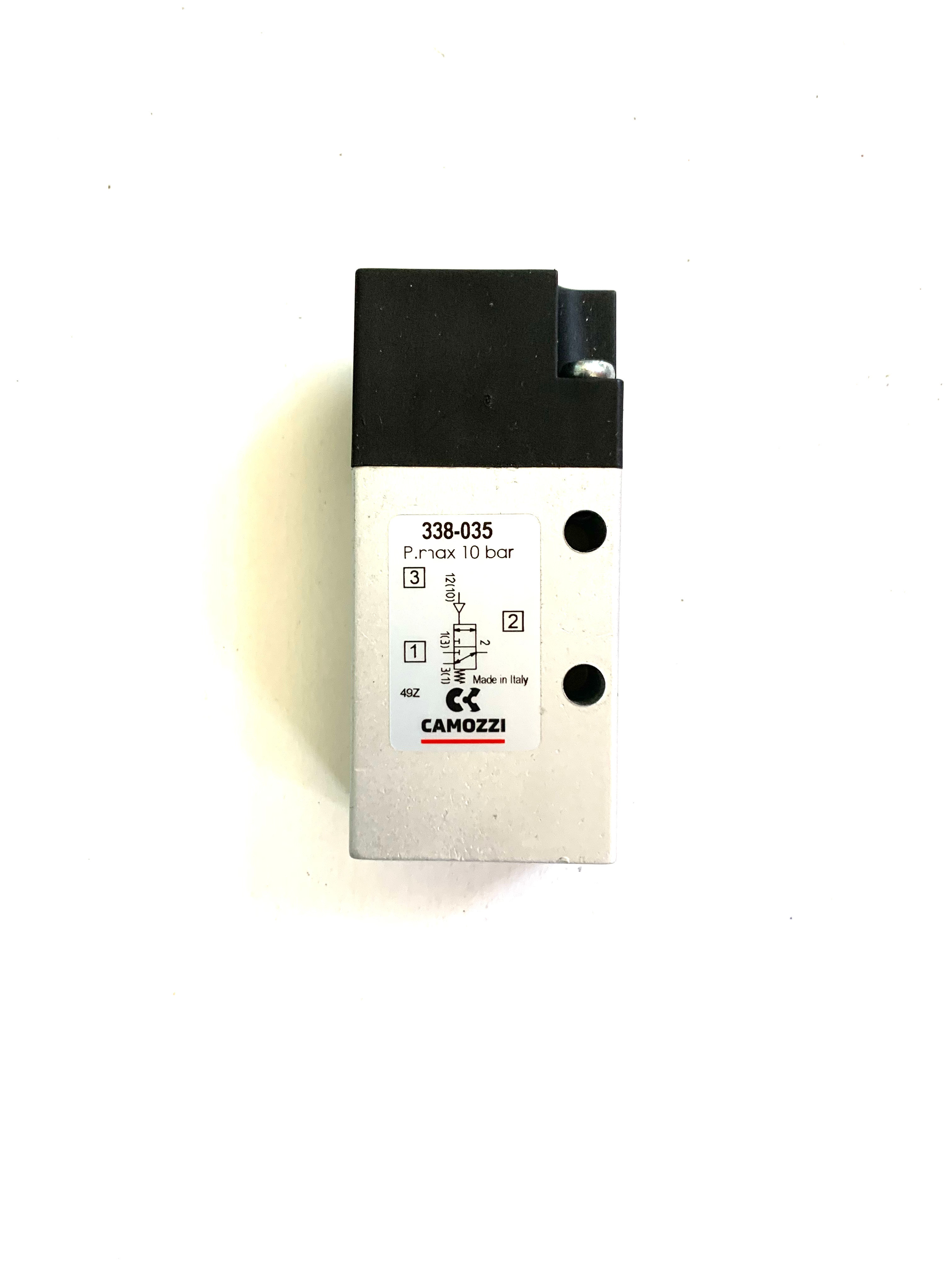

  • Component evidence: 338-035 Air Valve 4 Hole / Camozzi air-valve reference in Corbett product evidence.

  • Verification points: port count, pneumatic line arrangement, mounting style, actuator/cam interface where present, and installed component markings.

Part Numbers & Cross References

Part Numbers

  • FMB / Firbimatic: 0402001.

  • FMB / Firbimatic component reference: 338-035.

  • Union: PU040201.

  • Realstar: 0402001 where the Realstar manual and installed valve match this pneumatic-valve path.

Cross References

  • Legacy / old FMB reference: P11536.

  • Old Corbett/Wix reference: 0402001 Air Valve 4 Hole.

Machine Fitment

Machine fitment for 3-Way Shuttle Air Valve | FMB 0402001 / Union PU040201 / Realstar 0402001 is organized through Corbett Equipment master manufacturer and model-lineage evidence. Use this section as a fitment-reference map, then verify the installed component, machine data plate, service manual, dimensions, voltage or pressure ratings where applicable, mounting, fittings, and part-number path before ordering.

Master manufacturer / model lineage

Corbett Equipment and FXT Factory records treat FMB / Firbimatic as the master machine-model lineage for this catalog family. Union, Realstar, and Sovrana references are derivative-reference families that must be matched through the installed component, manual table, and machine-specific service record.

FMB / Firbimatic machine models and master families

  • EcoPro / ECOPRO family: ECOPRO 915, ECOPRO 915S, ECOPRO 918, ECOPRO 918S, ECOPRO AM, ECOPRO AM918.

  • Saver family: SAVER 35, SAVER 350, SAVER 35P, SAVER 350P, SAVER 40, SAVER 40P, SAVER 80SM, SAVER HYDROCARBON.

  • F-series / 18 kg family: F AS 18 LT2, F AS 18 ST2, F18 LT2, F18 LT3, F18 ST2.

  • EcoGreen family: EcoGreen 35, EcoGreen 40 / L2118, EcoGreen 50 / L2120, EcoGreen 60 / L2125, EcoGreen 80 / L2132, EcoGreen 95, EcoGreen 95SM, EcoGreen DC, EcoGreen S50 / S2120, EcoGreen Advance.

  • EcoGreen SM / AM-prefix soft-mount family: AM918, AM925, AM940, AM2118, S2118, EcoGreen 40SM, EcoGreen 60SM, EcoPro 40SM, EcoPro 60SM.

  • EcoLine family: EcoLine 35, ECOLINE, ECOLINE 16.

  • Vortex family: VORTEX 40, VORTEX 50, VORTEX 80, VORTEX 95, VORTEX L2018, VORTEX S2018, VORTEX PRIMARY, Vortex 40 Plus, Vortex 50 Plus, Vortex 80 Plus, Vortex 50 Plus Tandem.

  • Axial family: AXIAL 40, AXIAL 918, AXIAL 925, AXIAL-918.

  • System and feature lineage: Hydro-Vac, Hydro-Chill, Tri-Flow, Smart-10, SecureLock, and related recovery, filtration, distillation, cooling, and control-system records.

  • Other recovered FMB reference families: Eco-15LT3, Eco-15LT-3, L 18, L-250, L750, L2118, P16, P1567, P1705, P6241, T1838.

  • Recovered numeric model set: 035, 05, 068, 08, 09, 10, 100, 12, 120, 13, 130, 14, 15, 153, 16, 20, 208, 220, 23, 24, 25, 30, 306, 310, 32, 338, 340, 35, 36, 37, 40, 410, 45, 465, 473, 50, 520, 60, 600, 63, 70, 71, 724, 765, 80, 895, 896, 918, 95.

  • Factory/model-code references observed in recovered Corbett lineage records: HC7-18-CL, HC7-18-CLM, HC7-18-CS, HC8-18-CL, HC8-18-CLM, HC8-18-CS.

Union machine models and derivative families

  • Core Union derivative references: HXP8018C, L840, P840.

  • HL / HP / HXL family references: HL-780, HL780, HL-840, HL840K, HP840K, HXL8018K, HL-850, HL850K, HP850K, HL-860, HL860K, HP860K, HXL8025K, HL-880, HL880K, HXL8032K, HL-890, HL890K.

  • L / RS family references: L740S, L740, HL740, L750, RS-102, RS-122, RS-152.

  • Verify Union fitment by matching the installed part, Union manual table, FMB / Firbimatic master-model relationship, connection details, and service location.

Realstar machine models and derivative families

  • KM / KT derivative references: KM315, KM315-K4, KT215, KT215-K4, KM343, KM343-K4, KT343, KT343-K4.

  • Larger KM / KT references: KM403, KM403-K4, KT403, KT403-K4, KM503, KM503-K4, KT503, KM703, KM703-K4, KM803, KM803-K4.

  • RKM references: KM-36 / RKM36, KM-340 / RKM340, KM-400 / RKM400.

  • Verify Realstar fitment by matching the installed part, Realstar manual table, FMB / Firbimatic master-model relationship, connection details, and service location.

Sovrana and other derivative references

Sovrana and other derivative-model references may appear in Corbett lineage records. Treat them as research clues only unless the installed component, machine manual, and part-number path confirm the application.

Installation & Ordering Verification

  • Confirm the installed valve matches the 3-way / 4-hole pneumatic valve configuration before ordering.

  • Confirm part number 0402001, PU040201, 338-035, or legacy reference P11536 in the machine record or installed component evidence.

  • Compare pneumatic line locations, mounting pattern, and component markings.

  • After installation, verify pneumatic function and leak-free operation before returning the machine to service.
