Door Micro Switch Z-15G-B | FMB / Union / Realstar 0314009

Door Micro Switch Z-15G-B | FMB / Union / Realstar 0314009 is a door / button microswitch used in compatible dry-cleaning machine electrical-control and safety-interlock service. Use this listing when the installed switch, machine manual, or service record matches part number 0314009, microswitch reference Z-15G-B / Z15GQ-B7, or legacy reference E14901. Before ordering, compare actuator/button style, mounting holes, terminal arrangement, electrical rating, and installed door/interlock location.

Back to catalog

In stock Available in Wix Stores

Product image viewer

Image 1 of 2

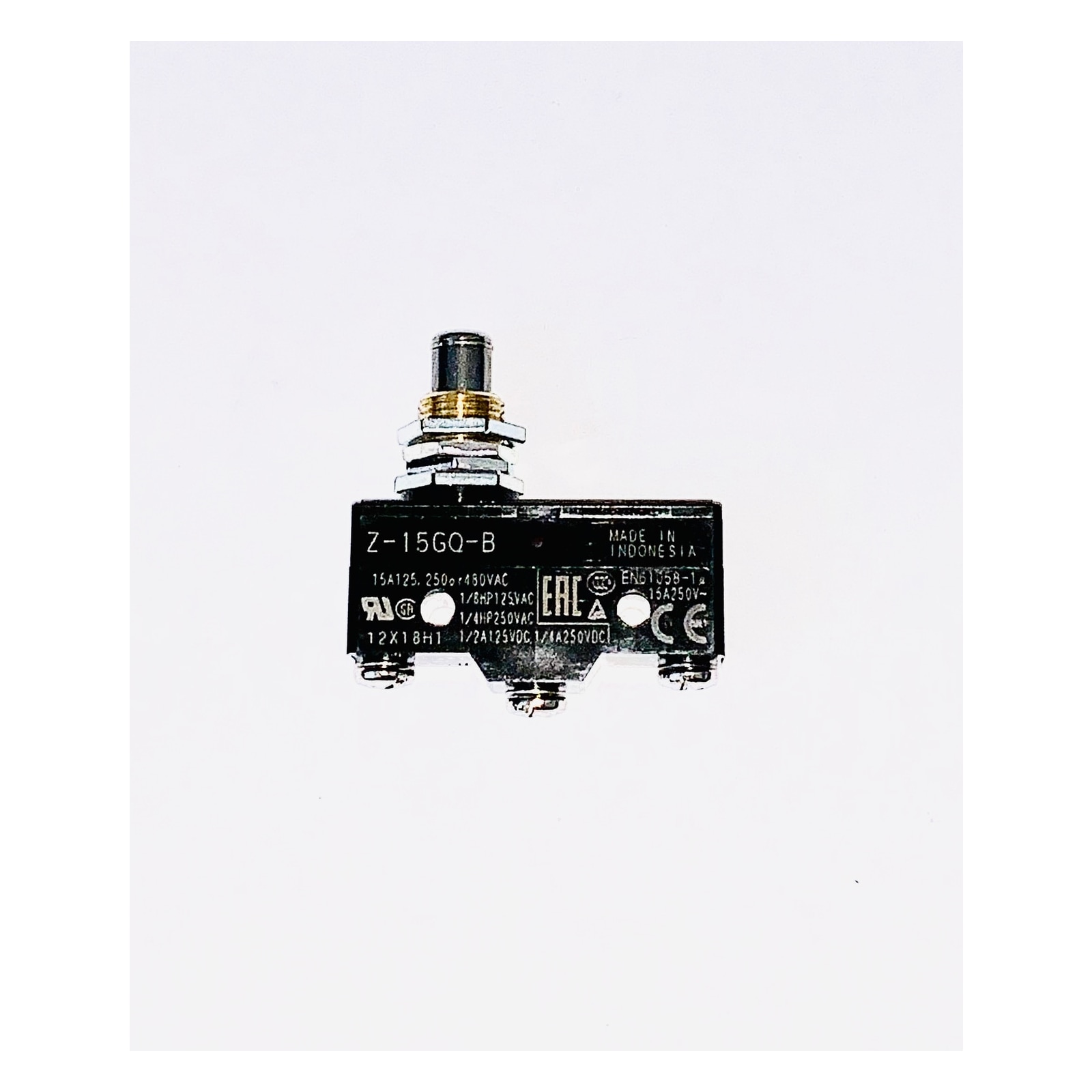

0314009 Switch Micro Door Z-15G-B | FMB / Union / Realstar 0314009 primary product photo for dry cleaning machine service
0314009 Switch Micro Door Z-15G-B | FMB / Union / Realstar 0314009 primary product photo for dry cleaning machine service

Status

Available in Wix Stores

Availability

In stock

System / Type

Electrical / controls / Switch

Fitment

Firbimatic / FMB, Union, Realstar

Quote Basis

$49.26

Technical listing

Description, specifications, cross references, and fitment

Door Micro Switch Z-15G-B | FMB / Union / Realstar 0314009 is a door / button microswitch used in compatible dry-cleaning machine electrical-control and safety-interlock service.

Use this listing when the installed switch, machine manual, or service record matches part number 0314009, microswitch reference Z-15G-B / Z15GQ-B7, or legacy reference E14901. Before ordering, compare actuator/button style, mounting holes, terminal arrangement, electrical rating, and installed door/interlock location.

Technical Specifications

  • Component type: door / button microswitch.

  • Primary system: electrical controls and door/interlock service.

  • Part number: 0314009.

  • Microswitch reference in Corbett evidence: Z-15G-B / Z15GQ-B7.

  • Legacy reference: E14901.

  • Verification points: actuator/button style, terminal arrangement, mounting, electrical rating, and installed door/interlock position.

Part Numbers & Cross References

Part Numbers

  • FMB / Firbimatic: 0314009.

  • Union: verify by installed microswitch and machine manual.

  • Realstar: verify by installed microswitch and machine manual.

Cross References

  • Legacy / old FMB reference: E14901.

  • Component reference: Z-15G-B / Z15GQ-B7.

Machine Fitment

Corbett Equipment/FXT Factory records: FMB / Firbimatic is the master model lineage; Union, Realstar and Sovrana are derivative-reference families. Reference map only: confirm installed component, model/data plate, service-manual table, machine-specific service record, part-number path, dimensions, mounting/fittings and applicable voltage/pressure ratings.

FMB / Firbimatic machine models and master families

  • EcoPro / ECOPRO family: ECOPRO 915, ECOPRO 915S, ECOPRO 918, ECOPRO 918S, ECOPRO AM, ECOPRO AM918.

  • Saver family: SAVER 35, SAVER 350, SAVER 35P, SAVER 350P, SAVER 40, SAVER 40P, SAVER 80SM, SAVER HYDROCARBON.

  • F-series / 18 kg family: F AS 18 LT2, F AS 18 ST2, F18 LT2, F18 LT3, F18 ST2.

  • EcoGreen family: EcoGreen 35, EcoGreen 40 / L2118, EcoGreen 50 / L2120, EcoGreen 60 / L2125, EcoGreen 80 / L2132, EcoGreen 95, EcoGreen 95SM, EcoGreen DC, EcoGreen S50 / S2120, EcoGreen Advance.

  • EcoGreen SM / AM-prefix soft-mount family: AM918, AM925, AM940, AM2118, S2118, EcoGreen 40SM, EcoGreen 60SM, EcoPro 40SM, EcoPro 60SM.

  • EcoLine family: EcoLine 35, ECOLINE, ECOLINE 16.

  • Vortex family: VORTEX 40, VORTEX 50, VORTEX 80, VORTEX 95, VORTEX L2018, VORTEX S2018, VORTEX PRIMARY, Vortex 40 Plus, Vortex 50 Plus, Vortex 80 Plus, Vortex 50 Plus Tandem.

  • Axial family: AXIAL 40, AXIAL 918, AXIAL 925, AXIAL-918.

  • System and feature lineage: Hydro-Vac, Hydro-Chill, Tri-Flow, Smart-10, SecureLock, and related recovery, filtration, distillation, cooling, and control-system records.

  • Other recovered FMB reference families: Eco-15LT3, Eco-15LT-3, L 18, L-250, L750, L2118, P16, P1567, P1705, P6241, T1838.

  • Recovered numeric model set: 035, 05, 068, 08, 09, 10, 100, 12, 120, 13, 130, 14, 15, 153, 16, 20, 208, 220, 23, 24, 25, 30, 306, 310, 32, 338, 340, 35, 36, 37, 40, 410, 45, 465, 473, 50, 520, 60, 600, 63, 70, 71, 724, 765, 80, 895, 896, 918, 95.

  • Factory/model-code references observed in recovered Corbett lineage records: HC7-18-CL, HC7-18-CLM, HC7-18-CS, HC8-18-CL, HC8-18-CLM, HC8-18-CS.

Union machine models and derivative families

  • Core Union derivative references: HXP8018C, L840, P840.

  • HL / HP / HXL family references: HL-780, HL780, HL-840, HL840K, HP840K, HXL8018K, HL-850, HL850K, HP850K, HL-860, HL860K, HP860K, HXL8025K, HL-880, HL880K, HXL8032K, HL-890, HL890K.

  • L / RS family references: L740S, L740, HL740, L750, RS-102, RS-122, RS-152.

  • Verify Union fitment by matching the installed part, Union manual table, FMB / Firbimatic master-model relationship, connection details, and service location.

Realstar machine models and derivative families

  • KM / KT derivative references: KM315, KM315-K4, KT215, KT215-K4, KM343, KM343-K4, KT343, KT343-K4.

  • Larger KM / KT references: KM403, KM403-K4, KT403, KT403-K4, KM503, KM503-K4, KT503, KM703, KM703-K4, KM803, KM803-K4.

  • RKM references: KM-36 / RKM36, KM-340 / RKM340, KM-400 / RKM400.

  • Verify Realstar fitment by matching the installed part, Realstar manual table, FMB / Firbimatic master-model relationship, connection details, and service location.

Sovrana/other derivative references are research clues only until the component, machine manual and part-number path confirm the application.

Installed-component conditions

For every application below, confirm exact machine/model data plate, serial/revision, component markings, installed component/assembly, ratings, dimensions, connections, wiring/contact arrangement and mounting. Model names/capacities alone are insufficient. Configuration-qualified sisters and Omnia variants require the matching assembly/component. Numeric labels are printed designations; similar commercial names alone are insufficient. For configuration-specific applications, match the model-specific parts manual.

Model-specific applications

For machines with the self-cleaning lint-filter or door interlock fitted with matching E14901 / 0314009 microswitch, actuation and contact arrangement.

FMB / Firbimatic: 20 kg — EcoGreen 50, L2120; 25 kg — EcoGreen 60, L2125.

Union (matching component and configuration required): 20 kg — HL850, HL850-K, HP850, HP850-K; 25 kg — HL860, HL860-K, HP860, HP860-K; 25 kg (configuration-qualified) — HXL8025K.

Realstar (matching component and configuration required): 20 kg — KM403, KM403-K4, KT403; 25 kg — KM-K225, KM-K325, KM503, KM503-K4, KT503.

EcoGreen S-Series Applications

Only the documented STANDARD/AUTOPULENTE air-filter or button-trap assembly equipped with E14901 /0314009; verify contact, actuation and assembly revision.

FMB / Firbimatic: 18 kg — EcoGreen Petite 40, S2118; 20 kg — EcoGreen Petite 50, S2120.

Union (matching component and configuration required): 18 kg — HL840, HL840-K, HP840, HP840-K, HXL8018K, HXL8018S-K; 20 kg — HL850, HL850-K, HP850, HP850-K.

Realstar (matching component and configuration required): 18 kg — HSK340, KM-K218, KM-K318, KM343, KM343-K4, KT343, KT343-K4; 20 kg — KM403, KM403-K4, KT403.

Additional Numeric-Model Applications

For the matching installed component in the listed legacy numeric-model configuration. Match the installed air/lint-filter or door microswitch, actuator and electrical contact arrangement.

FMB / Firbimatic: 912, 915.

Additional EcoGreen L-Series Applications

Match the installed microswitch, actuator, electrical contacts and exact filter/door/trap assembly.

FMB / Firbimatic: 18 kg — L2118, EcoGreen 40; 32 kg — L2132, EcoGreen 80; 40 kg — L2140, EcoGreen 95.

Realstar — configuration-qualified: 18 kg — KM-K318, KT343, KM343-K4, KM343, KT343-K4, KM-K218, HSK340; 32 kg — KM703, KM703-K4; 40 kg — KM803-K4, KM803. Union — configuration-qualified: 18 kg — HL840, HP840, HL840-K, HP840-K, HXL8018K, HXL8018S-K; 32 kg — HL880-K, HXL8032K, HL880; 40 kg — HL890-K, HL890.

Additional Configuration-Specific Applications

Match the installed microswitch, actuator, electrical contacts and exact filter/door/trap assembly.

FMB / Firbimatic — configuration-qualified: 18 kg — ECOPRO AM918, ECOPRO 918S/40, ECOPRO 918/40, VORTEX S2018, VORTEX L2018; 20 kg — VORTEX S2020, Vortex 2020, ECOPRO 920/50; 25 kg — Vortex 2025, ECOPRO 925/60, ECOPRO AM925. Union — configuration-qualified: 18 kg — HP840, HP840-K, HL840-K, HL840, HXL8018K, HXL8018S-K; 20 kg — HL850, HP850, HL850-K, HP850-K; 25 kg — HL860, HP860, HP860-K, HL860-K, HXL8025K, HXL8025S-K. Realstar — configuration-qualified: 18 kg — KM343-K4, KM343, KM-K318, KM-K218, HSK340, KT343-K4, KT343; 20 kg — KM403-K4, KT403, KM403; 25 kg — KM503, KM-K325, KM-K225, KM503-K4, KT503.

Installation & Ordering Verification

  • Disconnect power and follow machine safety procedures before servicing door/interlock switches.

  • Confirm part number 0314009 or legacy reference E14901.

  • Compare actuator/button style, terminal layout, mounting holes, and electrical rating.

  • After installation, verify the door/interlock circuit operates correctly before returning the machine to service.
