Switch Door Micro Z-15 GQ21-B | FMB / Union / Realstar 0314007

Switch Door Micro Z-15 GQ21-B | FMB / Union / Realstar 0314007 is a door microswitch used in compatible dry-cleaning machine electrical-control and door/interlock service. Use this listing when the installed switch, machine manual, or service record matches part number 0314007, switch marking Z-15 GQ21-B, or legacy reference E1712. Before ordering, compare actuator style, terminal layout, mounting, electrical rating, and installed door/interlock position.

Back to catalog

In stock Available in Wix Stores

Product image viewer

Image 1 of 2

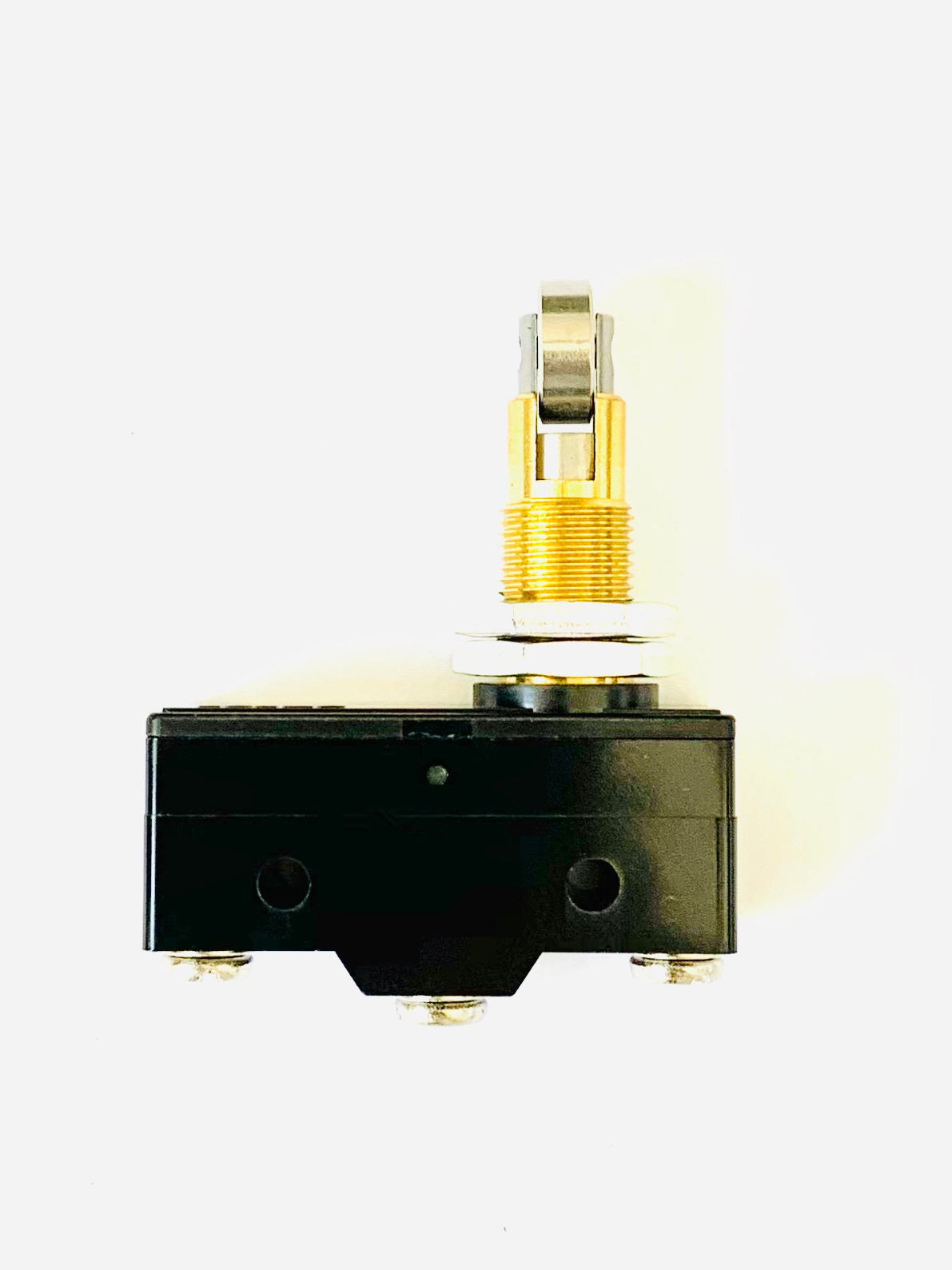

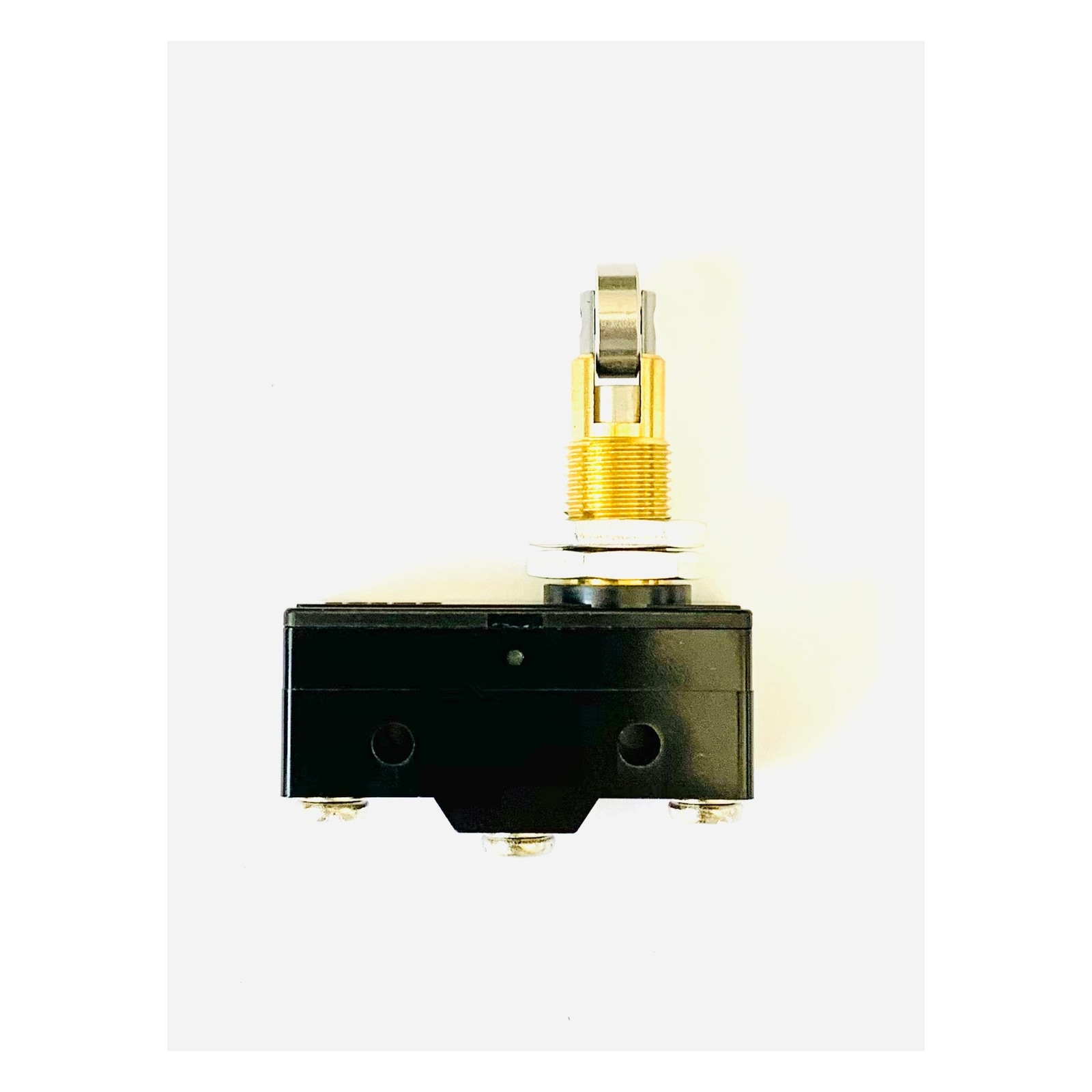

0314007 Switch Door Micro Z-15 GQ21-B | FMB / Union / Realstar 0314007 primary product photo for dry cleaning machine service
0314007 Switch Door Micro Z-15 GQ21-B | FMB / Union / Realstar 0314007 primary product photo for dry cleaning machine service

Status

Available in Wix Stores

Availability

In stock

System / Type

Electrical / controls / Switch

Fitment

Firbimatic / FMB, Union, Realstar

Quote Basis

$21.94

Technical listing

Description, specifications, cross references, and fitment

Switch Door Micro Z-15 GQ21-B | FMB / Union / Realstar 0314007 is a door microswitch used in compatible dry-cleaning machine electrical-control and door/interlock service.

Use this listing when the installed switch, machine manual, or service record matches part number 0314007, switch marking Z-15 GQ21-B, or legacy reference E1712. Before ordering, compare actuator style, terminal layout, mounting, electrical rating, and installed door/interlock position.

Technical Specifications

  • Component type: door microswitch.

  • Primary system: electrical controls and door/interlock service.

  • Part number: 0314007.

  • Switch marking/reference: Z-15 GQ21-B.

  • Legacy reference: E1712.

  • Verification points: actuator style, terminal arrangement, mounting holes, electrical rating, and installed door/interlock location.

Part Numbers & Cross References

Part Numbers

  • FMB / Firbimatic: 0314007.

  • Union: verify by installed microswitch, machine manual, and door/interlock assembly.

  • Realstar: verify by installed microswitch, machine manual, and door/interlock assembly.

Cross References

  • Legacy / old FMB reference: E1712.

  • Component reference: Z-15 GQ21-B.

  • Related but separate listing: 0314009 / E14901 uses a different microswitch path.

Machine Fitment

Machine fitment for Switch Door Micro Z-15 GQ21-B | FMB / Union / Realstar 0314007 is organized through Corbett Equipment master manufacturer and model-lineage evidence. Use this section as a fitment-reference map, then verify the installed component, machine data plate, service manual, dimensions, voltage or pressure ratings where applicable, mounting, fittings, and part-number path before ordering.

Master manufacturer / model lineage

Corbett Equipment and FXT Factory records treat FMB / Firbimatic as the master machine-model lineage for this catalog family. Union, Realstar, and Sovrana references are derivative-reference families that must be matched through the installed component, manual table, and machine-specific service record.

FMB / Firbimatic machine models and master families

  • EcoPro / ECOPRO family: ECOPRO 915, ECOPRO 915S, ECOPRO 918, ECOPRO 918S, ECOPRO AM, ECOPRO AM918.

  • Saver family: SAVER 35, SAVER 350, SAVER 35P, SAVER 350P, SAVER 40, SAVER 40P, SAVER 80SM, SAVER HYDROCARBON.

  • F-series / 18 kg family: F AS 18 LT2, F AS 18 ST2, F18 LT2, F18 LT3, F18 ST2.

  • EcoGreen family: EcoGreen 35, EcoGreen 40 / L2118, EcoGreen 50 / L2120, EcoGreen 60 / L2125, EcoGreen 80 / L2132, EcoGreen 95, EcoGreen 95SM, EcoGreen DC, EcoGreen S50 / S2120, EcoGreen Advance.

  • EcoGreen SM / AM-prefix soft-mount family: AM918, AM925, AM940, AM2118, S2118, EcoGreen 40SM, EcoGreen 60SM, EcoPro 40SM, EcoPro 60SM.

  • EcoLine family: EcoLine 35, ECOLINE, ECOLINE 16.

  • Vortex family: VORTEX 40, VORTEX 50, VORTEX 80, VORTEX 95, VORTEX L2018, VORTEX S2018, VORTEX PRIMARY, Vortex 40 Plus, Vortex 50 Plus, Vortex 80 Plus, Vortex 50 Plus Tandem.

  • Axial family: AXIAL 40, AXIAL 918, AXIAL 925, AXIAL-918.

  • System and feature lineage: Hydro-Vac, Hydro-Chill, Tri-Flow, Smart-10, SecureLock, and related recovery, filtration, distillation, cooling, and control-system records.

  • Other recovered FMB reference families: Eco-15LT3, Eco-15LT-3, L 18, L-250, L750, L2118, P16, P1567, P1705, P6241, T1838.

  • Recovered numeric model set: 035, 05, 068, 08, 09, 10, 100, 12, 120, 13, 130, 14, 15, 153, 16, 20, 208, 220, 23, 24, 25, 30, 306, 310, 32, 338, 340, 35, 36, 37, 40, 410, 45, 465, 473, 50, 520, 60, 600, 63, 70, 71, 724, 765, 80, 895, 896, 918, 95.

  • Factory/model-code references observed in recovered Corbett lineage records: HC7-18-CL, HC7-18-CLM, HC7-18-CS, HC8-18-CL, HC8-18-CLM, HC8-18-CS.

Union machine models and derivative families

  • Core Union derivative references: HXP8018C, L840, P840.

  • HL / HP / HXL family references: HL-780, HL780, HL-840, HL840K, HP840K, HXL8018K, HL-850, HL850K, HP850K, HL-860, HL860K, HP860K, HXL8025K, HL-880, HL880K, HXL8032K, HL-890, HL890K.

  • L / RS family references: L740S, L740, HL740, L750, RS-102, RS-122, RS-152.

  • Verify Union fitment by matching the installed part, Union manual table, FMB / Firbimatic master-model relationship, connection details, and service location.

Realstar machine models and derivative families

  • KM / KT derivative references: KM315, KM315-K4, KT215, KT215-K4, KM343, KM343-K4, KT343, KT343-K4.

  • Larger KM / KT references: KM403, KM403-K4, KT403, KT403-K4, KM503, KM503-K4, KT503, KM703, KM703-K4, KM803, KM803-K4.

  • RKM references: KM-36 / RKM36, KM-340 / RKM340, KM-400 / RKM400.

  • Verify Realstar fitment by matching the installed part, Realstar manual table, FMB / Firbimatic master-model relationship, connection details, and service location.

Sovrana and other derivative references

Sovrana and other derivative-model references may appear in Corbett lineage records. Treat them as research clues only unless the installed component, machine manual, and part-number path confirm the application.

Model-specific applications

For machines with the loading-door assembly equipped with E1712 / 0314007 microswitch and matching actuation/contact arrangement. Confirm exact model and serial/revision, installed component markings, dimensions, ratings and connections before ordering. Sister-model applications require the matching component and assembly configuration.

FMB / Firbimatic: EcoGreen 50 (20 kg); L2120 (20 kg); EcoGreen 60 (25 kg); L2125 (25 kg).

Union (matching component and configuration required): HL850 (20 kg); HL850-K (20 kg); HP850 (20 kg); HP850-K (20 kg); HL860 (25 kg); HL860-K (25 kg); HP860 (25 kg); HP860-K (25 kg); HXL8025K (25 kg, configuration-qualified).

Realstar (matching component and configuration required): KM403 (20 kg); KM403-K4 (20 kg); KT403 (20 kg); KM-K225 (25 kg); KM-K325 (25 kg); KM503 (25 kg); KM503-K4 (25 kg); KT503 (25 kg).

EcoGreen S-Series Applications

Loading-door microswitch application E1712 /0314007; match installed contact and actuation arrangement. Confirm exact machine model, serial/revision and installed component before ordering. Listed sister-model applications are conditional on the matching assembly and component configuration.

FMB / Firbimatic: EcoGreen Petite 40 (18 kg); S2118 (18 kg); EcoGreen Petite 50 (20 kg); S2120 (20 kg).

Union (matching component and configuration required): HL840 (18 kg); HL840-K (18 kg); HP840 (18 kg); HP840-K (18 kg); HXL8018K (18 kg); HXL8018S-K (18 kg); HL850 (20 kg); HL850-K (20 kg); HP850 (20 kg); HP850-K (20 kg).

Realstar (matching component and configuration required): HSK340 (18 kg); KM-K218 (18 kg); KM-K318 (18 kg); KM343 (18 kg); KM343-K4 (18 kg); KT343 (18 kg); KT343-K4 (18 kg); KM403 (20 kg); KM403-K4 (20 kg); KT403 (20 kg).

Additional configuration-qualified model references.

FIRBIMATIC: F18 AS LT3 (capacity confirmation required); ECO AS 15 LT3 (15 kg); ECO AS 15 ST2 (15 kg); F AS 15 LT3 (15 kg); F AS 15 ST2 (15 kg); F15 AS LT2 (15 kg); F15 AS LT3 (15 kg); F15 AS ST2 (15 kg); SAVER 15 LT2 (15 kg); SAVER 15 ST2 (15 kg); AM918 / 40SM (18 kg); ECOPRO AM918/40 (18 kg); F AS 18 LT2/LT3 (capacity confirmation required); F18 AS LT2 (18 kg); F18 AS ST2 (18 kg); SAVER 18 ST2 (18 kg); Vortex 2018 (18 kg); Vortex 2018/S (18 kg); Vortex Petite 40 (18 kg); F AS 20 LT2/LT3 (20 kg); F AS 20 ST2 (20 kg); SAVER 50 (20 kg); SAVER 50P (20 kg); VORTEX L2020 (20 kg); VORTEX S2020 (20 kg); Vortex 2020 (20 kg); Vortex 2020/S (20 kg); Vortex Petite 50 (20 kg); AM2125 (25 kg); AM925 / 60SM (25 kg); ECOPRO AM925 (25 kg); ECOPRO AM925/60 (25 kg); EcoGreen Petite 60 (25 kg); F AS 25 LT2/LT3 (25 kg); F AS 25 ST2 (25 kg); F25 AS LT2 (25 kg); F25 AS LT3 (25 kg); F25 AS ST2 (25 kg); F25 LT2 (25 kg); F25 LT3 (25 kg); F25 ST2 (25 kg); S2125 (25 kg); SAVER 25 ST2 (25 kg); SAVER 60 (25 kg); SAVER 60P (25 kg); VORTEX L2025 (25 kg); VORTEX S2025 (25 kg); Vortex 2025 (25 kg); Vortex 2025/S (25 kg); Vortex 60 (25 kg); F AS 32 LT2/LT3 (32 kg); F AS 32 ST2 (32 kg); F32 AS LT2 (32 kg); F32 AS LT3 (32 kg); F32 AS ST2 (32 kg); S2132 (32 kg); SAVER 80 (32 kg); SAVER 80P (32 kg); VORTEX L2032 (32 kg); Vortex 2032 (32 kg); AM2140 (40 kg); F AS 40 LT2/LT3 (40 kg); F AS 40 ST2 (40 kg); L2140 (40 kg); S2140 (40 kg); SAVER 90 (40 kg); SAVER 90P (40 kg); VORTEX L2040 (40 kg); Vortex 2040 (40 kg).

REALSTAR: KM-K215 (15 kg); KM-K315 (15 kg); KM-R 215 (15 kg); KM-R 315 (15 kg); KT-R 215 (15 kg); M343 (18 kg); M343UD (18 kg); R218E (18 kg); R218L (18 kg); R318L (18 kg); T343 (18 kg); T343UD (18 kg); M403 (20 kg); M403UD (20 kg); T403 (20 kg); T403UD (20 kg); M503 (25 kg); M503UD (25 kg); R225E (25 kg); R225L (25 kg); R325L (25 kg); T503 (25 kg); M703 (32 kg); M803 (40 kg); M803UD (40 kg).

UNION: XL8018E (18 kg); XL8018S (18 kg); XP8018E (18 kg); L850 (20 kg); P850 (20 kg); L860 (25 kg); P860 (25 kg); XL8025E (25 kg); XL8025S (25 kg); L880 (32 kg); L890 (40 kg).

Only for the matching installed component and machine configuration. Verify the existing listing’s part-specific dimensions, materials, ratings, mounting, connections, installation conditions and exact machine serial/revision before ordering. Existing exclusions remain controlling; model name, capacity or shared frame alone does not guarantee fitment. Shared frame or chassis does not establish identical still/control-system revisions or still-volume arrangements; confirm the installed component. Confirm the exact still/control-system revision and installed component; a model-capacity or still-volume variation does not establish interchangeability. Confirm capacity against the machine data plate and exact configuration.

Installation & Ordering Verification

  • Disconnect power and follow machine safety procedures before servicing door/interlock switches.

  • Confirm part number 0314007, Z-15 GQ21-B marking, or legacy reference E1712.

  • Compare actuator style, terminal layout, mounting holes, and electrical rating.

  • After installation, verify the door/interlock circuit operates correctly before returning the machine to service.
