Aftermarket Vacuum Gauge -1/0 Bar | 1/4 in NPT Back

Aftermarket Vacuum Gauge -1/0 Bar | 1/4 in NPT Back is a liquid-filled industrial vacuum gauge selected as an aftermarket rear-connection option for verified dry-cleaning still and distillation vacuum-gauge service.

This listing is intended for customers whose installed gauge matches the FMB / Firbimatic 0804011 style vacuum range but uses a center-back / rear connection instead of a lower bottom connection. It is not an OEM FMB, Firbimatic, Union, Realstar, or Sovrana part. It should be ordered only after confirming the installed gauge range, connection size, thread type, connection location, dial clearance, and machine/service-manual path.

Technical Specifications

• Component type: industrial vacuum gauge / rear-connection replacement option

• Gauge range: 30 in Hg to 0

• Secondary range: -1 to 0 bar

• Connection size: 1/4 in

• Connection type: NPT

• Connection gender: male

• Connection location: center back / rear

• Nominal dial size: 2 1/2 in

• Case diameter reference: about 2.65 in

• Case depth reference: about 1.21 in

• Case material: stainless steel

• Lens material: polycarbonate

• Socket / sensor / wetted material: copper alloy / copper

• Fill liquid: glycerin / liquid-filled case

• Vibration resistance: liquid-filled

• Accuracy: +/-2-1-2%

• Accuracy grade: ASME B40.100 Grade A

• Scale type: dual scale

• Includes: vent plug

• Calibration certificate: not included

• Oxygen service: not cleaned for oxygen service

• Hazardous-location rating: not rated

• Operating temperature reference: ambient -30 F to 180 F; process media 30 F to 160 F

Aftermarket Replacement Notes

This is an aftermarket industrial replacement option selected for cases where the installed gauge uses a center-back/rear connection. It should not replace a bottom-connection gauge unless the machine plumbing and panel layout are intentionally being adapted by a qualified technician after verifying clearance, fittings, and service requirements.

The liquid-filled/glycerin construction can help damp pointer movement in equipment areas where vibration or pulsation is present. The stainless case and polycarbonate lens make it a practical service replacement when the installed component specifications match.

This is not an OEM Firbimatic/FMB gauge and should not be treated as a universal replacement. Rear-connection gauges are more sensitive to panel depth, fitting clearance, and line alignment, so customers should confirm the rear thread location and available space before ordering.

Part Numbers & Cross References

Corbett Equipment

• CE-GAU-VAC-254A-BACK

Compare Against

• FMB / Firbimatic 0804011 rear/center-back option

• Omnia / F60K gauge-plate reference lane: Tavola RC1271_A

• Aftermarket replacement option only where the installed component and service requirements support this gauge configuration

Related Parts To Verify Separately

• Bottom/lower connection gauges should be ordered when the installed gauge uses a lower connection.

• 0804009 / A15572 is a separate vacuum/pressure manometer lane with positive pressure range and should not be replaced with this vacuum-only gauge.

• Pressure-only gauges should not be used where vacuum indication is required.

Machine Fitment

Master Manufacturer / Model Lineage

Use this aftermarket gauge only as a verified replacement candidate for machines whose installed gauge matches the source gauge lane, connection location, range, and service requirements. Corbett Equipment treats FMB / Firbimatic as the master builder lineage, with Union, Realstar, and other sister/derivative families researched from model-lineage evidence and verified against the installed component.

FMB / Firbimatic Machine Models And Master Families

Potential reference families include Omnia / F60K, EcoGreen, EcoGreen SM / AM-prefix machines, EcoPro / ECOPRO, Saver, EcoLine, F-series machines, 9 Series KWL / PERC, Vortex, Axial, Petite, Nevada, Hydro-Vac, Hydro-Chill, Tri-Flow, Smart-10, SecureLock, and recovered numeric FMB / Firbimatic model families where the installed gauge range, connection, mounting, and service-manual path confirm this gauge lane.

Union Machine Models And Derivative Families

Union derivative references may include HXP8018C, L840, P840, HL / HP / HXL families, HL-780, HL-840, HL-850, HL-860, HL-880, HL-890, L740S, L740, HL740, L750, RS-102, RS-122, and RS-152 where the installed gauge and service documentation confirm the same range and connection requirements.

Realstar Machine Models And Derivative Families

Realstar derivative references may include KM / KT and RKM families such as KM315, KM343, KM403, KM503, KM703, KM803, KT215, KT343, KT403, KT503, RKM36, RKM340, and RKM400 where the installed gauge and service documentation confirm the same range and connection requirements.

Sovrana And Other Derivative References

Treat Sovrana and other derivative references as verification-required lanes unless the installed machine data plate, manual, or removed gauge confirms the exact gauge range, connection size, and connection location.

Manual / Gauge-Plate Source Reference

Omnia / F60K Tavola RC1271_A shows the OEM gauge family used for comparison and verification.

Ordering Verification

Before ordering, compare the installed gauge to this listing:

• gauge range and units

• vacuum-only versus compound vacuum/pressure function

• 1/4 in NPT male thread

• center-back/rear connection location

• dial diameter, panel depth, and rear fitting clearance

• service temperature and process media

• machine model and data plate

• service manual or exploded-view reference

• photos of the removed or installed gauge

Warnings & Restrictions

• Not an OEM Firbimatic/FMB part.

• Not cleaned for oxygen service.

• Not hazardous-location rated.

• Calibration certificate not included.

• Prop 65 warning should be reviewed against final product evidence when the purchasing path or manufacturer data changes.

Aftermarket Compound Gauge -1/+10 Bar | 1/4 in NPT Bottom

Aftermarket Compound Gauge -1/+10 Bar | 1/4 in NPT Bottom is a liquid-filled industrial compound gauge selected as an aftermarket replacement option for verified dry-cleaning still and distillation gauge service where the installed component requires both vacuum and positive pressure indication.

This listing is intended for customers comparing the installed gauge to the FMB / Firbimatic 0804009 / old A15572 vacuum manometer lane. It is not an OEM FMB, Firbimatic, Union, Realstar, or Sovrana part. It should be ordered only after confirming the installed gauge range, connection size, thread type, connection location, dial clearance, and machine/service-manual path.

Technical Specifications

• Component type: industrial compound vacuum/pressure gauge replacement option

• Primary range: 30 in Hg vacuum to 0 to 150 psi

• Secondary range: 0 to 10 bar

• Connection size: 1/4 in

• Connection type: NPT

• Connection gender: male

• Connection location: bottom / lower

• Nominal dial size: 4 in

• Case diameter reference: about 4.29 in

• Case depth reference: about 1.75 in

• Overall length reference: about 5.21 in

• Case material: stainless steel

• Lens material: polycarbonate

• Socket / sensor / wetted material: copper alloy / copper

• Fill liquid: glycerin / liquid-filled case

• Vibration resistance: liquid-filled

• Accuracy: +/-1.0%

• Accuracy grade: ASME B40.100 Grade 1A

• Scale type: dual scale

• Includes: vent plug

• Calibration certificate: not included

• Oxygen service: not cleaned for oxygen service

• Hazardous-location rating: not rated

• Operating / process media temperature reference: 30 F to 160 F

Aftermarket Replacement Notes

This is an aftermarket industrial replacement option selected because it preserves the important compound-gauge behavior needed for the 0804009 style lane: vacuum indication plus positive pressure indication. The 0 to 10 bar secondary scale provides a stronger match to the OEM -1/+9 bar source-plate requirement than lower-range compound gauges.

The liquid-filled/glycerin construction can help damp pointer movement in equipment areas where vibration or pulsation is present. The stainless case, polycarbonate lens, 1/4 in NPT male bottom connection, and 1.0% accuracy make it a strong replacement candidate when the installed component specifications match.

This is not an OEM Firbimatic/FMB gauge and should not be treated as a universal replacement. The 4 in dial is larger than many compact gauges; confirm physical clearance, panel/opening fit, plumbing access, and gauge readability before ordering.

Part Numbers & Cross References

Corbett Equipment

• CE-GAU-COMP-404CF

Compare Against

• FMB / Firbimatic 0804009 / A15572

• Omnia / F60K gauge-plate reference lane: Tavola RC1271_A

• Aftermarket replacement option only where the installed component and service requirements support this gauge configuration

Related Parts To Verify Separately

• 0804011 is a separate vacuum-only lane and should not be used where positive pressure indication is required.

• Vacuum-only gauges should not be used where the installed gauge requires a compound vacuum/pressure scale.

• Pressure-only gauges should not be used where vacuum indication is required.

• Lower-range compound gauges should not be substituted for this lane unless the machine's actual operating range confirms they are sufficient.

Machine Fitment

Master Manufacturer / Model Lineage

Use this aftermarket gauge only as a verified replacement candidate for machines whose installed gauge matches the source gauge lane, connection location, range, and service requirements. Corbett Equipment treats FMB / Firbimatic as the master builder lineage, with Union, Realstar, and other sister/derivative families researched from model-lineage evidence and verified against the installed component.

FMB / Firbimatic Machine Models And Master Families

Potential reference families include Omnia / F60K, EcoGreen, EcoGreen SM / AM-prefix machines, EcoPro / ECOPRO, Saver, EcoLine, F-series machines, 9 Series KWL / PERC, Vortex, Axial, Petite, Nevada, Hydro-Vac, Hydro-Chill, Tri-Flow, Smart-10, SecureLock, and recovered numeric FMB / Firbimatic model families where the installed gauge range, connection, mounting, and service-manual path confirm this gauge lane.

Union Machine Models And Derivative Families

Union derivative references may include HXP8018C, L840, P840, HL / HP / HXL families, HL-780, HL-840, HL-850, HL-860, HL-880, HL-890, L740S, L740, HL740, L750, RS-102, RS-122, and RS-152 where the installed gauge and service documentation confirm the same range and connection requirements.

Realstar Machine Models And Derivative Families

Realstar derivative references may include KM / KT and RKM families such as KM315, KM343, KM403, KM503, KM703, KM803, KT215, KT343, KT403, KT503, RKM36, RKM340, and RKM400 where the installed gauge and service documentation confirm the same range and connection requirements.

Sovrana And Other Derivative References

Treat Sovrana and other derivative references as verification-required lanes unless the installed machine data plate, manual, or removed gauge confirms the exact gauge range, connection size, and connection location.

Manual / Gauge-Plate Source Reference

Omnia / F60K Tavola RC1271_A shows the OEM gauge family used for comparison and verification.

Ordering Verification

Before ordering, compare the installed gauge to this listing:

• compound vacuum/pressure range and units

• positive pressure requirement near the +9 bar lane

• 1/4 in NPT male thread

• bottom/lower connection location

• 4 in dial clearance and mounting space

• service temperature and process media

• machine model and data plate

• service manual or exploded-view reference

• photos of the removed or installed gauge

Warnings & Restrictions

• Not an OEM Firbimatic/FMB part.

• Not cleaned for oxygen service.

• Not hazardous-location rated.

• Calibration certificate not included.

• Prop 65 warning should be reviewed against final product evidence when the purchasing path or manufacturer data changes.

Aftermarket Vacuum Gauge -1/0 Bar | 1/4 in NPT Bottom

Aftermarket Vacuum Gauge -1/0 Bar | 1/4 in NPT Bottom is a liquid-filled industrial vacuum gauge selected as an aftermarket replacement option for verified dry-cleaning still and distillation vacuum-gauge service.

This listing is intended for customers comparing the installed gauge to the FMB / Firbimatic 0804011 style vacuum manometer lane. It is not an OEM FMB, Firbimatic, Union, Realstar, or Sovrana part. It should be ordered only after confirming the installed gauge range, connection size, thread type, connection location, dial clearance, and machine/service-manual path.

Technical Specifications

• Component type: industrial vacuum gauge / vacuum manometer replacement option

• Gauge range: 30 in Hg to 0

• Secondary range: -1 to 0 bar

• Connection size: 1/4 in

• Connection type: NPT

• Connection gender: male

• Connection location: bottom / lower

• Nominal dial size: 2 1/2 in

• Case diameter reference: about 2.65 in

• Case depth reference: about 1.2 in

• Case material: stainless steel

• Lens material: polycarbonate

• Socket / sensor / wetted material: copper alloy / copper

• Fill liquid: glycerin / liquid-filled case

• Vibration resistance: liquid-filled

• Accuracy: +/-2-1-2%

• Accuracy grade: ASME B40.100 Grade A

• Scale type: dual scale

• Includes: vent plug

• Calibration certificate: not included

• Oxygen service: not cleaned for oxygen service

• Hazardous-location rating: not rated

• Operating temperature reference: ambient -30 F to 180 F; process media 30 F to 160 F

Aftermarket Replacement Notes

This is an aftermarket industrial replacement option selected because the range, 1/4 in NPT male thread, bottom connection, liquid-filled case, stainless case, and polycarbonate lens line up well with common dry-cleaning vacuum-gauge replacement needs.

The liquid-filled/glycerin construction can help damp pointer movement in equipment areas where vibration or pulsation is present. The stainless case and polycarbonate lens make it a practical service replacement when the installed component specifications match.

This is not an OEM Firbimatic/FMB gauge and should not be treated as a universal replacement. Confirm the installed gauge is a vacuum-only gauge, not a compound vacuum/pressure gauge, and verify the range, thread, connection location, dial diameter, service temperature, panel/opening clearance, and machine model before ordering.

Part Numbers & Cross References

Corbett Equipment

• CE-GAU-VAC-254A

Compare Against

• FMB / Firbimatic 0804011

• Omnia / F60K gauge-plate reference lane: Tavola RC1271_A

• Aftermarket replacement option only where the installed component and service requirements support this gauge configuration

Related Parts To Verify Separately

• 0804009 / A15572 is a separate vacuum/pressure manometer lane with positive pressure range and should not be replaced with this vacuum-only gauge.

• Center-back/rear connection gauges should be ordered only when the installed part uses a rear connection.

• Pressure-only gauges should not be used where vacuum indication is required.

Machine Fitment

Master Manufacturer / Model Lineage

Use this aftermarket gauge only as a verified replacement candidate for machines whose installed gauge matches the source gauge lane, connection location, range, and service requirements. Corbett Equipment treats FMB / Firbimatic as the master builder lineage, with Union, Realstar, and other sister/derivative families researched from model-lineage evidence and verified against the installed component.

FMB / Firbimatic Machine Models And Master Families

Potential reference families include Omnia / F60K, EcoGreen, EcoGreen SM / AM-prefix machines, EcoPro / ECOPRO, Saver, EcoLine, F-series machines, 9 Series KWL / PERC, Vortex, Axial, Petite, Nevada, Hydro-Vac, Hydro-Chill, Tri-Flow, Smart-10, SecureLock, and recovered numeric FMB / Firbimatic model families where the installed gauge range, connection, mounting, and service-manual path confirm this gauge lane.

Union Machine Models And Derivative Families

Union derivative references may include HXP8018C, L840, P840, HL / HP / HXL families, HL-780, HL-840, HL-850, HL-860, HL-880, HL-890, L740S, L740, HL740, L750, RS-102, RS-122, and RS-152 where the installed gauge and service documentation confirm the same range and connection requirements.

Realstar Machine Models And Derivative Families

Realstar derivative references may include KM / KT and RKM families such as KM315, KM343, KM403, KM503, KM703, KM803, KT215, KT343, KT403, KT503, RKM36, RKM340, and RKM400 where the installed gauge and service documentation confirm the same range and connection requirements.

Sovrana And Other Derivative References

Treat Sovrana and other derivative references as verification-required lanes unless the installed machine data plate, manual, or removed gauge confirms the exact gauge range, connection size, and connection location.

Manual / Gauge-Plate Source Reference

Omnia / F60K Tavola RC1271_A shows the OEM gauge family used for comparison and verification.

Ordering Verification

Before ordering, compare the installed gauge to this listing:

• gauge range and units

• vacuum-only versus compound vacuum/pressure function

• 1/4 in NPT male thread

• bottom/lower connection location

• dial diameter and panel/opening clearance

• service temperature and process media

• machine model and data plate

• service manual or exploded-view reference

• photos of the removed or installed gauge

Warnings & Restrictions

• Not an OEM Firbimatic/FMB part.

• Not cleaned for oxygen service.

• Not hazardous-location rated.

• Calibration certificate not included.

• Prop 65 warning should be reviewed against final product evidence when the purchasing path or manufacturer data changes.

Vacuum Manometer -1/+0.6 Bar | FMB / Firbimatic 0804011

Vacuum Manometer -1/+0.6 Bar | FMB / Firbimatic 0804011 is an OEM-reference vacuum manometer for verified FMB / Firbimatic dry-cleaning still, distillation, and vacuum-service applications where the installed gauge and service manual match part 0804011.

This listing is built from the Omnia / F60K manual plate evidence and Corbett historical price-list records. Confirm the installed gauge range, bottom connection, face markings, machine manual, and service location before ordering.

Technical Specifications

• Component type: vacuum manometer / dry-cleaning machine gauge

• Primary part number: 0804011

• Gauge range shown in source plate: -1/+0.6 BAR

• Manual source: Omnia / F60K general spare-parts gauge plate, Tavola RC1271_A

• Service area: still, distillation, vacuum, and machine instrumentation service where the manual and installed part match

• Evidence status: manual-backed product candidate with historical price-list support

• Condition: new replacement part when stocked; verify current availability before ordering

Part Numbers & Cross References

Use these references for identification and verification. Do not substitute another gauge by appearance alone.

FMB / Firbimatic

• 0804011

• -1/+0.6 BAR vacuum-manometer plate reference on Tavola RC1271_A

Related Gauge Family References

• 0406002: 0-12 BAR gauge shown on the same source plate

• 0804001: 0-4 BAR gauge shown on the same source plate

• 0804012: 0-16 BAR gauge shown on the same source plate

• 0804013: 0-250 BAR gauge/manual-plate reference; keep separate from the current pressure-stat catalog conflict

• 0804017: 0-10 BAR gauge shown on the same source plate

• 0804018: 0-4 BAR gauge shown on the same source plate

Machine Fitment

Machine fitment for Vacuum Manometer -1/+0.6 Bar | FMB / Firbimatic 0804011 is organized through Corbett Equipment master manufacturer and model-lineage evidence. Use this section as a fitment-reference map, then verify the installed gauge range, face markings, bottom connection, thread size, dial size, mounting clearance, machine data plate, service manual, and service location before ordering.

Master manufacturer / model lineage

Corbett Equipment and FXT Factory records treat FMB / Firbimatic as the master machine-model lineage for this gauge/manometer catalog family. Union, Realstar, and Sovrana references are derivative-reference families that must be matched through the installed component, manual table, and machine-specific service record.

FMB / Firbimatic machine models and master families

Direct manual-backed gauge source: Omnia, Omnia 60, OMNIA F60K, F60K, F60 K, F60 S.E., F60 SE, F 60.

EcoPro / ECOPRO family: ECOPRO 915, ECOPRO 915S, ECOPRO 918, ECOPRO 918S, ECOPRO AM, ECOPRO AM918.

Saver family: SAVER 35, SAVER 350, SAVER 35P, SAVER 350P, SAVER 40, SAVER 40P, SAVER 80SM, SAVER HYDROCARBON.

F-series / 18 kg family: F AS 18 LT2, F AS 18 ST2, F18 LT2, F18 LT3, F18 ST2.

EcoGreen family: EcoGreen, EcoGreen Petite, EcoGreen 35, EcoGreen 40, L2118, EcoGreen 50, L2120, EcoGreen 60, L2125, EcoGreen 80, L2132, L2140, EcoGreen 95, EcoGreen 95SM, EcoGreen DC, EcoGreen S50, S2118, S2120, EcoGreen Advance.

EcoGreen SM / AM-prefix soft-mount family: AM918, AM925, AM940, AM2118, S2118, EcoGreen 40SM, EcoGreen 60SM, EcoPro 40SM, EcoPro 60SM.

EcoLine family: EcoLine 35, ECOLINE, ECOLINE 16.

9 Series and solvent-family lineage: 9 Series KWL, EP35, EP35 F.D., EP40, EP 40, EP50, EP 50, EP60, EP 60, EP80, EP 80, EP95, EP 95, 9 Series PERC.

Vortex family: VORTEX 40, VORTEX 50, VORTEX 60, VORTEX 80, VORTEX 95, VORTEX L2018, VORTEX S2018, VORTEX PRIMARY, Vortex Petite, Vortex 40 Plus, Vortex 50 Plus, Vortex 80 Plus, Vortex 50 Plus Tandem, P40, P50.

Axial family: AXIAL 40, AXIAL 50, AXIAL 60, AXIAL 80, AXIAL 95, AXIAL 918, AXIAL 925, AXIAL-918.

Petite, Nevada, and recovered FMB reference families: PETITE 35, PETITE 40, Petite 35, Petite 40, 912L, 915L, NEVADA35, NEVADA70, Eco-15LT3, Eco-15LT-3, L 18, L-250, L750, P16, P1567, P1705, P6241, T1838.

System and feature lineage: Hydro-Vac, Hydro-Chill, Tri-Flow, Smart-10, SecureLock, Computer Smart+Combi KWL, Computer Smart+Combi PERC.

Recovered numeric model set: 035, 05, 068, 08, 09, 10, 100, 12, 120, 13, 130, 14, 15, 153, 16, 20, 208, 220, 23, 24, 25, 30, 306, 310, 32, 338, 340, 35, 36, 37, 40, 410, 45, 465, 473, 50, 520, 60, 600, 63, 70, 71, 724, 765, 80, 895, 896, 918, 95.

Union machine models and derivative families

Core Union derivative references: HXP8018C, L840, P840.

HL / HP / HXL family references: HL-780, HL780, HL-840, HL840K, HP840K, HXL8018K, HL-850, HL850K, HP850K, HL-860, HL860K, HP860K, HXL8025K, HL-880, HL880K, HXL8032K, HL-890, HL890K.

L / RS family references: L740S, L740, HL740, L750, RS-102, RS-122, RS-152.

Verify Union fitment by matching the installed gauge/manometer, gauge range, Union manual table, FMB / Firbimatic master-model relationship, connection details, and service location before treating this derivative lane as a confirmed application.

Realstar machine models and derivative families

KM / KT derivative references: KM315, KM315-K4, KT215, KT215-K4, KM343, KM343-K4, KT343, KT343-K4.

Larger KM / KT references: KM403, KM403-K4, KT403, KT403-K4, KM503, KM503-K4, KT503, KM703, KM703-K4, KM803, KM803-K4.

RKM references: KM-36 / RKM36, KM-340 / RKM340, KM-400 / RKM400.

Verify Realstar fitment by matching the installed gauge/manometer, gauge range, Realstar manual table, FMB / Firbimatic master-model relationship, connection details, and service location before treating this derivative lane as a confirmed application.

Sovrana and other derivative references

Sovrana and other derivative-model references may appear in Corbett lineage records, but no exact Sovrana gauge/manometer model list is confirmed for 0804011 in the current source index. Treat this as a research lane only unless the installed component, machine manual, and part-number path confirm the application.

Factory / model-lineage reference: HC7-18-CL, HC7-18-CLM, HC7-18-CS, HC8-18-CL, HC8-18-CLM, HC8-18-CS.

Manual / gauge-plate source reference: Omnia / F60K Tavola RC1271_A.

Ordering Verification

• Match the installed gauge part number, face range, bottom connection, thread size, dial size, and mounting clearance.

• Compare the machine data plate and manual table against the installed gauge before ordering.

• Do not substitute this gauge with 0804012, 0804013, or the domestic aftermarket gauge lane unless range, connection, mount, and service conditions are confirmed.

• Send photos of the old gauge, machine tag, and manual reference if fitment is uncertain.

Vacuum Manometer -1/+9 Bar | FMB / Firbimatic 0804009

Vacuum Manometer -1/+9 Bar | FMB / Firbimatic 0804009 is an OEM-reference vacuum manometer for verified FMB / Firbimatic dry-cleaning still, distillation, and vacuum-service applications where the installed gauge and service manual match part 0804009.

This listing is built from the Omnia / F60K manual plate evidence and Corbett historical price-list records. Confirm the installed gauge range, bottom connection, face markings, machine manual, and service location before ordering.

Technical Specifications

• Component type: vacuum manometer / dry-cleaning machine gauge

• Primary part number: 0804009

• Old FMB / Firbimatic reference: A15572

• Gauge range shown in source plate: -1/+9 BAR

• Manual source: Omnia / F60K general spare-parts gauge plate, Tavola RC1271_A

• Service area: still, distillation, vacuum, and machine instrumentation service where the manual and installed part match

• Evidence status: manual-backed product candidate with historical price-list support

• Condition: new replacement part when stocked; verify current availability before ordering

Part Numbers & Cross References

Use these references for identification and verification. Do not substitute another gauge by appearance alone.

FMB / Firbimatic

• 0804009

• Old FMB / Firbimatic reference: A15572

• -1/+9 BAR vacuum-manometer plate reference on Tavola RC1271_A

Related Gauge Family References

• 0406002: 0-12 BAR gauge shown on the same source plate

• 0804001: 0-4 BAR gauge shown on the same source plate

• 0804012: 0-16 BAR gauge shown on the same source plate

• 0804013: 0-250 BAR gauge/manual-plate reference; keep separate from the current pressure-stat catalog conflict

• 0804017: 0-10 BAR gauge shown on the same source plate

• 0804018: 0-4 BAR gauge shown on the same source plate

Machine Fitment

Machine fitment for Vacuum Manometer -1/+9 Bar | FMB / Firbimatic 0804009 is organized through Corbett Equipment master manufacturer and model-lineage evidence. Use this section as a fitment-reference map, then verify the installed gauge range, face markings, bottom connection, thread size, dial size, mounting clearance, machine data plate, service manual, and service location before ordering.

Master manufacturer / model lineage

Corbett Equipment and FXT Factory records treat FMB / Firbimatic as the master machine-model lineage for this gauge/manometer catalog family. Union, Realstar, and Sovrana references are derivative-reference families that must be matched through the installed component, manual table, and machine-specific service record.

FMB / Firbimatic machine models and master families

Direct manual-backed gauge source: Omnia, Omnia 60, OMNIA F60K, F60K, F60 K, F60 S.E., F60 SE, F 60.

EcoPro / ECOPRO family: ECOPRO 915, ECOPRO 915S, ECOPRO 918, ECOPRO 918S, ECOPRO AM, ECOPRO AM918.

Saver family: SAVER 35, SAVER 350, SAVER 35P, SAVER 350P, SAVER 40, SAVER 40P, SAVER 80SM, SAVER HYDROCARBON.

F-series / 18 kg family: F AS 18 LT2, F AS 18 ST2, F18 LT2, F18 LT3, F18 ST2.

EcoGreen family: EcoGreen, EcoGreen Petite, EcoGreen 35, EcoGreen 40, L2118, EcoGreen 50, L2120, EcoGreen 60, L2125, EcoGreen 80, L2132, L2140, EcoGreen 95, EcoGreen 95SM, EcoGreen DC, EcoGreen S50, S2118, S2120, EcoGreen Advance.

EcoGreen SM / AM-prefix soft-mount family: AM918, AM925, AM940, AM2118, S2118, EcoGreen 40SM, EcoGreen 60SM, EcoPro 40SM, EcoPro 60SM.

EcoLine family: EcoLine 35, ECOLINE, ECOLINE 16.

9 Series and solvent-family lineage: 9 Series KWL, EP35, EP35 F.D., EP40, EP 40, EP50, EP 50, EP60, EP 60, EP80, EP 80, EP95, EP 95, 9 Series PERC.

Vortex family: VORTEX 40, VORTEX 50, VORTEX 60, VORTEX 80, VORTEX 95, VORTEX L2018, VORTEX S2018, VORTEX PRIMARY, Vortex Petite, Vortex 40 Plus, Vortex 50 Plus, Vortex 80 Plus, Vortex 50 Plus Tandem, P40, P50.

Axial family: AXIAL 40, AXIAL 50, AXIAL 60, AXIAL 80, AXIAL 95, AXIAL 918, AXIAL 925, AXIAL-918.

Petite, Nevada, and recovered FMB reference families: PETITE 35, PETITE 40, Petite 35, Petite 40, 912L, 915L, NEVADA35, NEVADA70, Eco-15LT3, Eco-15LT-3, L 18, L-250, L750, P16, P1567, P1705, P6241, T1838.

System and feature lineage: Hydro-Vac, Hydro-Chill, Tri-Flow, Smart-10, SecureLock, Computer Smart+Combi KWL, Computer Smart+Combi PERC.

Recovered numeric model set: 035, 05, 068, 08, 09, 10, 100, 12, 120, 13, 130, 14, 15, 153, 16, 20, 208, 220, 23, 24, 25, 30, 306, 310, 32, 338, 340, 35, 36, 37, 40, 410, 45, 465, 473, 50, 520, 60, 600, 63, 70, 71, 724, 765, 80, 895, 896, 918, 95.

Union machine models and derivative families

Core Union derivative references: HXP8018C, L840, P840.

HL / HP / HXL family references: HL-780, HL780, HL-840, HL840K, HP840K, HXL8018K, HL-850, HL850K, HP850K, HL-860, HL860K, HP860K, HXL8025K, HL-880, HL880K, HXL8032K, HL-890, HL890K.

L / RS family references: L740S, L740, HL740, L750, RS-102, RS-122, RS-152.

Verify Union fitment by matching the installed gauge/manometer, gauge range, Union manual table, FMB / Firbimatic master-model relationship, connection details, and service location before treating this derivative lane as a confirmed application.

Realstar machine models and derivative families

KM / KT derivative references: KM315, KM315-K4, KT215, KT215-K4, KM343, KM343-K4, KT343, KT343-K4.

Larger KM / KT references: KM403, KM403-K4, KT403, KT403-K4, KM503, KM503-K4, KT503, KM703, KM703-K4, KM803, KM803-K4.

RKM references: KM-36 / RKM36, KM-340 / RKM340, KM-400 / RKM400.

Verify Realstar fitment by matching the installed gauge/manometer, gauge range, Realstar manual table, FMB / Firbimatic master-model relationship, connection details, and service location before treating this derivative lane as a confirmed application.

Sovrana and other derivative references

Sovrana and other derivative-model references may appear in Corbett lineage records, but no exact Sovrana gauge/manometer model list is confirmed for 0804009 in the current source index. Treat this as a research lane only unless the installed component, machine manual, and part-number path confirm the application.

Factory / model-lineage reference: HC7-18-CL, HC7-18-CLM, HC7-18-CS, HC8-18-CL, HC8-18-CLM, HC8-18-CS.

Manual / gauge-plate source reference: Omnia / F60K Tavola RC1271_A.

Ordering Verification

• Match the installed gauge part number, face range, bottom connection, thread size, dial size, and mounting clearance.

• Compare the machine data plate and manual table against the installed gauge before ordering.

• Do not substitute this gauge with 0804012, 0804013, or the domestic aftermarket gauge lane unless range, connection, mount, and service conditions are confirmed.

• Send photos of the old gauge, machine tag, and manual reference if fitment is uncertain.

Carbon Steel Gauge Syphon | 1/4 in MNPT x 1/4 in MNPT is a schedule 80 carbon steel pressure-gauge syphon for compatible steam and high-temperature gauge-protection service. This listing is written as a technical Corbett Equipment catalog listing for dry-cleaning shops, commercial utility service, equipment maintenance, water treatment, refrigeration/HVACR service, pneumatic systems, steam/gauge service, and industrial maintenance where the installed component matches the specifications below.

Use this listing only after comparing the installed part, physical dimensions, connection style, material, operating conditions, and machine or system documentation.

Technical Specifications

• Component type: pressure-gauge siphon / syphon / pigtail.

• Material: steel.

• Gauge case material reference: schedule 80 carbon steel.

• Connection path: 1/4 in male x 1/4 in male NPT.

• Connection size: 1/4 in.

• Connection type: NPT.

• Connection thread size: 1/4 in.

• Tube length: 4-9/16 in.

• Tube style: pigtail.

• Construction: seamless.

• Maximum internal pressure: 1,650 psi.

• Pressure/temperature reference: 1,650 psi at 630 Degrees F.

• Compatible process media: steam.

• Application: steam installations and applications above 100 Degrees F.

• Standards reference: CRN registered.

• NSF certified: yes.

• Corrosion resistance: not corrosion resistant.

• Ordering check: verify thread orientation, installed clearance, pressure, temperature, media, code/service requirements, and gauge compatibility before ordering.

Related Parts & Compatibility Notes

• Do not substitute for brass plumbing fittings, refrigeration adapters, or the pressure gauge itself.

• Use only where the installed gauge assembly requires a 1/4 in NPT steel pigtail syphon for steam or high-temperature service.

Warnings & Restrictions

• This steel syphon is not corrosion resistant; verify process media, environment, and corrosion exposure before installation.

• Use qualified service personnel and confirm code, pressure, temperature, steam-service, and gauge-protection requirements before installation.

Machine Fitment & Industrial Use

Use for compatible steam and high-temperature pressure-gauge protection where the installed gauge connection and process conditions match the listed specifications.

For dry-cleaning equipment, verify against the actual machine, valve panel, boiler or water-treatment system, gauge assembly, filtration system, utility line, pneumatic circuit, refrigeration service port, or service hose before ordering. If the product is being used outside dry cleaning, confirm compatibility with the application and operating conditions before installation.

Installation & Ordering Verification

• Compare the product photo, installed component, size, connection style, and service location before ordering.

• Confirm pressure, flow, temperature, material, chemical exposure, media compatibility, clearance, and mounting for the actual system.

• Use qualified service personnel when installing pressure, steam, refrigeration, water, electrical, pneumatic, or equipment-control components.

• Send photos of the installed part, machine tag, and service location if fitment is uncertain.

This still float safety switch, part 0315001, is used in the still/distillation level safety circuit on compatible FMB / Firbimatic, Union, and Realstar dry cleaning machines.

The switch helps monitor the level condition in the still or distiller area and provides a safety/control signal so the machine can avoid unsafe still operation when the float signal or liquid level is not correct.

Use this listing where the original machine record, installed component, and service manual match 0315001, old FMB / Firbimatic A5981, or C1400003. Before ordering, compare the installed switch, float/rod assembly, wiring, mounting, and manual table reference.

Technical Specifications

• Component type: still/distiller level safety float switch.

• Service function: float-operated level safety/control signal for the still or distillation section.

• Common listing description: Still Level Safety Float Switch.

• Additional manual/price-list wording: Still Float Switch, Still Float, Floating Level Control, and Interruttore a Galleggiante.

• Primary FMB / Firbimatic part reference: 0315001.

• Legacy FMB / Firbimatic reference: A5981.

• Component/reference number found with this listing: C1400003.

• Manual table context: 4-CEL 0315001. Related rod/float assembly reference 2-ASTA 40A763/PGT may help physical verification, but must be checked against the installed assembly before ordering.

• Do not substitute nearby level/float references such as 0315008, 0315013, 0315014, 0315015, 0315017, or 0315018 unless the machine manual and installed component confirm the match.

Part Numbers & Cross References

Use this section to separate direct part numbers from cross-reference and verification notes. Always confirm the installed component, machine manual, still/distiller location, wiring, mounting, and physical float/rod arrangement before ordering.

Part Numbers

FMB / Firbimatic

• 0315001

• 031-5001

• A5981

• C1400003

• 4-CEL

Union

• 0315001

• 031-5001

Realstar

• 0315001

• 031-5001

Cross References

FMB / Firbimatic

• Old FMB / Firbimatic reference A5981 is listed with 0315001 as Still Float Switch / Still Level Safety Float Switch.

• C1400003 appears as a component/reference number tied to the Still Level Safety Float Switch description.

• Manual wording includes 4-CEL 0315001 and Interruttore a Galleggiante for the float-switch table entry.

• 2-ASTA 40A763/PGT is a related rod/assembly context reference for physical verification only; do not treat it as a substitute part without matching the installed assembly.

Union

• Union manual/OCR records show 0315001 in still/distiller table contexts. Compare against FMB / Firbimatic 0315001, old A5981, and C1400003 when the installed switch and machine manual match.

Realstar

• Realstar manual/OCR records show 0315001 in KM/RKM, M/RM, and RS-series contexts. Compare against FMB / Firbimatic 0315001, old A5981, and C1400003 when the installed switch and machine manual match.

Machine Fitment

Machine fitment for Still Float Safety Switch | FMB / Union / Realstar 0315001 is organized through Corbett Equipment master manufacturer and model-lineage evidence. Use this section as a fitment-reference map, then verify the installed component, machine data plate, service manual, dimensions, voltage or pressure ratings where applicable, mounting, fittings, and part-number path before ordering.

Master manufacturer / model lineage

Corbett Equipment and FXT Factory records treat FMB / Firbimatic as the master machine-model lineage for this catalog family. Union, Realstar, and Sovrana references are derivative-reference families that must be matched through the installed component, manual table, and machine-specific service record.

FMB / Firbimatic machine models and master families

• EcoPro / ECOPRO family: ECOPRO 915, ECOPRO 915S, ECOPRO 918, ECOPRO 918S, ECOPRO AM, ECOPRO AM918.

• Saver family: SAVER 35, SAVER 350, SAVER 35P, SAVER 350P, SAVER 40, SAVER 40P, SAVER 80SM, SAVER HYDROCARBON.

• F-series / 18 kg family: F AS 18 LT2, F AS 18 ST2, F18 LT2, F18 LT3, F18 ST2.

• EcoGreen family: EcoGreen 35, EcoGreen 40 / L2118, EcoGreen 50 / L2120, EcoGreen 60 / L2125, EcoGreen 80 / L2132, EcoGreen 95, EcoGreen 95SM, EcoGreen DC, EcoGreen S50 / S2120, EcoGreen Advance.

• EcoGreen SM / AM-prefix soft-mount family: AM918, AM925, AM940, AM2118, S2118, EcoGreen 40SM, EcoGreen 60SM, EcoPro 40SM, EcoPro 60SM.

• EcoLine family: EcoLine 35, ECOLINE, ECOLINE 16.

• Vortex family: VORTEX 40, VORTEX 50, VORTEX 80, VORTEX 95, VORTEX L2018, VORTEX S2018, VORTEX PRIMARY, Vortex 40 Plus, Vortex 50 Plus, Vortex 80 Plus, Vortex 50 Plus Tandem.

• Axial family: AXIAL 40, AXIAL 918, AXIAL 925, AXIAL-918.

• System and feature lineage: Hydro-Vac, Hydro-Chill, Tri-Flow, Smart-10, SecureLock, and related recovery, filtration, distillation, cooling, and control-system records.

• Other recovered FMB reference families: Eco-15LT3, Eco-15LT-3, L 18, L-250, L750, L2118, P16, P1567, P1705, P6241, T1838.

• Recovered numeric model set: 035, 05, 068, 08, 09, 10, 100, 12, 120, 13, 130, 14, 15, 153, 16, 20, 208, 220, 23, 24, 25, 30, 306, 310, 32, 338, 340, 35, 36, 37, 40, 410, 45, 465, 473, 50, 520, 60, 600, 63, 70, 71, 724, 765, 80, 895, 896, 918, 95.

• Factory/model-code references observed in recovered Corbett lineage records: HC7-18-CL, HC7-18-CLM, HC7-18-CS, HC8-18-CL, HC8-18-CLM, HC8-18-CS.

Union machine models and derivative families

• Core Union derivative references: HXP8018C, L840, P840.

• HL / HP / HXL family references: HL-780, HL780, HL-840, HL840K, HP840K, HXL8018K, HL-850, HL850K, HP850K, HL-860, HL860K, HP860K, HXL8025K, HL-880, HL880K, HXL8032K, HL-890, HL890K.

• L / RS family references: L740S, L740, HL740, L750, RS-102, RS-122, RS-152.

• Verify Union fitment by matching the installed part, Union manual table, FMB / Firbimatic master-model relationship, connection details, and service location.

Realstar machine models and derivative families

• KM / KT derivative references: KM315, KM315-K4, KT215, KT215-K4, KM343, KM343-K4, KT343, KT343-K4.

• Larger KM / KT references: KM403, KM403-K4, KT403, KT403-K4, KM503, KM503-K4, KT503, KM703, KM703-K4, KM803, KM803-K4.

• RKM references: KM-36 / RKM36, KM-340 / RKM340, KM-400 / RKM400.

• Verify Realstar fitment by matching the installed part, Realstar manual table, FMB / Firbimatic master-model relationship, connection details, and service location.

Sovrana and other derivative references

Sovrana and other derivative-model references may appear in Corbett lineage records. Treat them as research clues only unless the installed component, machine manual, and part-number path confirm the application.

Ordering Verification

Confirm the installed part number, legacy A5981 reference, C1400003 reference, visible component markings, physical float/rod arrangement, wiring, connector style, mounting, and still/distiller location before ordering.

Match the machine data plate and service manual table against the installed switch. This listing is for the still float safety switch / floating level control, not the other nearby short/long float switches or preseparator level controls.

For FMB / Firbimatic, Union, and Realstar machines, compare photos of the installed component and the manual exploded-view/table reference. Contact Corbett Equipment if you need help verifying the correct switch before ordering.

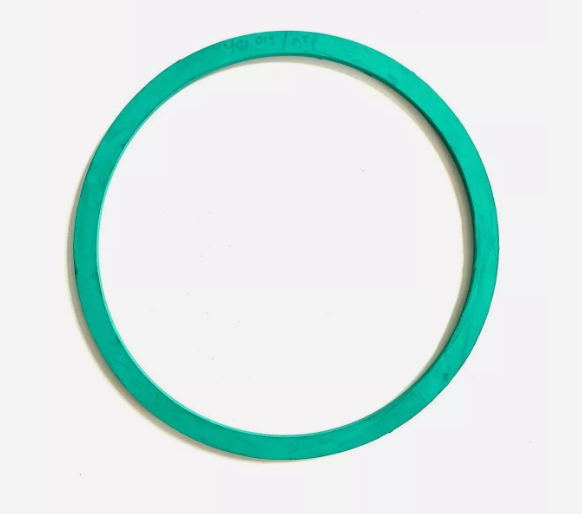

Still Door Gasket Viton 402015/MTP Dry Cleaning Part 402015 / Old G13883.

Viton still-door gasket 402015 is used to seal the still door on compatible FMB / Firbimatic, Union, and Realstar dry-cleaning machine distillation systems.

A worn or incorrect still-door gasket can cause vapor, solvent, or vacuum sealing problems around the still door and can reduce proper distillation performance.

Use this listing when the installed gasket and service records match FMB / Firbimatic 402015, MTP, or legacy references G13883 / G13883A.

Technical Specifications

• Component type: still-door gasket / seal.

• Material reference: Viton.

• Primary system: still, distillation, heating, and solvent-recovery sealing.

• Primary application: dry-cleaning machine still-door service and repair.

• Verification points: gasket profile, still-door size, gasket material, machine model, and installed component dimensions.

• Evidence source: Firbimatic parts database/manual evidence for 402015 and legacy references G13883 / G13883A.

Part Numbers & Cross References

Part Numbers

FMB / Firbimatic

• 402015

Union

• Not confirmed in the current Corbett Equipment database. Verify by installed component and service manual.

Realstar

• Not confirmed in the current Corbett Equipment database. Verify by installed component and service manual.

Cross References

FMB / Firbimatic

• MTP

• Legacy reference G13883

• Legacy reference G13883A

Union

• Verify by shared FMB / Union still-door lineage, gasket dimensions, and Union service manual.

Realstar

• Verify by shared FMB / Realstar still-door lineage, gasket dimensions, and Realstar service manual.

Machine Fitment

Machine fitment for Still Door Gasket Viton 402015/MTP | FMB 402015/MTP/Union 402015/RS 402015 is organized through Corbett Equipment master manufacturer and model-lineage evidence. Use this section as a fitment-reference map, then verify the installed component, machine data plate, service manual, dimensions, voltage or pressure ratings where applicable, mounting, fittings, and part-number path before ordering.

Master manufacturer / model lineage

Corbett Equipment and FXT Factory records treat FMB / Firbimatic as the master machine-model lineage for this catalog family. Union, Realstar, and Sovrana references are derivative-reference families that must be matched through the installed component, manual table, and machine-specific service record.

FMB / Firbimatic machine models and master families

• EcoPro / ECOPRO family: ECOPRO 915, ECOPRO 915S, ECOPRO 918, ECOPRO 918S, ECOPRO AM, ECOPRO AM918.

• Saver family: SAVER 35, SAVER 350, SAVER 35P, SAVER 350P, SAVER 40, SAVER 40P, SAVER 80SM, SAVER HYDROCARBON.

• F-series / 18 kg family: F AS 18 LT2, F AS 18 ST2, F18 LT2, F18 LT3, F18 ST2.

• EcoGreen family: EcoGreen 35, EcoGreen 40 / L2118, EcoGreen 50 / L2120, EcoGreen 60 / L2125, EcoGreen 80 / L2132, EcoGreen 95, EcoGreen 95SM, EcoGreen DC, EcoGreen S50 / S2120, EcoGreen Advance.

• EcoGreen SM / AM-prefix soft-mount family: AM918, AM925, AM940, AM2118, S2118, EcoGreen 40SM, EcoGreen 60SM, EcoPro 40SM, EcoPro 60SM.

• EcoLine family: EcoLine 35, ECOLINE, ECOLINE 16.

• Vortex family: VORTEX 40, VORTEX 50, VORTEX 80, VORTEX 95, VORTEX L2018, VORTEX S2018, VORTEX PRIMARY, Vortex 40 Plus, Vortex 50 Plus, Vortex 80 Plus, Vortex 50 Plus Tandem.

• Axial family: AXIAL 40, AXIAL 918, AXIAL 925, AXIAL-918.

• System and feature lineage: Hydro-Vac, Hydro-Chill, Tri-Flow, Smart-10, SecureLock, and related recovery, filtration, distillation, cooling, and control-system records.

• Other recovered FMB reference families: Eco-15LT3, Eco-15LT-3, L 18, L-250, L750, L2118, P16, P1567, P1705, P6241, T1838.

• Recovered numeric model set: 035, 05, 068, 08, 09, 10, 100, 12, 120, 13, 130, 14, 15, 153, 16, 20, 208, 220, 23, 24, 25, 30, 306, 310, 32, 338, 340, 35, 36, 37, 40, 410, 45, 465, 473, 50, 520, 60, 600, 63, 70, 71, 724, 765, 80, 895, 896, 918, 95.

• Factory/model-code references observed in recovered Corbett lineage records: HC7-18-CL, HC7-18-CLM, HC7-18-CS, HC8-18-CL, HC8-18-CLM, HC8-18-CS.

Union machine models and derivative families

• Core Union derivative references: HXP8018C, L840, P840.

• HL / HP / HXL family references: HL-780, HL780, HL-840, HL840K, HP840K, HXL8018K, HL-850, HL850K, HP850K, HL-860, HL860K, HP860K, HXL8025K, HL-880, HL880K, HXL8032K, HL-890, HL890K.

• L / RS family references: L740S, L740, HL740, L750, RS-102, RS-122, RS-152.

• Verify Union fitment by matching the installed part, Union manual table, FMB / Firbimatic master-model relationship, connection details, and service location.

Realstar machine models and derivative families

• KM / KT derivative references: KM315, KM315-K4, KT215, KT215-K4, KM343, KM343-K4, KT343, KT343-K4.

• Larger KM / KT references: KM403, KM403-K4, KT403, KT403-K4, KM503, KM503-K4, KT503, KM703, KM703-K4, KM803, KM803-K4.

• RKM references: KM-36 / RKM36, KM-340 / RKM340, KM-400 / RKM400.

• Verify Realstar fitment by matching the installed part, Realstar manual table, FMB / Firbimatic master-model relationship, connection details, and service location.

Sovrana and other derivative references

Sovrana and other derivative-model references may appear in Corbett lineage records. Treat them as research clues only unless the installed component, machine manual, and part-number path confirm the application.

Ordering Verification

Confirm the installed still-door gasket profile, material, door size, machine model, and service manual before ordering. Contact Corbett Equipment if you need help matching this gasket to a FMB / Firbimatic, Union, Realstar, or related FMB-lineage machine.

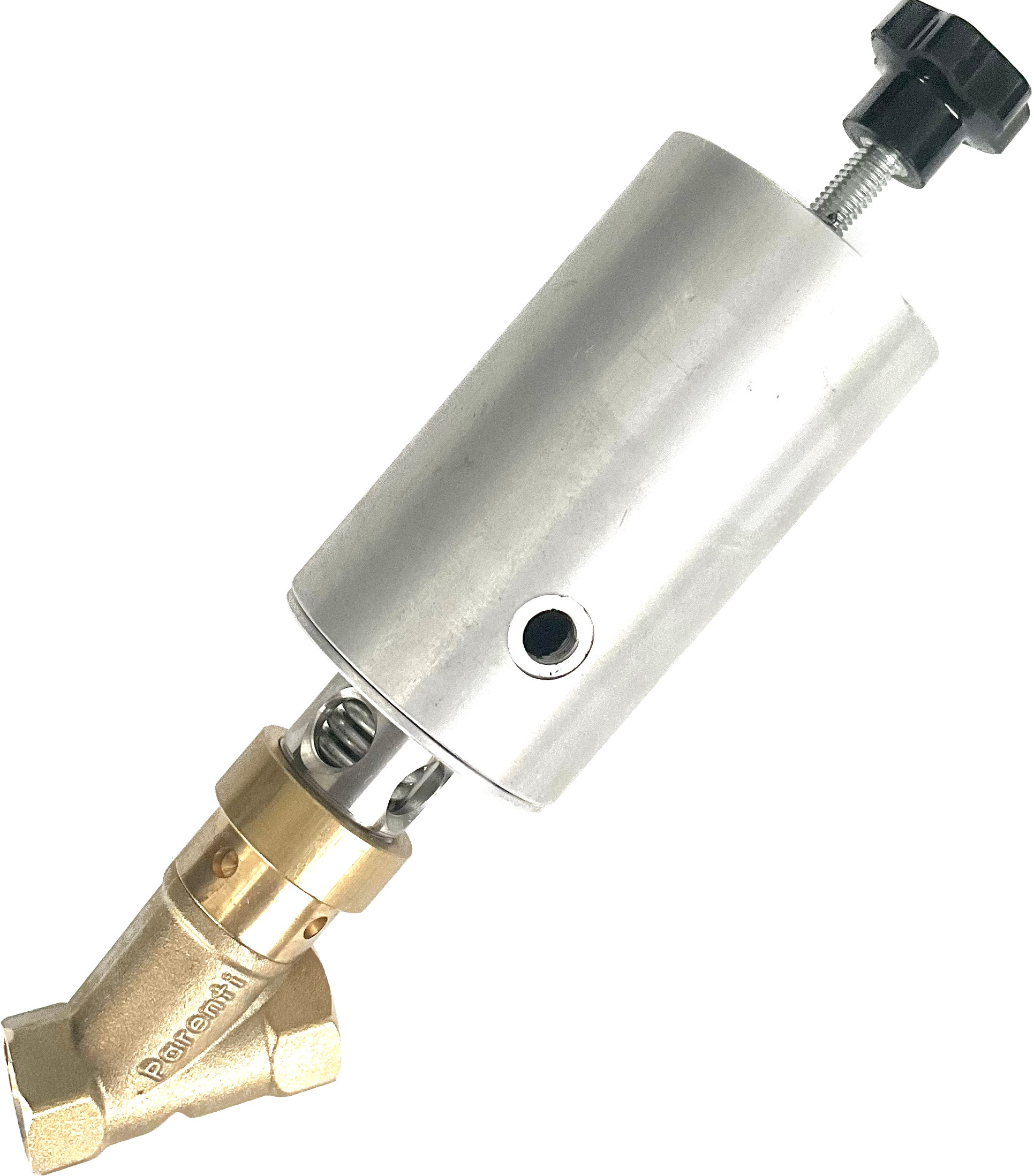

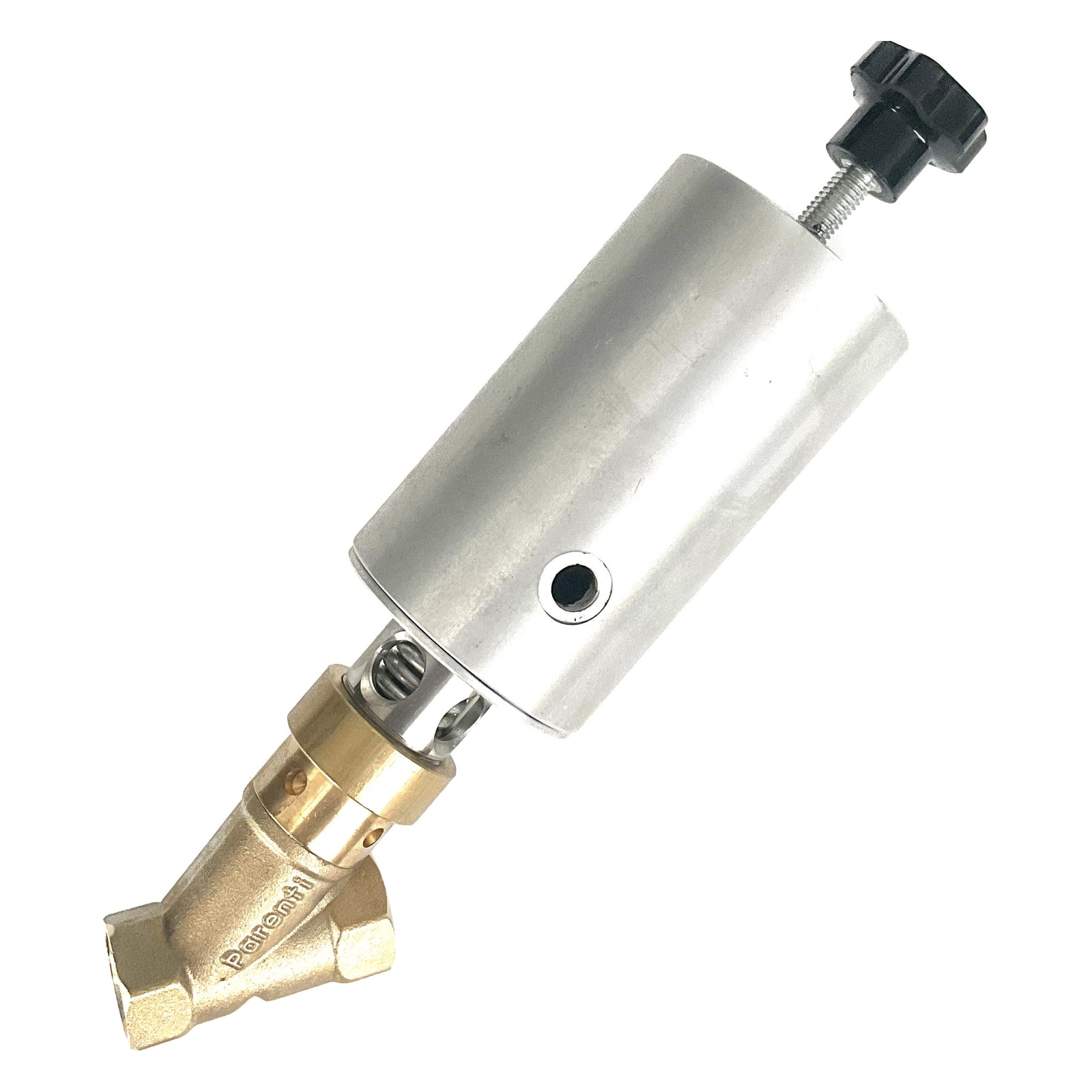

1 in NC Steam Valve Adjustable | FMB / Union / Realstar 0902025 is a valve used in compatible FMB / Firbimatic, Union, and Realstar dry-cleaning machine service for Pneumatic / valves work.

Use this listing when the installed valve, machine manual, service record, or component label matches 0902025, 0902015, 0902001, V6492, 0902024. Before ordering, compare connection size, port style, function, body markings, flow direction, and installed circuit.

Technical Specifications

• Component type: valve.

• Primary system: Pneumatic / valves.

• Primary identifiers: 0902025, 0902015, 0902001, V6492, 0902024.

• Legacy / old reference: 0902015.

• Corbett evidence note: 1/2" Steam Valve/Nitrogen (Old# 0902015 0902001 & V6492)..

• Corbett evidence note: Component type: Valve...

• Corbett evidence note: Primary system: Pneumatic / valves...

• Verification points: connection size, port style, function, body markings, flow direction, and installed circuit.

Part Numbers & Cross References

Part Numbers

• Corbett / manufacturer reference: 0902025.

• Corbett / manufacturer reference: 0902015.

• Corbett / manufacturer reference: 0902001.

• Corbett / manufacturer reference: V6492.

• Corbett / manufacturer reference: 0902024.

Cross References

• Legacy / old reference: 0902015.

• Evidence note: Component type: Valve / fluid or pneumatic control component...

• Evidence note: Catalog category: Valves...

Machine Fitment

Machine fitment for 1 in NC Steam Valve Adjustable | FMB / Union / Realstar 0902025 is organized through Corbett Equipment master manufacturer and model-lineage evidence. Use this section as a fitment-reference map, then verify the installed component, machine data plate, service manual, dimensions, voltage or pressure ratings where applicable, mounting, fittings, and part-number path before ordering.

Master manufacturer / model lineage

Corbett Equipment and FXT Factory records treat FMB / Firbimatic as the master machine-model lineage for this catalog family. Union, Realstar, and Sovrana references are derivative-reference families that must be matched through the installed component, manual table, and machine-specific service record.

FMB / Firbimatic machine models and master families

• EcoPro / ECOPRO family: ECOPRO 915, ECOPRO 915S, ECOPRO 918, ECOPRO 918S, ECOPRO AM, ECOPRO AM918.

• Saver family: SAVER 35, SAVER 350, SAVER 35P, SAVER 350P, SAVER 40, SAVER 40P, SAVER 80SM, SAVER HYDROCARBON.

• F-series / 18 kg family: F AS 18 LT2, F AS 18 ST2, F18 LT2, F18 LT3, F18 ST2.

• EcoGreen family: EcoGreen 35, EcoGreen 40 / L2118, EcoGreen 50 / L2120, EcoGreen 60 / L2125, EcoGreen 80 / L2132, EcoGreen 95, EcoGreen 95SM, EcoGreen DC, EcoGreen S50 / S2120, EcoGreen Advance.

• EcoGreen SM / AM-prefix soft-mount family: AM918, AM925, AM940, AM2118, S2118, EcoGreen 40SM, EcoGreen 60SM, EcoPro 40SM, EcoPro 60SM.

• EcoLine family: EcoLine 35, ECOLINE, ECOLINE 16.

• Vortex family: VORTEX 40, VORTEX 50, VORTEX 80, VORTEX 95, VORTEX L2018, VORTEX S2018, VORTEX PRIMARY, Vortex 40 Plus, Vortex 50 Plus, Vortex 80 Plus, Vortex 50 Plus Tandem.

• Axial family: AXIAL 40, AXIAL 918, AXIAL 925, AXIAL-918.

• System and feature lineage: Hydro-Vac, Hydro-Chill, Tri-Flow, Smart-10, SecureLock, and related recovery, filtration, distillation, cooling, and control-system records.

• Other recovered FMB reference families: Eco-15LT3, Eco-15LT-3, L 18, L-250, L750, L2118, P16, P1567, P1705, P6241, T1838.

• Recovered numeric model set: 035, 05, 068, 08, 09, 10, 100, 12, 120, 13, 130, 14, 15, 153, 16, 20, 208, 220, 23, 24, 25, 30, 306, 310, 32, 338, 340, 35, 36, 37, 40, 410, 45, 465, 473, 50, 520, 60, 600, 63, 70, 71, 724, 765, 80, 895, 896, 918, 95.

• Factory/model-code references observed in recovered Corbett lineage records: HC7-18-CL, HC7-18-CLM, HC7-18-CS, HC8-18-CL, HC8-18-CLM, HC8-18-CS.

Union machine models and derivative families

• Core Union derivative references: HXP8018C, L840, P840.

• HL / HP / HXL family references: HL-780, HL780, HL-840, HL840K, HP840K, HXL8018K, HL-850, HL850K, HP850K, HL-860, HL860K, HP860K, HXL8025K, HL-880, HL880K, HXL8032K, HL-890, HL890K.

• L / RS family references: L740S, L740, HL740, L750, RS-102, RS-122, RS-152.

• Verify Union fitment by matching the installed part, Union manual table, FMB / Firbimatic master-model relationship, connection details, and service location.

Realstar machine models and derivative families

• KM / KT derivative references: KM315, KM315-K4, KT215, KT215-K4, KM343, KM343-K4, KT343, KT343-K4.

• Larger KM / KT references: KM403, KM403-K4, KT403, KT403-K4, KM503, KM503-K4, KT503, KM703, KM703-K4, KM803, KM803-K4.

• RKM references: KM-36 / RKM36, KM-340 / RKM340, KM-400 / RKM400.

• Verify Realstar fitment by matching the installed part, Realstar manual table, FMB / Firbimatic master-model relationship, connection details, and service location.

Sovrana and other derivative references

Sovrana and other derivative-model references may appear in Corbett lineage records. Treat them as research clues only unless the installed component, machine manual, and part-number path confirm the application.

Ordering Verification

• Confirm 0902025, 0902015, 0902001, V6492, 0902024 before ordering.

• Compare connection size, port style, function, body markings, flow direction, and installed circuit against the installed component.

• Inspect the mating parts, wiring, fittings, sealing surfaces, or mounting hardware before installation.

• After installation, verify correct machine operation and leak-free or electrically safe service before returning equipment to use.

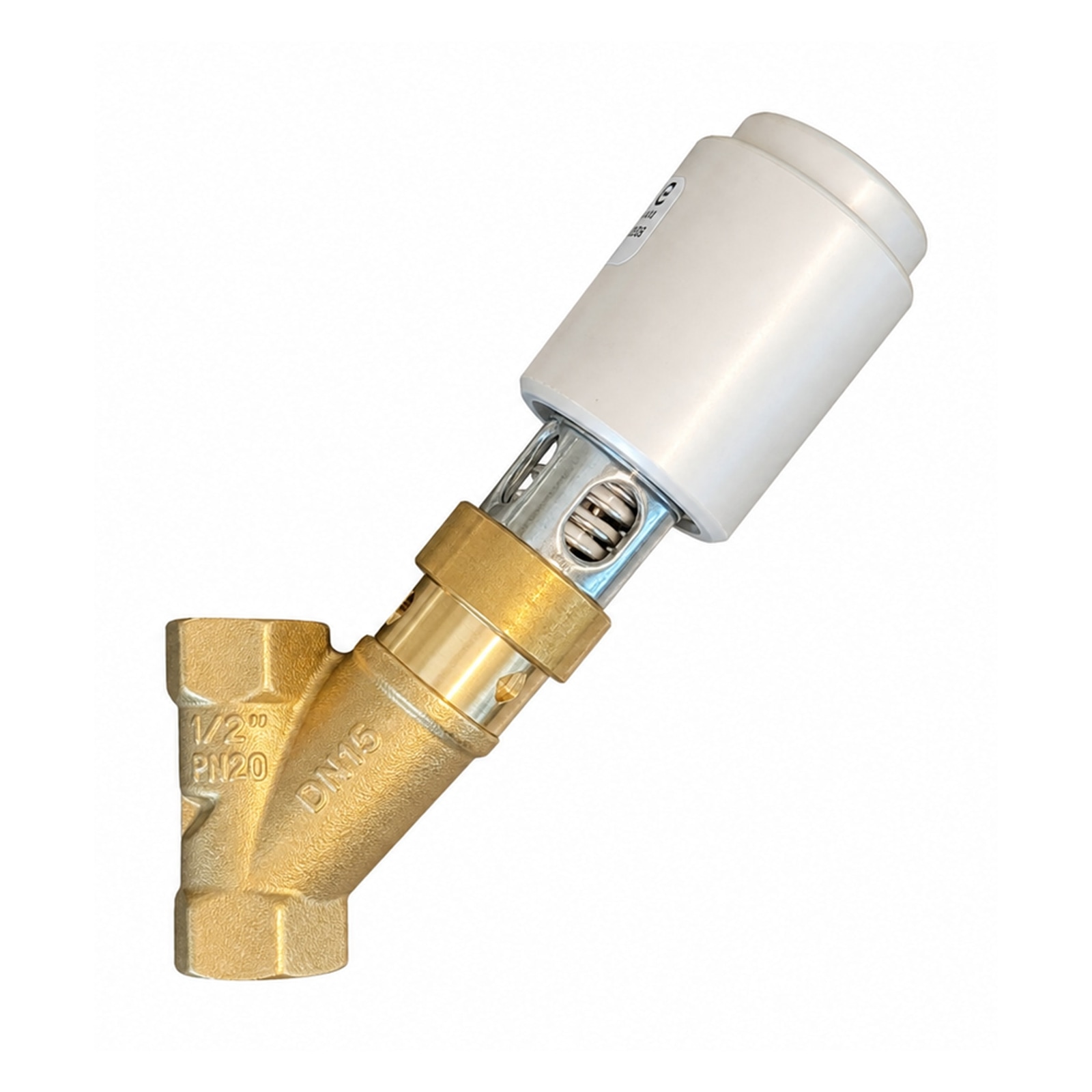

1/2 in NC Steam Valve | FMB / Union / Realstar 0902024 is a valve used in compatible FMB / Firbimatic, Union, and Realstar dry-cleaning machine service for Pneumatic / valves work.

Use this listing when the installed valve, machine manual, service record, or component label matches 0902024, 0902001, 0902015, V6492, 0902025. Before ordering, compare connection size, port style, function, body markings, flow direction, and installed circuit.

Technical Specifications

• Component type: valve.

• Primary system: Pneumatic / valves.

• Primary identifiers: 0902024, 0902001, 0902015, V6492, 0902025.

• Legacy / old reference: 0902015.

• Corbett evidence note: 1/2" Steam Valve/Nitrogen (Old# 0902015 0902001 & V6492)..

• Corbett evidence note: Component type: Valve...

• Corbett evidence note: Primary system: Pneumatic / valves...

• Verification points: connection size, port style, function, body markings, flow direction, and installed circuit.

Part Numbers & Cross References

Part Numbers

• Corbett / manufacturer reference: 0902024.

• Corbett / manufacturer reference: 0902001.

• Corbett / manufacturer reference: 0902015.

• Corbett / manufacturer reference: V6492.

• Corbett / manufacturer reference: 0902025.

Cross References

• Legacy / old reference: 0902015.

• Evidence note: Component type: Valve / fluid or pneumatic control component...

• Evidence note: Catalog category: Valves...

Machine Fitment

Machine fitment for 1/2 in NC Steam Valve | FMB / Union / Realstar 0902024 is organized through Corbett Equipment master manufacturer and model-lineage evidence. Use this section as a fitment-reference map, then verify the installed component, machine data plate, service manual, dimensions, voltage or pressure ratings where applicable, mounting, fittings, and part-number path before ordering.

Master manufacturer / model lineage

Corbett Equipment and FXT Factory records treat FMB / Firbimatic as the master machine-model lineage for this catalog family. Union, Realstar, and Sovrana references are derivative-reference families that must be matched through the installed component, manual table, and machine-specific service record.

FMB / Firbimatic machine models and master families

• EcoPro / ECOPRO family: ECOPRO 915, ECOPRO 915S, ECOPRO 918, ECOPRO 918S, ECOPRO AM, ECOPRO AM918.

• Saver family: SAVER 35, SAVER 350, SAVER 35P, SAVER 350P, SAVER 40, SAVER 40P, SAVER 80SM, SAVER HYDROCARBON.

• F-series / 18 kg family: F AS 18 LT2, F AS 18 ST2, F18 LT2, F18 LT3, F18 ST2.

• EcoGreen family: EcoGreen 35, EcoGreen 40 / L2118, EcoGreen 50 / L2120, EcoGreen 60 / L2125, EcoGreen 80 / L2132, EcoGreen 95, EcoGreen 95SM, EcoGreen DC, EcoGreen S50 / S2120, EcoGreen Advance.

• EcoGreen SM / AM-prefix soft-mount family: AM918, AM925, AM940, AM2118, S2118, EcoGreen 40SM, EcoGreen 60SM, EcoPro 40SM, EcoPro 60SM.

• EcoLine family: EcoLine 35, ECOLINE, ECOLINE 16.

• Vortex family: VORTEX 40, VORTEX 50, VORTEX 80, VORTEX 95, VORTEX L2018, VORTEX S2018, VORTEX PRIMARY, Vortex 40 Plus, Vortex 50 Plus, Vortex 80 Plus, Vortex 50 Plus Tandem.

• Axial family: AXIAL 40, AXIAL 918, AXIAL 925, AXIAL-918.

• System and feature lineage: Hydro-Vac, Hydro-Chill, Tri-Flow, Smart-10, SecureLock, and related recovery, filtration, distillation, cooling, and control-system records.

• Other recovered FMB reference families: Eco-15LT3, Eco-15LT-3, L 18, L-250, L750, L2118, P16, P1567, P1705, P6241, T1838.

• Recovered numeric model set: 035, 05, 068, 08, 09, 10, 100, 12, 120, 13, 130, 14, 15, 153, 16, 20, 208, 220, 23, 24, 25, 30, 306, 310, 32, 338, 340, 35, 36, 37, 40, 410, 45, 465, 473, 50, 520, 60, 600, 63, 70, 71, 724, 765, 80, 895, 896, 918, 95.

• Factory/model-code references observed in recovered Corbett lineage records: HC7-18-CL, HC7-18-CLM, HC7-18-CS, HC8-18-CL, HC8-18-CLM, HC8-18-CS.

Union machine models and derivative families

• Core Union derivative references: HXP8018C, L840, P840.

• HL / HP / HXL family references: HL-780, HL780, HL-840, HL840K, HP840K, HXL8018K, HL-850, HL850K, HP850K, HL-860, HL860K, HP860K, HXL8025K, HL-880, HL880K, HXL8032K, HL-890, HL890K.

• L / RS family references: L740S, L740, HL740, L750, RS-102, RS-122, RS-152.

• Verify Union fitment by matching the installed part, Union manual table, FMB / Firbimatic master-model relationship, connection details, and service location.

Realstar machine models and derivative families

• KM / KT derivative references: KM315, KM315-K4, KT215, KT215-K4, KM343, KM343-K4, KT343, KT343-K4.

• Larger KM / KT references: KM403, KM403-K4, KT403, KT403-K4, KM503, KM503-K4, KT503, KM703, KM703-K4, KM803, KM803-K4.

• RKM references: KM-36 / RKM36, KM-340 / RKM340, KM-400 / RKM400.

• Verify Realstar fitment by matching the installed part, Realstar manual table, FMB / Firbimatic master-model relationship, connection details, and service location.

Sovrana and other derivative references

Sovrana and other derivative-model references may appear in Corbett lineage records. Treat them as research clues only unless the installed component, machine manual, and part-number path confirm the application.

Ordering Verification

• Confirm 0902024, 0902001, 0902015, V6492, 0902025 before ordering.

• Compare connection size, port style, function, body markings, flow direction, and installed circuit against the installed component.

• Inspect the mating parts, wiring, fittings, sealing surfaces, or mounting hardware before installation.

• After installation, verify correct machine operation and leak-free or electrically safe service before returning equipment to use.

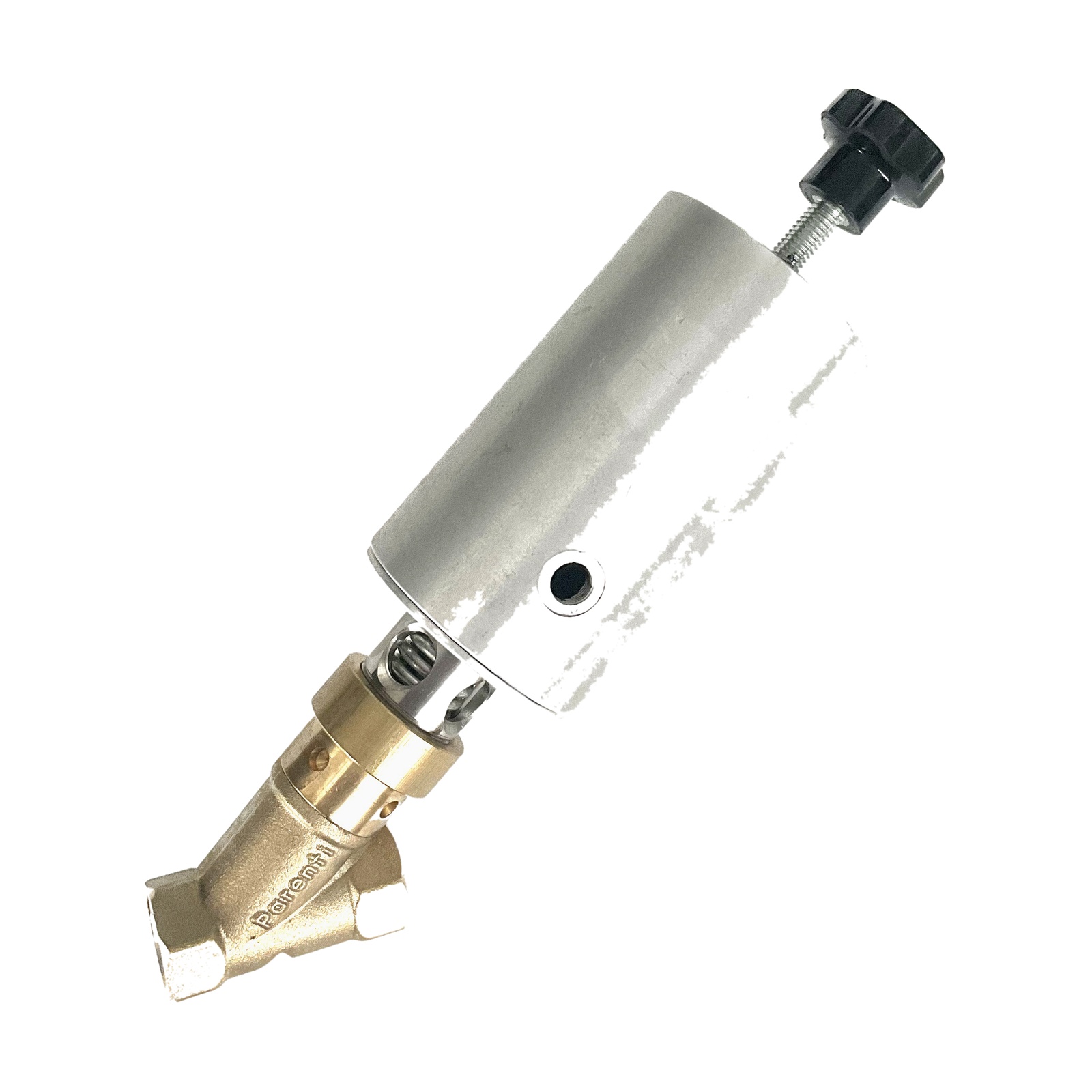

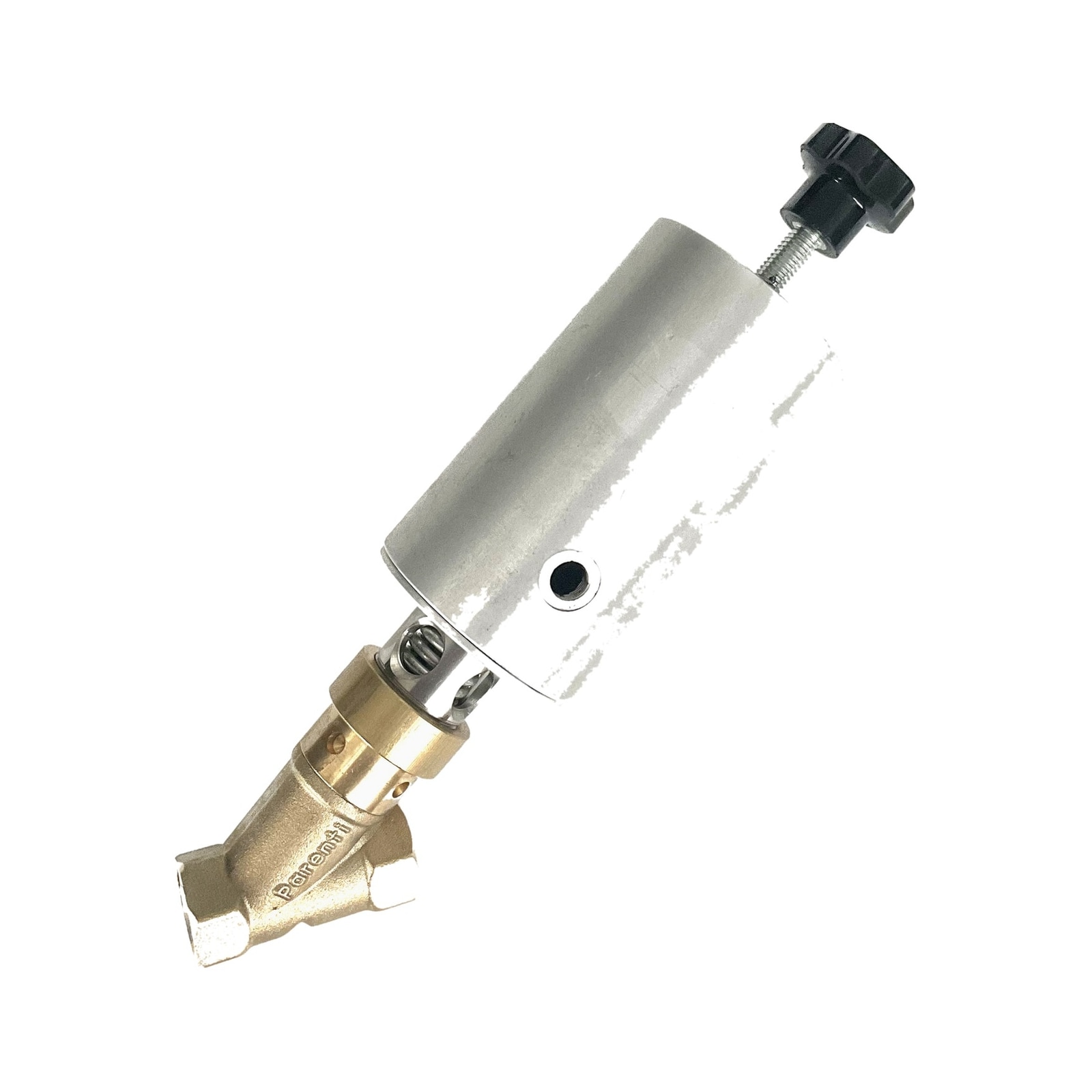

Steam-Air-Nitro Valve, 1/2 in | FMB / Union / Realstar 0902001 is a valve used in compatible FMB / Firbimatic, Union, and Realstar dry-cleaning machine service for Pneumatic / valves work.

Use this listing when the installed valve, machine manual, service record, or component label matches 0902001, 0902015, V6492, 0902024, 0902025. Before ordering, compare connection size, port style, function, body markings, flow direction, and installed circuit.

Technical Specifications

• Component type: valve.

• Primary system: Pneumatic / valves.

• Primary identifiers: 0902001, 0902015, V6492, 0902024, 0902025.

• Legacy / old reference: 0902015.

• Corbett evidence note: 1/2" steam/air/nitro valve with indicator air operated 0902001..

• Corbett evidence note: Component type: Valve...

• Corbett evidence note: Primary system: Pneumatic / valves...

• Verification points: connection size, port style, function, body markings, flow direction, and installed circuit.

Part Numbers & Cross References

Part Numbers

• Corbett / manufacturer reference: 0902001.

• Corbett / manufacturer reference: 0902015.

• Corbett / manufacturer reference: V6492.

• Corbett / manufacturer reference: 0902024.

• Corbett / manufacturer reference: 0902025.

Cross References

• Legacy / old reference: 0902015.

• Evidence note: Component type: Valve / fluid or pneumatic control component...

• Evidence note: Catalog category: Valves...

Machine Fitment

Machine fitment for Steam-Air-Nitro Valve, 1/2 in | FMB / Union / Realstar 0902001 is organized through Corbett Equipment master manufacturer and model-lineage evidence. Use this section as a fitment-reference map, then verify the installed component, machine data plate, service manual, dimensions, voltage or pressure ratings where applicable, mounting, fittings, and part-number path before ordering.

Master manufacturer / model lineage

Corbett Equipment and FXT Factory records treat FMB / Firbimatic as the master machine-model lineage for this catalog family. Union, Realstar, and Sovrana references are derivative-reference families that must be matched through the installed component, manual table, and machine-specific service record.

FMB / Firbimatic machine models and master families

• EcoPro / ECOPRO family: ECOPRO 915, ECOPRO 915S, ECOPRO 918, ECOPRO 918S, ECOPRO AM, ECOPRO AM918.

• Saver family: SAVER 35, SAVER 350, SAVER 35P, SAVER 350P, SAVER 40, SAVER 40P, SAVER 80SM, SAVER HYDROCARBON.

• F-series / 18 kg family: F AS 18 LT2, F AS 18 ST2, F18 LT2, F18 LT3, F18 ST2.

• EcoGreen family: EcoGreen 35, EcoGreen 40 / L2118, EcoGreen 50 / L2120, EcoGreen 60 / L2125, EcoGreen 80 / L2132, EcoGreen 95, EcoGreen 95SM, EcoGreen DC, EcoGreen S50 / S2120, EcoGreen Advance.

• EcoGreen SM / AM-prefix soft-mount family: AM918, AM925, AM940, AM2118, S2118, EcoGreen 40SM, EcoGreen 60SM, EcoPro 40SM, EcoPro 60SM.

• EcoLine family: EcoLine 35, ECOLINE, ECOLINE 16.

• Vortex family: VORTEX 40, VORTEX 50, VORTEX 80, VORTEX 95, VORTEX L2018, VORTEX S2018, VORTEX PRIMARY, Vortex 40 Plus, Vortex 50 Plus, Vortex 80 Plus, Vortex 50 Plus Tandem.

• Axial family: AXIAL 40, AXIAL 918, AXIAL 925, AXIAL-918.

• System and feature lineage: Hydro-Vac, Hydro-Chill, Tri-Flow, Smart-10, SecureLock, and related recovery, filtration, distillation, cooling, and control-system records.

• Other recovered FMB reference families: Eco-15LT3, Eco-15LT-3, L 18, L-250, L750, L2118, P16, P1567, P1705, P6241, T1838.

• Recovered numeric model set: 035, 05, 068, 08, 09, 10, 100, 12, 120, 13, 130, 14, 15, 153, 16, 20, 208, 220, 23, 24, 25, 30, 306, 310, 32, 338, 340, 35, 36, 37, 40, 410, 45, 465, 473, 50, 520, 60, 600, 63, 70, 71, 724, 765, 80, 895, 896, 918, 95.

• Factory/model-code references observed in recovered Corbett lineage records: HC7-18-CL, HC7-18-CLM, HC7-18-CS, HC8-18-CL, HC8-18-CLM, HC8-18-CS.

Union machine models and derivative families

• Core Union derivative references: HXP8018C, L840, P840.

• HL / HP / HXL family references: HL-780, HL780, HL-840, HL840K, HP840K, HXL8018K, HL-850, HL850K, HP850K, HL-860, HL860K, HP860K, HXL8025K, HL-880, HL880K, HXL8032K, HL-890, HL890K.

• L / RS family references: L740S, L740, HL740, L750, RS-102, RS-122, RS-152.

• Verify Union fitment by matching the installed part, Union manual table, FMB / Firbimatic master-model relationship, connection details, and service location.

Realstar machine models and derivative families

• KM / KT derivative references: KM315, KM315-K4, KT215, KT215-K4, KM343, KM343-K4, KT343, KT343-K4.

• Larger KM / KT references: KM403, KM403-K4, KT403, KT403-K4, KM503, KM503-K4, KT503, KM703, KM703-K4, KM803, KM803-K4.

• RKM references: KM-36 / RKM36, KM-340 / RKM340, KM-400 / RKM400.

• Verify Realstar fitment by matching the installed part, Realstar manual table, FMB / Firbimatic master-model relationship, connection details, and service location.

Sovrana and other derivative references

Sovrana and other derivative-model references may appear in Corbett lineage records. Treat them as research clues only unless the installed component, machine manual, and part-number path confirm the application.

Ordering Verification

• Confirm 0902001, 0902015, V6492, 0902024, 0902025 before ordering.

• Compare connection size, port style, function, body markings, flow direction, and installed circuit against the installed component.

• Inspect the mating parts, wiring, fittings, sealing surfaces, or mounting hardware before installation.

• After installation, verify correct machine operation and leak-free or electrically safe service before returning equipment to use.

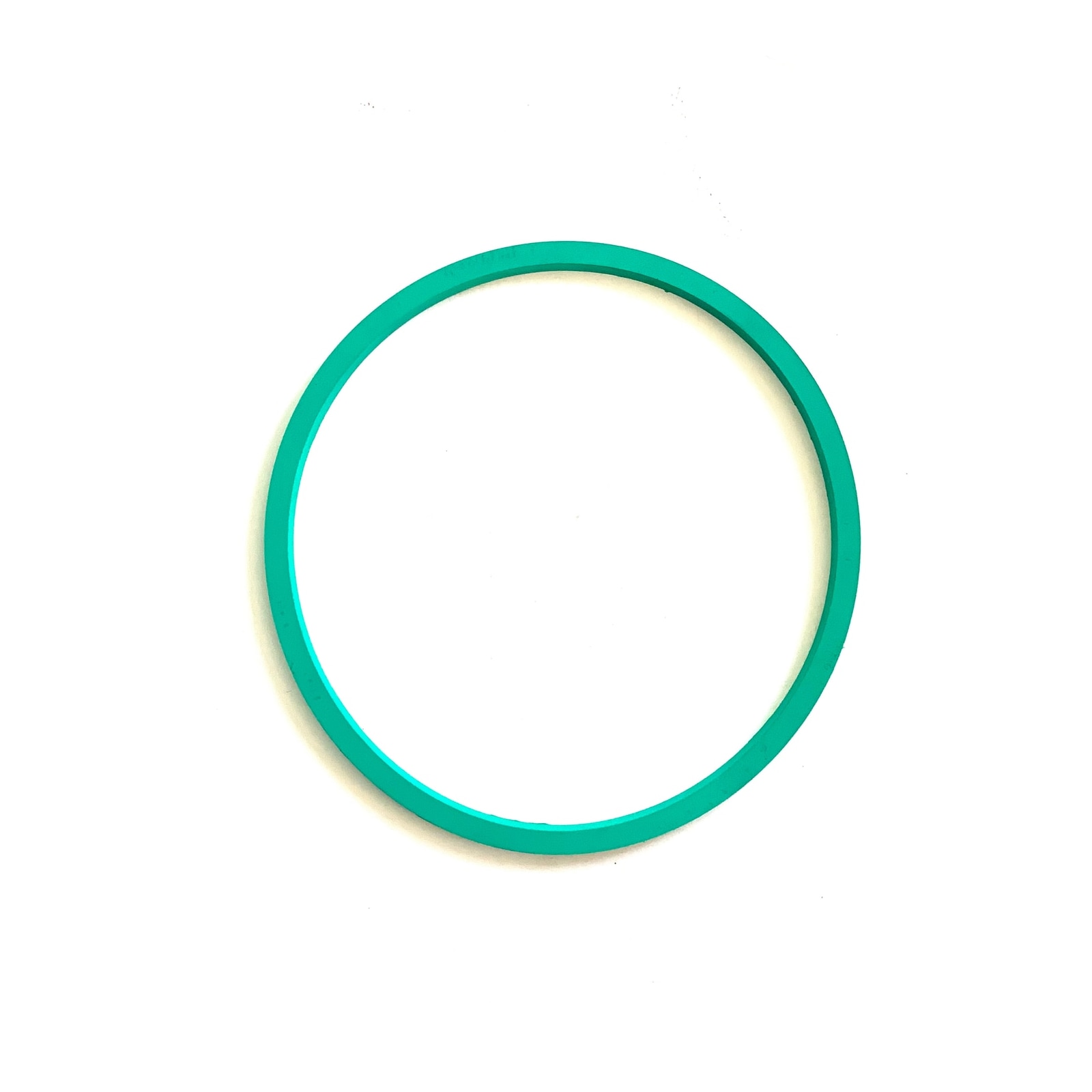

Gasket For Still Door | FMB 401879/MTP / Union 401879 / Realstar 401879 is a gasket used in compatible FMB / Firbimatic, Union, and Realstar dry-cleaning machine service for Seals / gaskets work.

Use this listing when the installed gasket, machine manual, service record, or component label matches 401879, 401878, G15975, L2118, L2120, L2125. Before ordering, compare dimensions, material, shape, bolt pattern, sealing surfaces, and installed assembly.

Technical Specifications

• Component type: gasket.

• Primary system: Seals / gaskets.

• Primary identifiers: 401879, 401878, G15975, L2118, L2120, L2125.

• Corbett evidence note: Gasket for Button Trap/Still Door Dry Cleaning Part 401878/MTP..

• Corbett evidence note: Component type: Gasket / seal...

• Corbett evidence note: Primary system: Seals / gaskets...

• Verification points: dimensions, material, shape, bolt pattern, sealing surfaces, and installed assembly.

Part Numbers & Cross References

Part Numbers

• Corbett / manufacturer reference: 401879.

• Corbett / manufacturer reference: 401878.

• Corbett / manufacturer reference: G15975.

• Corbett / manufacturer reference: L2118.

• Corbett / manufacturer reference: L2120.

• Corbett / manufacturer reference: L2125.

• Corbett / manufacturer reference: L2132.

• Corbett / manufacturer reference: L2140.

Cross References

• No separate legacy old-number code is confirmed in the current Corbett evidence for this listing.

• Evidence note: Component type: Gasket / seal component...

• Evidence note: Catalog category: Gaskets & Seals...

Machine Fitment

Machine fitment for Gasket For Still Door | FMB 401879/MTP / Union 401879 / Realstar 401879 is organized through Corbett Equipment master manufacturer and model-lineage evidence. Use this section as a fitment-reference map, then verify the installed component, machine data plate, service manual, dimensions, voltage or pressure ratings where applicable, mounting, fittings, and part-number path before ordering.

Master manufacturer / model lineage

Corbett Equipment and FXT Factory records treat FMB / Firbimatic as the master machine-model lineage for this catalog family. Union, Realstar, and Sovrana references are derivative-reference families that must be matched through the installed component, manual table, and machine-specific service record.

FMB / Firbimatic machine models and master families

• EcoPro / ECOPRO family: ECOPRO 915, ECOPRO 915S, ECOPRO 918, ECOPRO 918S, ECOPRO AM, ECOPRO AM918.

• Saver family: SAVER 35, SAVER 350, SAVER 35P, SAVER 350P, SAVER 40, SAVER 40P, SAVER 80SM, SAVER HYDROCARBON.

• F-series / 18 kg family: F AS 18 LT2, F AS 18 ST2, F18 LT2, F18 LT3, F18 ST2.

• EcoGreen family: EcoGreen 35, EcoGreen 40 / L2118, EcoGreen 50 / L2120, EcoGreen 60 / L2125, EcoGreen 80 / L2132, EcoGreen 95, EcoGreen 95SM, EcoGreen DC, EcoGreen S50 / S2120, EcoGreen Advance.

• EcoGreen SM / AM-prefix soft-mount family: AM918, AM925, AM940, AM2118, S2118, EcoGreen 40SM, EcoGreen 60SM, EcoPro 40SM, EcoPro 60SM.

• EcoLine family: EcoLine 35, ECOLINE, ECOLINE 16.

• Vortex family: VORTEX 40, VORTEX 50, VORTEX 80, VORTEX 95, VORTEX L2018, VORTEX S2018, VORTEX PRIMARY, Vortex 40 Plus, Vortex 50 Plus, Vortex 80 Plus, Vortex 50 Plus Tandem.

• Axial family: AXIAL 40, AXIAL 918, AXIAL 925, AXIAL-918.

• System and feature lineage: Hydro-Vac, Hydro-Chill, Tri-Flow, Smart-10, SecureLock, and related recovery, filtration, distillation, cooling, and control-system records.

• Other recovered FMB reference families: Eco-15LT3, Eco-15LT-3, L 18, L-250, L750, L2118, P16, P1567, P1705, P6241, T1838.

• Recovered numeric model set: 035, 05, 068, 08, 09, 10, 100, 12, 120, 13, 130, 14, 15, 153, 16, 20, 208, 220, 23, 24, 25, 30, 306, 310, 32, 338, 340, 35, 36, 37, 40, 410, 45, 465, 473, 50, 520, 60, 600, 63, 70, 71, 724, 765, 80, 895, 896, 918, 95.

• Factory/model-code references observed in recovered Corbett lineage records: HC7-18-CL, HC7-18-CLM, HC7-18-CS, HC8-18-CL, HC8-18-CLM, HC8-18-CS.

Union machine models and derivative families

• Core Union derivative references: HXP8018C, L840, P840.

• HL / HP / HXL family references: HL-780, HL780, HL-840, HL840K, HP840K, HXL8018K, HL-850, HL850K, HP850K, HL-860, HL860K, HP860K, HXL8025K, HL-880, HL880K, HXL8032K, HL-890, HL890K.

• L / RS family references: L740S, L740, HL740, L750, RS-102, RS-122, RS-152.

• Verify Union fitment by matching the installed part, Union manual table, FMB / Firbimatic master-model relationship, connection details, and service location.

Realstar machine models and derivative families

• KM / KT derivative references: KM315, KM315-K4, KT215, KT215-K4, KM343, KM343-K4, KT343, KT343-K4.

• Larger KM / KT references: KM403, KM403-K4, KT403, KT403-K4, KM503, KM503-K4, KT503, KM703, KM703-K4, KM803, KM803-K4.

• RKM references: KM-36 / RKM36, KM-340 / RKM340, KM-400 / RKM400.

• Verify Realstar fitment by matching the installed part, Realstar manual table, FMB / Firbimatic master-model relationship, connection details, and service location.

Sovrana and other derivative references

Sovrana and other derivative-model references may appear in Corbett lineage records. Treat them as research clues only unless the installed component, machine manual, and part-number path confirm the application.

Ordering Verification

• Confirm 401879, 401878, G15975, L2118, L2120, L2125 before ordering.

• Compare dimensions, material, shape, bolt pattern, sealing surfaces, and installed assembly against the installed component.

• Inspect the mating parts, wiring, fittings, sealing surfaces, or mounting hardware before installation.

• After installation, verify correct machine operation and leak-free or electrically safe service before returning equipment to use.
