Pressure Gauges & Steam Service

Aftermarket Vacuum Gauge -1/0 Bar | 1/4 in NPT Back

Aftermarket Vacuum Gauge -1/0 Bar | 1/4 in NPT Back is a liquid-filled industrial vacuum gauge selected as an aftermarket rear-connection option for verified dry-cleaning still and distillation vacuum-gauge service.

This listing is intended for customers whose installed gauge matches the FMB / Firbimatic 0804011 style vacuum range but uses a center-back / rear connection instead of a lower bottom connection. It is not an OEM FMB, Firbimatic, Union, Realstar, or Sovrana part. It should be ordered only after confirming the installed gauge range, connection size, thread type, connection location, dial clearance, and machine/service-manual path.

Technical Specifications

• Component type: industrial vacuum gauge / rear-connection replacement option

• Gauge range: 30 in Hg to 0

• Secondary range: -1 to 0 bar

• Connection size: 1/4 in

• Connection type: NPT

• Connection gender: male

• Connection location: center back / rear

• Nominal dial size: 2 1/2 in

• Case diameter reference: about 2.65 in

• Case depth reference: about 1.21 in

• Case material: stainless steel

• Lens material: polycarbonate

• Socket / sensor / wetted material: copper alloy / copper

• Fill liquid: glycerin / liquid-filled case

• Vibration resistance: liquid-filled

• Accuracy: +/-2-1-2%

• Accuracy grade: ASME B40.100 Grade A

• Scale type: dual scale

• Includes: vent plug

• Calibration certificate: not included

• Oxygen service: not cleaned for oxygen service

• Hazardous-location rating: not rated

• Operating temperature reference: ambient -30 F to 180 F; process media 30 F to 160 F

Aftermarket Replacement Notes

This is an aftermarket industrial replacement option selected for cases where the installed gauge uses a center-back/rear connection. It should not replace a bottom-connection gauge unless the machine plumbing and panel layout are intentionally being adapted by a qualified technician after verifying clearance, fittings, and service requirements.

The liquid-filled/glycerin construction can help damp pointer movement in equipment areas where vibration or pulsation is present. The stainless case and polycarbonate lens make it a practical service replacement when the installed component specifications match.

This is not an OEM Firbimatic/FMB gauge and should not be treated as a universal replacement. Rear-connection gauges are more sensitive to panel depth, fitting clearance, and line alignment, so customers should confirm the rear thread location and available space before ordering.

Part Numbers & Cross References

Corbett Equipment

• CE-GAU-VAC-254A-BACK

Compare Against

• FMB / Firbimatic 0804011 rear/center-back option

• Omnia / F60K gauge-plate reference lane: Tavola RC1271_A

• Aftermarket replacement option only where the installed component and service requirements support this gauge configuration

Related Parts To Verify Separately

• Bottom/lower connection gauges should be ordered when the installed gauge uses a lower connection.

• 0804009 / A15572 is a separate vacuum/pressure manometer lane with positive pressure range and should not be replaced with this vacuum-only gauge.

• Pressure-only gauges should not be used where vacuum indication is required.

Machine Fitment

Master Manufacturer / Model Lineage

Use this aftermarket gauge only as a verified replacement candidate for machines whose installed gauge matches the source gauge lane, connection location, range, and service requirements. Corbett Equipment treats FMB / Firbimatic as the master builder lineage, with Union, Realstar, and other sister/derivative families researched from model-lineage evidence and verified against the installed component.

FMB / Firbimatic Machine Models And Master Families

Potential reference families include Omnia / F60K, EcoGreen, EcoGreen SM / AM-prefix machines, EcoPro / ECOPRO, Saver, EcoLine, F-series machines, 9 Series KWL / PERC, Vortex, Axial, Petite, Nevada, Hydro-Vac, Hydro-Chill, Tri-Flow, Smart-10, SecureLock, and recovered numeric FMB / Firbimatic model families where the installed gauge range, connection, mounting, and service-manual path confirm this gauge lane.

Union Machine Models And Derivative Families

Union derivative references may include HXP8018C, L840, P840, HL / HP / HXL families, HL-780, HL-840, HL-850, HL-860, HL-880, HL-890, L740S, L740, HL740, L750, RS-102, RS-122, and RS-152 where the installed gauge and service documentation confirm the same range and connection requirements.

Realstar Machine Models And Derivative Families

Realstar derivative references may include KM / KT and RKM families such as KM315, KM343, KM403, KM503, KM703, KM803, KT215, KT343, KT403, KT503, RKM36, RKM340, and RKM400 where the installed gauge and service documentation confirm the same range and connection requirements.

Sovrana And Other Derivative References

Treat Sovrana and other derivative references as verification-required lanes unless the installed machine data plate, manual, or removed gauge confirms the exact gauge range, connection size, and connection location.

Manual / Gauge-Plate Source Reference

Omnia / F60K Tavola RC1271_A shows the OEM gauge family used for comparison and verification.

Ordering Verification

Before ordering, compare the installed gauge to this listing:

• gauge range and units

• vacuum-only versus compound vacuum/pressure function

• 1/4 in NPT male thread

• center-back/rear connection location

• dial diameter, panel depth, and rear fitting clearance

• service temperature and process media

• machine model and data plate

• service manual or exploded-view reference

• photos of the removed or installed gauge

Warnings & Restrictions

• Not an OEM Firbimatic/FMB part.

• Not cleaned for oxygen service.

• Not hazardous-location rated.

• Calibration certificate not included.

• Prop 65 warning should be reviewed against final product evidence when the purchasing path or manufacturer data changes.

Aftermarket Compound Gauge -1/+10 Bar | 1/4 in NPT Bottom

Aftermarket Compound Gauge -1/+10 Bar | 1/4 in NPT Bottom is a liquid-filled industrial compound gauge selected as an aftermarket replacement option for verified dry-cleaning still and distillation gauge service where the installed component requires both vacuum and positive pressure indication.

This listing is intended for customers comparing the installed gauge to the FMB / Firbimatic 0804009 / old A15572 vacuum manometer lane. It is not an OEM FMB, Firbimatic, Union, Realstar, or Sovrana part. It should be ordered only after confirming the installed gauge range, connection size, thread type, connection location, dial clearance, and machine/service-manual path.

Technical Specifications

• Component type: industrial compound vacuum/pressure gauge replacement option

• Primary range: 30 in Hg vacuum to 0 to 150 psi

• Secondary range: 0 to 10 bar

• Connection size: 1/4 in

• Connection type: NPT

• Connection gender: male

• Connection location: bottom / lower

• Nominal dial size: 4 in

• Case diameter reference: about 4.29 in

• Case depth reference: about 1.75 in

• Overall length reference: about 5.21 in

• Case material: stainless steel

• Lens material: polycarbonate

• Socket / sensor / wetted material: copper alloy / copper

• Fill liquid: glycerin / liquid-filled case

• Vibration resistance: liquid-filled

• Accuracy: +/-1.0%

• Accuracy grade: ASME B40.100 Grade 1A

• Scale type: dual scale

• Includes: vent plug

• Calibration certificate: not included

• Oxygen service: not cleaned for oxygen service

• Hazardous-location rating: not rated

• Operating / process media temperature reference: 30 F to 160 F

Aftermarket Replacement Notes

This is an aftermarket industrial replacement option selected because it preserves the important compound-gauge behavior needed for the 0804009 style lane: vacuum indication plus positive pressure indication. The 0 to 10 bar secondary scale provides a stronger match to the OEM -1/+9 bar source-plate requirement than lower-range compound gauges.

The liquid-filled/glycerin construction can help damp pointer movement in equipment areas where vibration or pulsation is present. The stainless case, polycarbonate lens, 1/4 in NPT male bottom connection, and 1.0% accuracy make it a strong replacement candidate when the installed component specifications match.

This is not an OEM Firbimatic/FMB gauge and should not be treated as a universal replacement. The 4 in dial is larger than many compact gauges; confirm physical clearance, panel/opening fit, plumbing access, and gauge readability before ordering.

Part Numbers & Cross References

Corbett Equipment

• CE-GAU-COMP-404CF

Compare Against

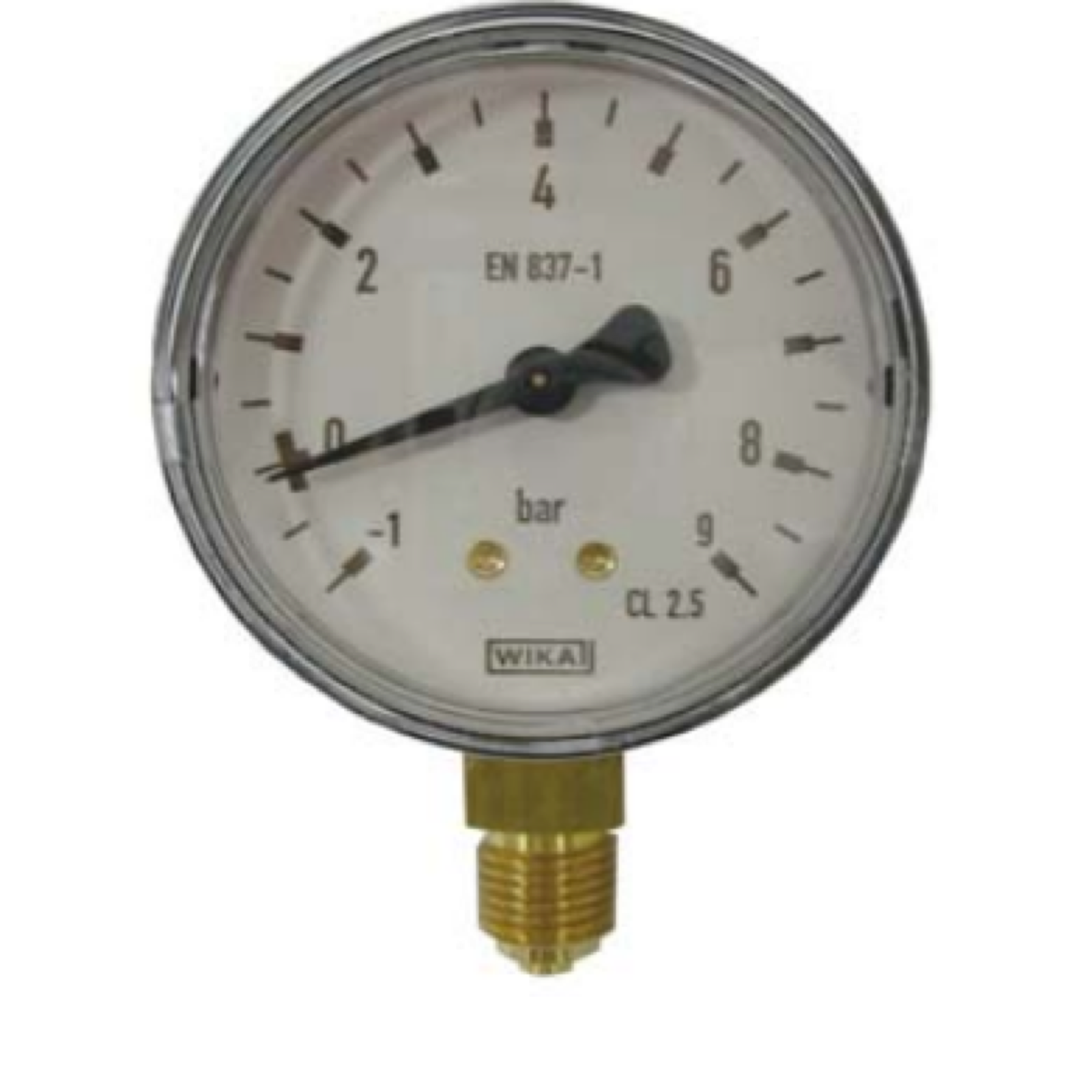

• FMB / Firbimatic 0804009 / A15572

• Omnia / F60K gauge-plate reference lane: Tavola RC1271_A

• Aftermarket replacement option only where the installed component and service requirements support this gauge configuration

Related Parts To Verify Separately

• 0804011 is a separate vacuum-only lane and should not be used where positive pressure indication is required.

• Vacuum-only gauges should not be used where the installed gauge requires a compound vacuum/pressure scale.

• Pressure-only gauges should not be used where vacuum indication is required.

• Lower-range compound gauges should not be substituted for this lane unless the machine's actual operating range confirms they are sufficient.

Machine Fitment

Master Manufacturer / Model Lineage

Use this aftermarket gauge only as a verified replacement candidate for machines whose installed gauge matches the source gauge lane, connection location, range, and service requirements. Corbett Equipment treats FMB / Firbimatic as the master builder lineage, with Union, Realstar, and other sister/derivative families researched from model-lineage evidence and verified against the installed component.

FMB / Firbimatic Machine Models And Master Families

Potential reference families include Omnia / F60K, EcoGreen, EcoGreen SM / AM-prefix machines, EcoPro / ECOPRO, Saver, EcoLine, F-series machines, 9 Series KWL / PERC, Vortex, Axial, Petite, Nevada, Hydro-Vac, Hydro-Chill, Tri-Flow, Smart-10, SecureLock, and recovered numeric FMB / Firbimatic model families where the installed gauge range, connection, mounting, and service-manual path confirm this gauge lane.

Union Machine Models And Derivative Families

Union derivative references may include HXP8018C, L840, P840, HL / HP / HXL families, HL-780, HL-840, HL-850, HL-860, HL-880, HL-890, L740S, L740, HL740, L750, RS-102, RS-122, and RS-152 where the installed gauge and service documentation confirm the same range and connection requirements.

Realstar Machine Models And Derivative Families

Realstar derivative references may include KM / KT and RKM families such as KM315, KM343, KM403, KM503, KM703, KM803, KT215, KT343, KT403, KT503, RKM36, RKM340, and RKM400 where the installed gauge and service documentation confirm the same range and connection requirements.

Sovrana And Other Derivative References

Treat Sovrana and other derivative references as verification-required lanes unless the installed machine data plate, manual, or removed gauge confirms the exact gauge range, connection size, and connection location.

Manual / Gauge-Plate Source Reference

Omnia / F60K Tavola RC1271_A shows the OEM gauge family used for comparison and verification.

Ordering Verification

Before ordering, compare the installed gauge to this listing:

• compound vacuum/pressure range and units

• positive pressure requirement near the +9 bar lane

• 1/4 in NPT male thread

• bottom/lower connection location

• 4 in dial clearance and mounting space

• service temperature and process media

• machine model and data plate

• service manual or exploded-view reference

• photos of the removed or installed gauge

Warnings & Restrictions

• Not an OEM Firbimatic/FMB part.

• Not cleaned for oxygen service.

• Not hazardous-location rated.

• Calibration certificate not included.

• Prop 65 warning should be reviewed against final product evidence when the purchasing path or manufacturer data changes.

Aftermarket Vacuum Gauge -1/0 Bar | 1/4 in NPT Bottom

Aftermarket Vacuum Gauge -1/0 Bar | 1/4 in NPT Bottom is a liquid-filled industrial vacuum gauge selected as an aftermarket replacement option for verified dry-cleaning still and distillation vacuum-gauge service.

This listing is intended for customers comparing the installed gauge to the FMB / Firbimatic 0804011 style vacuum manometer lane. It is not an OEM FMB, Firbimatic, Union, Realstar, or Sovrana part. It should be ordered only after confirming the installed gauge range, connection size, thread type, connection location, dial clearance, and machine/service-manual path.

Technical Specifications

• Component type: industrial vacuum gauge / vacuum manometer replacement option

• Gauge range: 30 in Hg to 0

• Secondary range: -1 to 0 bar

• Connection size: 1/4 in

• Connection type: NPT

• Connection gender: male

• Connection location: bottom / lower

• Nominal dial size: 2 1/2 in

• Case diameter reference: about 2.65 in

• Case depth reference: about 1.2 in

• Case material: stainless steel

• Lens material: polycarbonate

• Socket / sensor / wetted material: copper alloy / copper

• Fill liquid: glycerin / liquid-filled case

• Vibration resistance: liquid-filled

• Accuracy: +/-2-1-2%

• Accuracy grade: ASME B40.100 Grade A

• Scale type: dual scale

• Includes: vent plug

• Calibration certificate: not included

• Oxygen service: not cleaned for oxygen service

• Hazardous-location rating: not rated

• Operating temperature reference: ambient -30 F to 180 F; process media 30 F to 160 F

Aftermarket Replacement Notes

This is an aftermarket industrial replacement option selected because the range, 1/4 in NPT male thread, bottom connection, liquid-filled case, stainless case, and polycarbonate lens line up well with common dry-cleaning vacuum-gauge replacement needs.

The liquid-filled/glycerin construction can help damp pointer movement in equipment areas where vibration or pulsation is present. The stainless case and polycarbonate lens make it a practical service replacement when the installed component specifications match.

This is not an OEM Firbimatic/FMB gauge and should not be treated as a universal replacement. Confirm the installed gauge is a vacuum-only gauge, not a compound vacuum/pressure gauge, and verify the range, thread, connection location, dial diameter, service temperature, panel/opening clearance, and machine model before ordering.

Part Numbers & Cross References

Corbett Equipment

• CE-GAU-VAC-254A

Compare Against

• FMB / Firbimatic 0804011

• Omnia / F60K gauge-plate reference lane: Tavola RC1271_A

• Aftermarket replacement option only where the installed component and service requirements support this gauge configuration

Related Parts To Verify Separately

• 0804009 / A15572 is a separate vacuum/pressure manometer lane with positive pressure range and should not be replaced with this vacuum-only gauge.

• Center-back/rear connection gauges should be ordered only when the installed part uses a rear connection.

• Pressure-only gauges should not be used where vacuum indication is required.

Machine Fitment

Master Manufacturer / Model Lineage

Use this aftermarket gauge only as a verified replacement candidate for machines whose installed gauge matches the source gauge lane, connection location, range, and service requirements. Corbett Equipment treats FMB / Firbimatic as the master builder lineage, with Union, Realstar, and other sister/derivative families researched from model-lineage evidence and verified against the installed component.

FMB / Firbimatic Machine Models And Master Families

Potential reference families include Omnia / F60K, EcoGreen, EcoGreen SM / AM-prefix machines, EcoPro / ECOPRO, Saver, EcoLine, F-series machines, 9 Series KWL / PERC, Vortex, Axial, Petite, Nevada, Hydro-Vac, Hydro-Chill, Tri-Flow, Smart-10, SecureLock, and recovered numeric FMB / Firbimatic model families where the installed gauge range, connection, mounting, and service-manual path confirm this gauge lane.

Union Machine Models And Derivative Families

Union derivative references may include HXP8018C, L840, P840, HL / HP / HXL families, HL-780, HL-840, HL-850, HL-860, HL-880, HL-890, L740S, L740, HL740, L750, RS-102, RS-122, and RS-152 where the installed gauge and service documentation confirm the same range and connection requirements.

Realstar Machine Models And Derivative Families

Realstar derivative references may include KM / KT and RKM families such as KM315, KM343, KM403, KM503, KM703, KM803, KT215, KT343, KT403, KT503, RKM36, RKM340, and RKM400 where the installed gauge and service documentation confirm the same range and connection requirements.

Sovrana And Other Derivative References

Treat Sovrana and other derivative references as verification-required lanes unless the installed machine data plate, manual, or removed gauge confirms the exact gauge range, connection size, and connection location.

Manual / Gauge-Plate Source Reference

Omnia / F60K Tavola RC1271_A shows the OEM gauge family used for comparison and verification.

Ordering Verification

Before ordering, compare the installed gauge to this listing:

• gauge range and units

• vacuum-only versus compound vacuum/pressure function

• 1/4 in NPT male thread

• bottom/lower connection location

• dial diameter and panel/opening clearance

• service temperature and process media

• machine model and data plate

• service manual or exploded-view reference

• photos of the removed or installed gauge

Warnings & Restrictions

• Not an OEM Firbimatic/FMB part.

• Not cleaned for oxygen service.

• Not hazardous-location rated.

• Calibration certificate not included.

• Prop 65 warning should be reviewed against final product evidence when the purchasing path or manufacturer data changes.

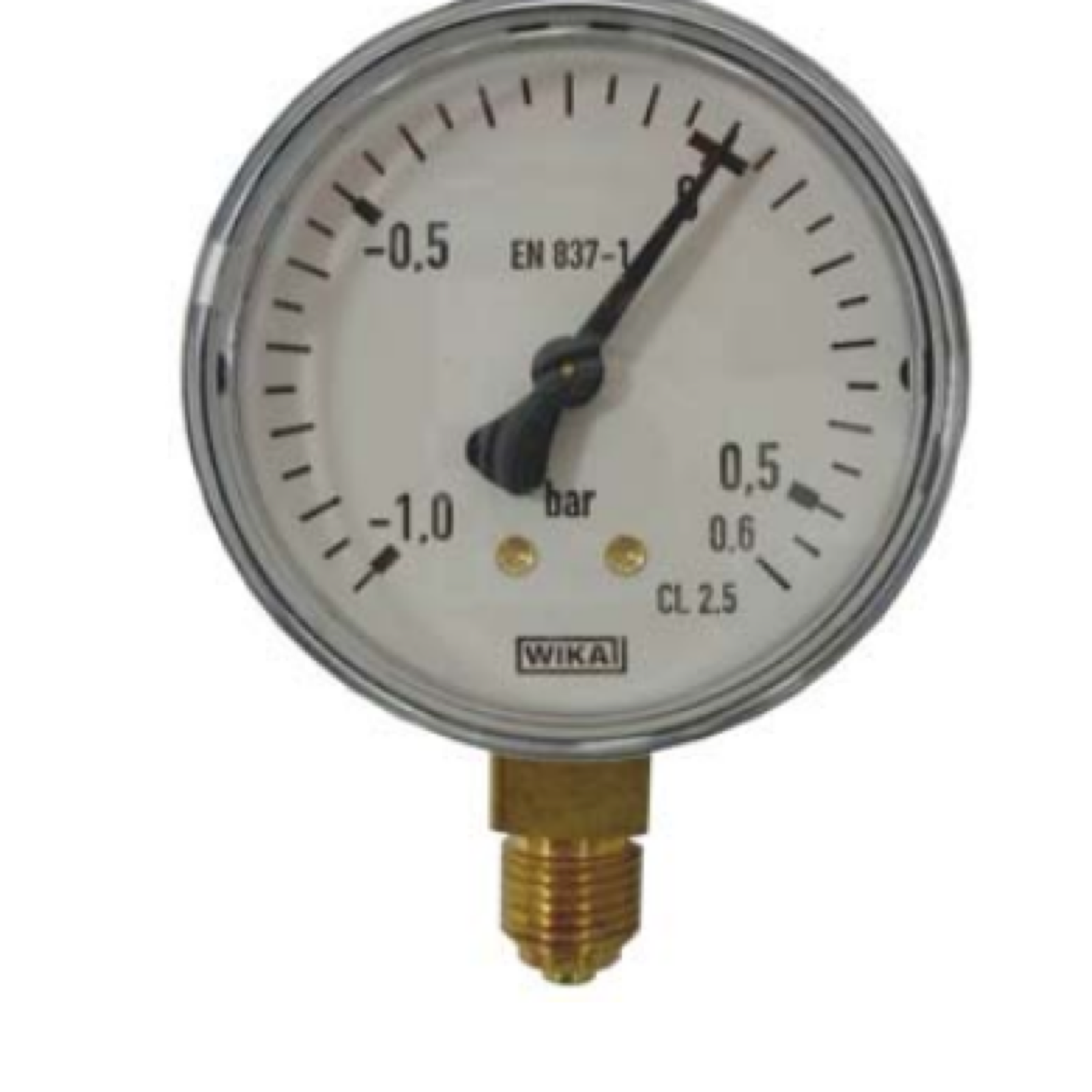

Vacuum Manometer -1/+0.6 Bar | FMB / Firbimatic 0804011

Vacuum Manometer -1/+0.6 Bar | FMB / Firbimatic 0804011 is an OEM-reference vacuum manometer for verified FMB / Firbimatic dry-cleaning still, distillation, and vacuum-service applications where the installed gauge and service manual match part 0804011.

This listing is built from the Omnia / F60K manual plate evidence and Corbett historical price-list records. Confirm the installed gauge range, bottom connection, face markings, machine manual, and service location before ordering.

Technical Specifications

• Component type: vacuum manometer / dry-cleaning machine gauge

• Primary part number: 0804011

• Gauge range shown in source plate: -1/+0.6 BAR

• Manual source: Omnia / F60K general spare-parts gauge plate, Tavola RC1271_A

• Service area: still, distillation, vacuum, and machine instrumentation service where the manual and installed part match

• Evidence status: manual-backed product candidate with historical price-list support

• Condition: new replacement part when stocked; verify current availability before ordering

Part Numbers & Cross References

Use these references for identification and verification. Do not substitute another gauge by appearance alone.

FMB / Firbimatic

• 0804011

• -1/+0.6 BAR vacuum-manometer plate reference on Tavola RC1271_A

Related Gauge Family References

• 0406002: 0-12 BAR gauge shown on the same source plate

• 0804001: 0-4 BAR gauge shown on the same source plate

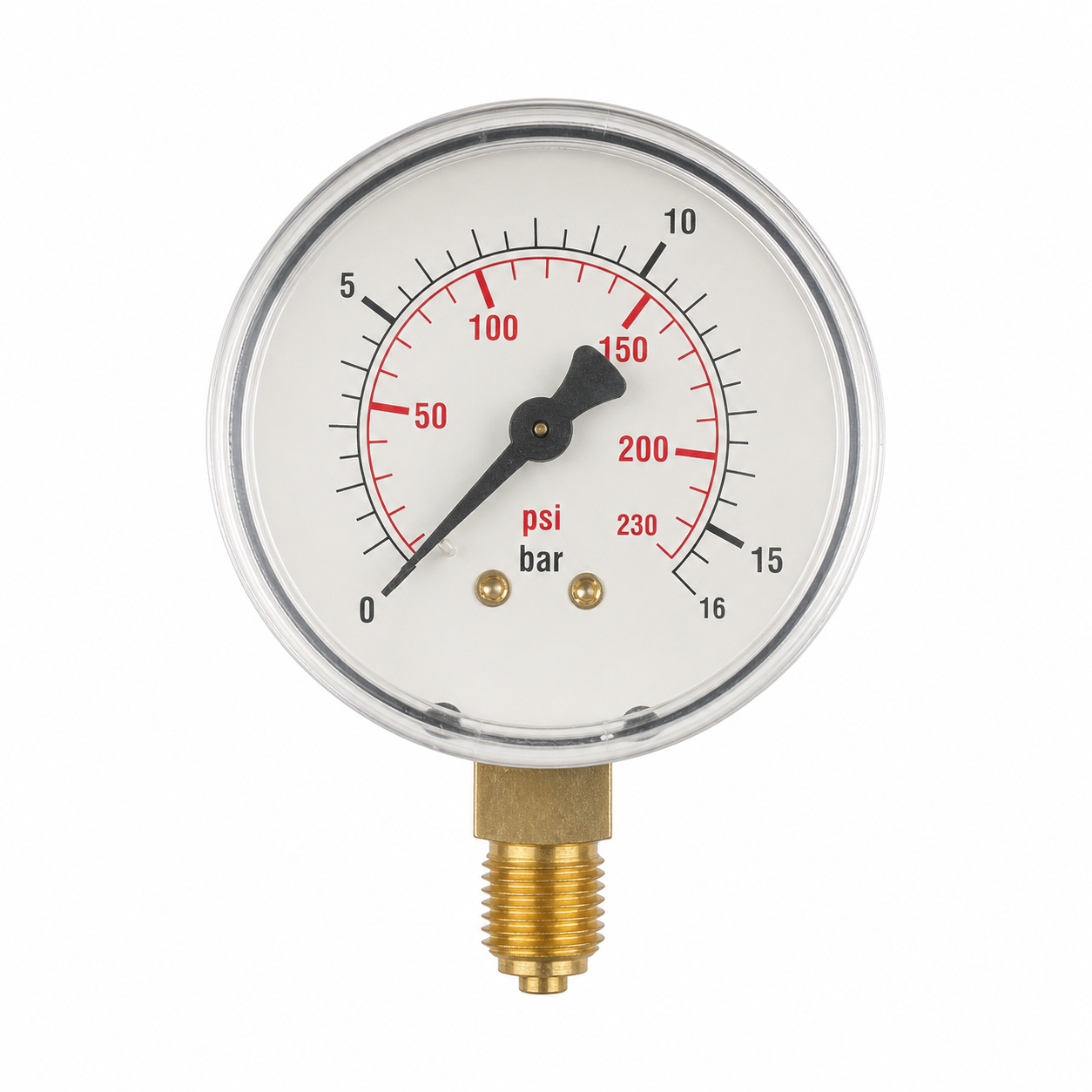

• 0804012: 0-16 BAR gauge shown on the same source plate

• 0804013: 0-250 BAR gauge/manual-plate reference; keep separate from the current pressure-stat catalog conflict

• 0804017: 0-10 BAR gauge shown on the same source plate

• 0804018: 0-4 BAR gauge shown on the same source plate

Machine Fitment

Machine fitment for Vacuum Manometer -1/+0.6 Bar | FMB / Firbimatic 0804011 is organized through Corbett Equipment master manufacturer and model-lineage evidence. Use this section as a fitment-reference map, then verify the installed gauge range, face markings, bottom connection, thread size, dial size, mounting clearance, machine data plate, service manual, and service location before ordering.

Master manufacturer / model lineage

Corbett Equipment and FXT Factory records treat FMB / Firbimatic as the master machine-model lineage for this gauge/manometer catalog family. Union, Realstar, and Sovrana references are derivative-reference families that must be matched through the installed component, manual table, and machine-specific service record.

FMB / Firbimatic machine models and master families

Direct manual-backed gauge source: Omnia, Omnia 60, OMNIA F60K, F60K, F60 K, F60 S.E., F60 SE, F 60.

EcoPro / ECOPRO family: ECOPRO 915, ECOPRO 915S, ECOPRO 918, ECOPRO 918S, ECOPRO AM, ECOPRO AM918.

Saver family: SAVER 35, SAVER 350, SAVER 35P, SAVER 350P, SAVER 40, SAVER 40P, SAVER 80SM, SAVER HYDROCARBON.

F-series / 18 kg family: F AS 18 LT2, F AS 18 ST2, F18 LT2, F18 LT3, F18 ST2.

EcoGreen family: EcoGreen, EcoGreen Petite, EcoGreen 35, EcoGreen 40, L2118, EcoGreen 50, L2120, EcoGreen 60, L2125, EcoGreen 80, L2132, L2140, EcoGreen 95, EcoGreen 95SM, EcoGreen DC, EcoGreen S50, S2118, S2120, EcoGreen Advance.

EcoGreen SM / AM-prefix soft-mount family: AM918, AM925, AM940, AM2118, S2118, EcoGreen 40SM, EcoGreen 60SM, EcoPro 40SM, EcoPro 60SM.

EcoLine family: EcoLine 35, ECOLINE, ECOLINE 16.

9 Series and solvent-family lineage: 9 Series KWL, EP35, EP35 F.D., EP40, EP 40, EP50, EP 50, EP60, EP 60, EP80, EP 80, EP95, EP 95, 9 Series PERC.

Vortex family: VORTEX 40, VORTEX 50, VORTEX 60, VORTEX 80, VORTEX 95, VORTEX L2018, VORTEX S2018, VORTEX PRIMARY, Vortex Petite, Vortex 40 Plus, Vortex 50 Plus, Vortex 80 Plus, Vortex 50 Plus Tandem, P40, P50.

Axial family: AXIAL 40, AXIAL 50, AXIAL 60, AXIAL 80, AXIAL 95, AXIAL 918, AXIAL 925, AXIAL-918.

Petite, Nevada, and recovered FMB reference families: PETITE 35, PETITE 40, Petite 35, Petite 40, 912L, 915L, NEVADA35, NEVADA70, Eco-15LT3, Eco-15LT-3, L 18, L-250, L750, P16, P1567, P1705, P6241, T1838.

System and feature lineage: Hydro-Vac, Hydro-Chill, Tri-Flow, Smart-10, SecureLock, Computer Smart+Combi KWL, Computer Smart+Combi PERC.

Recovered numeric model set: 035, 05, 068, 08, 09, 10, 100, 12, 120, 13, 130, 14, 15, 153, 16, 20, 208, 220, 23, 24, 25, 30, 306, 310, 32, 338, 340, 35, 36, 37, 40, 410, 45, 465, 473, 50, 520, 60, 600, 63, 70, 71, 724, 765, 80, 895, 896, 918, 95.

Union machine models and derivative families

Core Union derivative references: HXP8018C, L840, P840.

HL / HP / HXL family references: HL-780, HL780, HL-840, HL840K, HP840K, HXL8018K, HL-850, HL850K, HP850K, HL-860, HL860K, HP860K, HXL8025K, HL-880, HL880K, HXL8032K, HL-890, HL890K.

L / RS family references: L740S, L740, HL740, L750, RS-102, RS-122, RS-152.

Verify Union fitment by matching the installed gauge/manometer, gauge range, Union manual table, FMB / Firbimatic master-model relationship, connection details, and service location before treating this derivative lane as a confirmed application.

Realstar machine models and derivative families

KM / KT derivative references: KM315, KM315-K4, KT215, KT215-K4, KM343, KM343-K4, KT343, KT343-K4.

Larger KM / KT references: KM403, KM403-K4, KT403, KT403-K4, KM503, KM503-K4, KT503, KM703, KM703-K4, KM803, KM803-K4.

RKM references: KM-36 / RKM36, KM-340 / RKM340, KM-400 / RKM400.

Verify Realstar fitment by matching the installed gauge/manometer, gauge range, Realstar manual table, FMB / Firbimatic master-model relationship, connection details, and service location before treating this derivative lane as a confirmed application.

Sovrana and other derivative references

Sovrana and other derivative-model references may appear in Corbett lineage records, but no exact Sovrana gauge/manometer model list is confirmed for 0804011 in the current source index. Treat this as a research lane only unless the installed component, machine manual, and part-number path confirm the application.

Factory / model-lineage reference: HC7-18-CL, HC7-18-CLM, HC7-18-CS, HC8-18-CL, HC8-18-CLM, HC8-18-CS.

Manual / gauge-plate source reference: Omnia / F60K Tavola RC1271_A.

Ordering Verification

• Match the installed gauge part number, face range, bottom connection, thread size, dial size, and mounting clearance.

• Compare the machine data plate and manual table against the installed gauge before ordering.

• Do not substitute this gauge with 0804012, 0804013, or the domestic aftermarket gauge lane unless range, connection, mount, and service conditions are confirmed.

• Send photos of the old gauge, machine tag, and manual reference if fitment is uncertain.

Vacuum Manometer -1/+9 Bar | FMB / Firbimatic 0804009

Vacuum Manometer -1/+9 Bar | FMB / Firbimatic 0804009 is an OEM-reference vacuum manometer for verified FMB / Firbimatic dry-cleaning still, distillation, and vacuum-service applications where the installed gauge and service manual match part 0804009.

This listing is built from the Omnia / F60K manual plate evidence and Corbett historical price-list records. Confirm the installed gauge range, bottom connection, face markings, machine manual, and service location before ordering.

Technical Specifications

• Component type: vacuum manometer / dry-cleaning machine gauge

• Primary part number: 0804009

• Old FMB / Firbimatic reference: A15572

• Gauge range shown in source plate: -1/+9 BAR

• Manual source: Omnia / F60K general spare-parts gauge plate, Tavola RC1271_A

• Service area: still, distillation, vacuum, and machine instrumentation service where the manual and installed part match

• Evidence status: manual-backed product candidate with historical price-list support

• Condition: new replacement part when stocked; verify current availability before ordering

Part Numbers & Cross References

Use these references for identification and verification. Do not substitute another gauge by appearance alone.

FMB / Firbimatic

• 0804009

• Old FMB / Firbimatic reference: A15572

• -1/+9 BAR vacuum-manometer plate reference on Tavola RC1271_A

Related Gauge Family References

• 0406002: 0-12 BAR gauge shown on the same source plate

• 0804001: 0-4 BAR gauge shown on the same source plate

• 0804012: 0-16 BAR gauge shown on the same source plate

• 0804013: 0-250 BAR gauge/manual-plate reference; keep separate from the current pressure-stat catalog conflict

• 0804017: 0-10 BAR gauge shown on the same source plate

• 0804018: 0-4 BAR gauge shown on the same source plate

Machine Fitment

Machine fitment for Vacuum Manometer -1/+9 Bar | FMB / Firbimatic 0804009 is organized through Corbett Equipment master manufacturer and model-lineage evidence. Use this section as a fitment-reference map, then verify the installed gauge range, face markings, bottom connection, thread size, dial size, mounting clearance, machine data plate, service manual, and service location before ordering.

Master manufacturer / model lineage

Corbett Equipment and FXT Factory records treat FMB / Firbimatic as the master machine-model lineage for this gauge/manometer catalog family. Union, Realstar, and Sovrana references are derivative-reference families that must be matched through the installed component, manual table, and machine-specific service record.

FMB / Firbimatic machine models and master families

Direct manual-backed gauge source: Omnia, Omnia 60, OMNIA F60K, F60K, F60 K, F60 S.E., F60 SE, F 60.

EcoPro / ECOPRO family: ECOPRO 915, ECOPRO 915S, ECOPRO 918, ECOPRO 918S, ECOPRO AM, ECOPRO AM918.

Saver family: SAVER 35, SAVER 350, SAVER 35P, SAVER 350P, SAVER 40, SAVER 40P, SAVER 80SM, SAVER HYDROCARBON.

F-series / 18 kg family: F AS 18 LT2, F AS 18 ST2, F18 LT2, F18 LT3, F18 ST2.

EcoGreen family: EcoGreen, EcoGreen Petite, EcoGreen 35, EcoGreen 40, L2118, EcoGreen 50, L2120, EcoGreen 60, L2125, EcoGreen 80, L2132, L2140, EcoGreen 95, EcoGreen 95SM, EcoGreen DC, EcoGreen S50, S2118, S2120, EcoGreen Advance.

EcoGreen SM / AM-prefix soft-mount family: AM918, AM925, AM940, AM2118, S2118, EcoGreen 40SM, EcoGreen 60SM, EcoPro 40SM, EcoPro 60SM.

EcoLine family: EcoLine 35, ECOLINE, ECOLINE 16.

9 Series and solvent-family lineage: 9 Series KWL, EP35, EP35 F.D., EP40, EP 40, EP50, EP 50, EP60, EP 60, EP80, EP 80, EP95, EP 95, 9 Series PERC.

Vortex family: VORTEX 40, VORTEX 50, VORTEX 60, VORTEX 80, VORTEX 95, VORTEX L2018, VORTEX S2018, VORTEX PRIMARY, Vortex Petite, Vortex 40 Plus, Vortex 50 Plus, Vortex 80 Plus, Vortex 50 Plus Tandem, P40, P50.

Axial family: AXIAL 40, AXIAL 50, AXIAL 60, AXIAL 80, AXIAL 95, AXIAL 918, AXIAL 925, AXIAL-918.

Petite, Nevada, and recovered FMB reference families: PETITE 35, PETITE 40, Petite 35, Petite 40, 912L, 915L, NEVADA35, NEVADA70, Eco-15LT3, Eco-15LT-3, L 18, L-250, L750, P16, P1567, P1705, P6241, T1838.

System and feature lineage: Hydro-Vac, Hydro-Chill, Tri-Flow, Smart-10, SecureLock, Computer Smart+Combi KWL, Computer Smart+Combi PERC.

Recovered numeric model set: 035, 05, 068, 08, 09, 10, 100, 12, 120, 13, 130, 14, 15, 153, 16, 20, 208, 220, 23, 24, 25, 30, 306, 310, 32, 338, 340, 35, 36, 37, 40, 410, 45, 465, 473, 50, 520, 60, 600, 63, 70, 71, 724, 765, 80, 895, 896, 918, 95.

Union machine models and derivative families

Core Union derivative references: HXP8018C, L840, P840.

HL / HP / HXL family references: HL-780, HL780, HL-840, HL840K, HP840K, HXL8018K, HL-850, HL850K, HP850K, HL-860, HL860K, HP860K, HXL8025K, HL-880, HL880K, HXL8032K, HL-890, HL890K.

L / RS family references: L740S, L740, HL740, L750, RS-102, RS-122, RS-152.

Verify Union fitment by matching the installed gauge/manometer, gauge range, Union manual table, FMB / Firbimatic master-model relationship, connection details, and service location before treating this derivative lane as a confirmed application.

Realstar machine models and derivative families

KM / KT derivative references: KM315, KM315-K4, KT215, KT215-K4, KM343, KM343-K4, KT343, KT343-K4.

Larger KM / KT references: KM403, KM403-K4, KT403, KT403-K4, KM503, KM503-K4, KT503, KM703, KM703-K4, KM803, KM803-K4.

RKM references: KM-36 / RKM36, KM-340 / RKM340, KM-400 / RKM400.

Verify Realstar fitment by matching the installed gauge/manometer, gauge range, Realstar manual table, FMB / Firbimatic master-model relationship, connection details, and service location before treating this derivative lane as a confirmed application.

Sovrana and other derivative references

Sovrana and other derivative-model references may appear in Corbett lineage records, but no exact Sovrana gauge/manometer model list is confirmed for 0804009 in the current source index. Treat this as a research lane only unless the installed component, machine manual, and part-number path confirm the application.

Factory / model-lineage reference: HC7-18-CL, HC7-18-CLM, HC7-18-CS, HC8-18-CL, HC8-18-CLM, HC8-18-CS.

Manual / gauge-plate source reference: Omnia / F60K Tavola RC1271_A.

Ordering Verification

• Match the installed gauge part number, face range, bottom connection, thread size, dial size, and mounting clearance.

• Compare the machine data plate and manual table against the installed gauge before ordering.

• Do not substitute this gauge with 0804012, 0804013, or the domestic aftermarket gauge lane unless range, connection, mount, and service conditions are confirmed.

• Send photos of the old gauge, machine tag, and manual reference if fitment is uncertain.

Carbon Steel Gauge Syphon | 1/4 in MNPT x 1/4 in MNPT is a schedule 80 carbon steel pressure-gauge syphon for compatible steam and high-temperature gauge-protection service. This listing is written as a technical Corbett Equipment catalog listing for dry-cleaning shops, commercial utility service, equipment maintenance, water treatment, refrigeration/HVACR service, pneumatic systems, steam/gauge service, and industrial maintenance where the installed component matches the specifications below.

Use this listing only after comparing the installed part, physical dimensions, connection style, material, operating conditions, and machine or system documentation.

Technical Specifications

• Component type: pressure-gauge siphon / syphon / pigtail.

• Material: steel.

• Gauge case material reference: schedule 80 carbon steel.

• Connection path: 1/4 in male x 1/4 in male NPT.

• Connection size: 1/4 in.

• Connection type: NPT.

• Connection thread size: 1/4 in.

• Tube length: 4-9/16 in.

• Tube style: pigtail.

• Construction: seamless.

• Maximum internal pressure: 1,650 psi.

• Pressure/temperature reference: 1,650 psi at 630 Degrees F.

• Compatible process media: steam.

• Application: steam installations and applications above 100 Degrees F.

• Standards reference: CRN registered.

• NSF certified: yes.

• Corrosion resistance: not corrosion resistant.

• Ordering check: verify thread orientation, installed clearance, pressure, temperature, media, code/service requirements, and gauge compatibility before ordering.

Related Parts & Compatibility Notes

• Do not substitute for brass plumbing fittings, refrigeration adapters, or the pressure gauge itself.

• Use only where the installed gauge assembly requires a 1/4 in NPT steel pigtail syphon for steam or high-temperature service.

Warnings & Restrictions

• This steel syphon is not corrosion resistant; verify process media, environment, and corrosion exposure before installation.

• Use qualified service personnel and confirm code, pressure, temperature, steam-service, and gauge-protection requirements before installation.

Machine Fitment & Industrial Use

Use for compatible steam and high-temperature pressure-gauge protection where the installed gauge connection and process conditions match the listed specifications.

For dry-cleaning equipment, verify against the actual machine, valve panel, boiler or water-treatment system, gauge assembly, filtration system, utility line, pneumatic circuit, refrigeration service port, or service hose before ordering. If the product is being used outside dry cleaning, confirm compatibility with the application and operating conditions before installation.

Installation & Ordering Verification

• Compare the product photo, installed component, size, connection style, and service location before ordering.

• Confirm pressure, flow, temperature, material, chemical exposure, media compatibility, clearance, and mounting for the actual system.

• Use qualified service personnel when installing pressure, steam, refrigeration, water, electrical, pneumatic, or equipment-control components.

• Send photos of the installed part, machine tag, and service location if fitment is uncertain.

Pressure Gauge 0-16 Bar / 0-230 PSI | FMB 0804012

Pressure Gauge 0-16 Bar / 0-230 PSI | FMB 0804012 is a pressure-gauge listing for verified FMB / Firbimatic dry-cleaning machine service where the installed gauge and service manual match part 0804012.

This listing is built from the Omnia / F60K manual gauge plate, Corbett historical photo records, the old Firbimatic reference A1711, and the current front/back product photos supplied for this part. The public specifications should be verified against the installed machine before ordering.

Technical Specifications

• Component type: pressure gauge / machine instrumentation gauge

• Primary part number: 0804012

• Old FMB / Firbimatic reference: A1711

• Gauge range: 0-16 bar

• Gauge range: 0-230 PSI

• Dial face: dual psi / bar scale

• Connection: bottom / lower male threaded connection

• Connection reference from historical Corbett photo label: 1/4 in MPT bottom connection

• Manual source: Omnia / F60K general spare-parts gauge plate, Tavola RC1271_A

• Photo evidence: Corbett historical website photos plus current front/back product photos supplied July 13, 2026

• Service area: dry-cleaning machine pressure / nitrogen-meter / instrument service where the installed gauge and manual match this part number and range

• Condition: new replacement part when stocked; verify current inventory before ordering

Part Numbers & Cross References

Use these references for identification and verification. Do not substitute another gauge by appearance alone.

FMB / Firbimatic

• 0804012

• 080-4012

• Old reference: A1711

• 0-16 bar manual-plate pressure-gauge reference on Tavola RC1271_A

Corbett Equipment

• Corbett Equipment SKU / part reference: 0804012

• Historical listing reference: Gauge 0-230 PSI / 0-16 BAR, 1/4 in MPT bottom connection

• Old catalog wording may call this a nitrogen meter gauge; verify the installed application before ordering.

Related Parts To Verify Separately

• 0804009 / old A15572: -1/+9 bar vacuum manometer lane; not the same as this pressure-only gauge

• 0804011: -1/+0.6 bar vacuum manometer lane; not the same as this pressure-only gauge

• 0804013: 0-250 bar manual-plate gauge reference and a separate catalog-conflict lane; do not use as a proxy for this product

• 0804017: 0-10 bar related gauge plate reference; verify separately

• 0804001 and 0804018: 0-4 bar related gauge plate references; verify separately

• 0406002: 0-12 bar related gauge plate reference; verify separately

• Domestic aftermarket gauge options may be useful for some applications, but they must be verified separately for range, thread, connection location, dial size, and service conditions.

Machine Fitment

Machine fitment for Pressure Gauge 0-16 Bar / 0-230 PSI | FMB 0804012 is organized through Corbett Equipment master manufacturer and model-lineage evidence. Use this section as a fitment-reference map, then verify the installed gauge range, face markings, bottom connection, thread size, dial size, mounting clearance, machine data plate, service manual, and service location before ordering.

Master manufacturer / model lineage

Corbett Equipment and FXT Factory records treat FMB / Firbimatic as the master machine-model lineage for this gauge catalog family. Union, Realstar, and Sovrana references are derivative-reference families that must be matched through the installed component, manual table, and machine-specific service record.

FMB / Firbimatic machine models and master families

Direct manual-backed gauge source: Omnia, Omnia 60, OMNIA F60K, F60K, F60 K, F60 S.E., F60 SE, F 60.

EcoPro / ECOPRO family: ECOPRO 915, ECOPRO 915S, ECOPRO 918, ECOPRO 918S, ECOPRO AM, ECOPRO AM918.

Saver family: SAVER 35, SAVER 350, SAVER 35P, SAVER 350P, SAVER 40, SAVER 40P, SAVER 80SM, SAVER HYDROCARBON.

F-series / 18 kg family: F AS 18 LT2, F AS 18 ST2, F18 LT2, F18 LT3, F18 ST2.

EcoGreen family: EcoGreen, EcoGreen Petite, EcoGreen 35, EcoGreen 40, L2118, EcoGreen 50, L2120, EcoGreen 60, L2125, EcoGreen 80, L2132, L2140, EcoGreen 95, EcoGreen 95SM, EcoGreen DC, EcoGreen S50, S2118, S2120, EcoGreen Advance.

EcoGreen SM / AM-prefix soft-mount family: AM918, AM925, AM940, AM2118, S2118, EcoGreen 40SM, EcoGreen 60SM, EcoPro 40SM, EcoPro 60SM.

EcoLine family: EcoLine 35, ECOLINE, ECOLINE 16.

9 Series and solvent-family lineage: 9 Series KWL, EP35, EP35 F.D., EP40, EP 40, EP50, EP 50, EP60, EP 60, EP80, EP 80, EP95, EP 95, 9 Series PERC.

Vortex family: VORTEX 40, VORTEX 50, VORTEX 60, VORTEX 80, VORTEX 95, VORTEX L2018, VORTEX S2018, VORTEX PRIMARY, Vortex Petite, Vortex 40 Plus, Vortex 50 Plus, Vortex 80 Plus, Vortex 50 Plus Tandem, P40, P50.

Axial family: AXIAL 40, AXIAL 50, AXIAL 60, AXIAL 80, AXIAL 95, AXIAL 918, AXIAL 925, AXIAL-918.

Petite, Nevada, and recovered FMB reference families: PETITE 35, PETITE 40, Petite 35, Petite 40, 912L, 915L, NEVADA35, NEVADA70, Eco-15LT3, Eco-15LT-3, L 18, L-250, L750, P16, P1567, P1705, P6241, T1838.

System and feature lineage: Hydro-Vac, Hydro-Chill, Tri-Flow, Smart-10, SecureLock, Computer Smart+Combi KWL, Computer Smart+Combi PERC.

Recovered numeric model set: 035, 05, 068, 08, 09, 10, 100, 12, 120, 13, 130, 14, 15, 153, 16, 20, 208, 220, 23, 24, 25, 30, 306, 310, 32, 338, 340, 35, 36, 37, 40, 410, 45, 465, 473, 50, 520, 60, 600, 63, 70, 71, 724, 765, 80, 895, 896, 918, 95.

Union machine models and derivative families

Core Union derivative references: HXP8018C, L840, P840.

HL / HP / HXL family references: HL-780, HL780, HL-840, HL840K, HP840K, HXL8018K, HL-850, HL850K, HP850K, HL-860, HL860K, HP860K, HXL8025K, HL-880, HL880K, HXL8032K, HL-890, HL890K.

L / RS family references: L740S, L740, HL740, L750, RS-102, RS-122, RS-152.

Verify Union fitment by matching the installed gauge, gauge range, Union manual table, FMB / Firbimatic master-model relationship, connection details, and service location before treating this derivative lane as a confirmed application.

Realstar machine models and derivative families

KM / KT derivative references: KM315, KM315-K4, KT215, KT215-K4, KM343, KM343-K4, KT343, KT343-K4.

Larger KM / KT references: KM403, KM403-K4, KT403, KT403-K4, KM503, KM503-K4, KT503, KM703, KM703-K4, KM803, KM803-K4.

RKM references: KM-36 / RKM36, KM-340 / RKM340, KM-400 / RKM400.

Verify Realstar fitment by matching the installed gauge, gauge range, Realstar manual table, FMB / Firbimatic master-model relationship, connection details, and service location before treating this derivative lane as a confirmed application.

Sovrana and other derivative references

Sovrana and other derivative-model references may appear in Corbett lineage records, but no exact Sovrana pressure-gauge model list is confirmed for 0804012 in the current source index. Treat this as a research lane only unless the installed component, machine manual, and part-number path confirm the application.

Factory / model-lineage reference: HC7-18-CL, HC7-18-CLM, HC7-18-CS, HC8-18-CL, HC8-18-CLM, HC8-18-CS.

Manual / gauge-plate source reference: Omnia / F60K Tavola RC1271_A.

Ordering Verification

• installed gauge face markings and pressure range

• part number 0804012, old reference A1711, or matching manual plate path

• 1/4 in MPT bottom connection and thread compatibility

• bottom/lower connection location

• dial diameter, panel clearance, and mounting space

• machine model and data plate

• service manual, exploded-view plate, or original installed part

• whether the gauge is being used as a pressure-only, nitrogen-meter, or other machine instrumentation gauge

• photos of the removed or installed gauge if fitment is uncertain

Pressure gauges are not universal. Confirm range, thread, connection location, mounting clearance, service media, machine model, and manual path before ordering or installing.
